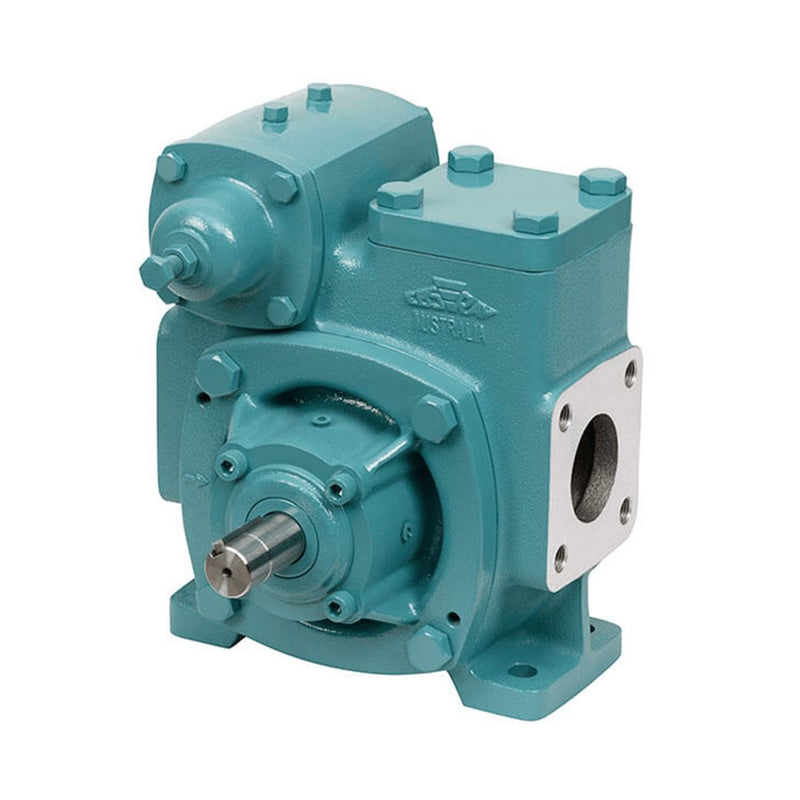

EBSRAYV Series Sliding Vane Pumps

SKU: EbsrayV

EBSRAYV Series Sliding Vane Pumps

Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
EBSRAYV Series Sliding Vane Pumps - GO Industrial - EbsrayV

EBSRAYV Series Sliding Vane Pumps

Details

They are ideally suited for the transfer of Diesel, Petrol, LPG, Propane, Butane and DME, and have been specifically designed and precision built to optimise all the advantages of the sliding vane working principle.

The Ebsray V Series Sliding Vane Pump automatically self-compensates for vane wear to ensure the vane pump will maintain its superior vapour handling and operational efficiency over a long service life. In addition, these sliding vane pumps feature a smooth output flow that ensures quiet operation within the NPSH range.

Materials of Construction

Casing

  • Cast iron
  • Ductile iron
  • Aluminium
  • Steel

Rotors

  • Cast iron
  • Ductile iron

Vanes

  • Synthetic
  • Univane

Liner

  • Cast-iron toughened

Shaft

  • High-tensile alloy steel
  • Stainless steel

NOTE: Special materials to specification

Features

  • Replaceable wearing components
  • Positive axial location of rotor
  • Balanced mechanical seals, shaft lip seals
  • Multi-porting configurations
  • Double-ended shaft (some models)
  • Pressure Relief Valve integral, adjustable
  • Lightweight or standard
  • Compact and robust

    • Ebsrayv Series Sliding Vane Pumps

    Overview

    Ebsray V Series Sliding Vane Pumps, from GO Industrial, are highly efficient, self-priming positive displacement pumps for low to medium viscosity lubricating and non-lubricating liquids.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Ebsray V15
    • GO Data Sheet Ebsray V20
    • GO Data Sheet Ebsray V25
    • GO Data Sheet Ebsray V30
    • GO Data Sheet Ebsray V35
    • GO Data Sheet Ebsray V40
    • GO Data Sheet Ebsray V6000
    • GO Manual Ebsray V15
    • GO Manual Ebsray V20 and V30 Type 70
    • GO Manual Ebsray V20 Types 21-24
    • GO Manual Ebsray V20 Types 25 26 29
    • GO Manual Ebsray V25 Type 63 and 64
    • GO Manual Ebsray V25 Types 83 and 84
    • GO Manual Ebsray V30 and V35 Types 23 24 27
    • GO Manual Ebsray V40
    • GO Manual Ebsray V6000

      Features

    • Replaceable wearing components
    • Positive axial location of rotor
    • Balanced mechanical seals, shaft lip seals
    • Multi-porting configurations
    • Double-ended shaft (some models)
    • Pressure Relief Valve integral, adjustable
    • Lightweight or standard
    • Compact and robust
