Overview

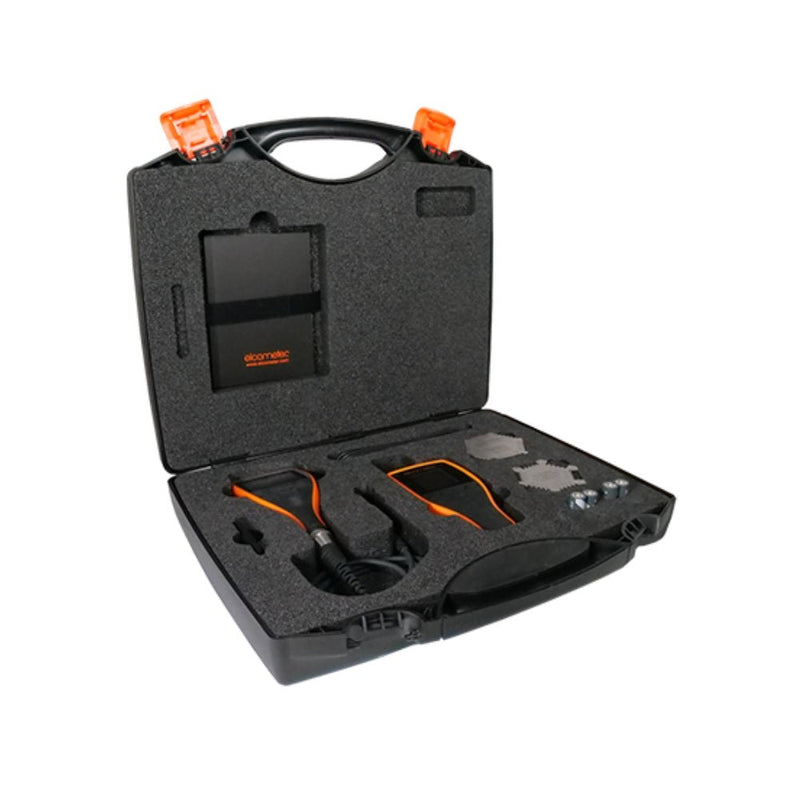

This comprehensive coating inspection kit is specifically designed to meet the three principal requirements for inspecting intumescent and other structural steel coatings: climate, wet film, and dry film thickness.
Featuring Elcometer’s top-of-the-range inspection gauges, the Elcometer Structural Steel Coatings Inspection Kit can be used in combination with other Elcometer inspection products covering surface profile, adhesion, and porosity (available separately).
Ideal for ‘paperless’ quality assurance systems, the kits come complete with ElcoMaster® Data Management Software for professional reporting and analysis.
Available in 2 variations, where the Kit 2 features the Ferrous Ultra Scan Probe which significantly enhances reading speed and efficiency.
Elcometer Structural Steel Kit 1
- Elcometer 456 F Top Separate DFT Gauge
- Elcometer 319 Top Dewpoint Meter
- Elcometer 456 (Straight Probe – Scale 1) F1 Standard Probe, 0-1500µm
- Elcometer 112 Hexagonal Wet Film Comb: 25-3000µm
- Elcometer 112 Hexagonal Wet Film Comb: 3000-8750µm
- ElcoMaster® Data Management Software
Elcometer Structural Steel Kit 2
- Elcometer 456 F Top Separate DFT Gauge
- Elcometer 319 Top Dewpoint Meter
- Elcometer 456 F1 Scan Probe, 0-1500µm
- Elcometer 112 Hexagonal Wet Film Comb: 25-3000µm
- Elcometer 112 Hexagonal Wet Film Comb: 3000-8750µm
Features
Features
Elcometer 319 Dewpoint Meter
- The Elcometer 319 Dewpoint Meter meets International Standards including ISO 8502-4
- Supplied with a Calibration Certificate
- All readings are time & date stamped
- The Elcometer 319 Dew Point Meter has an easy to use menu-driven user interface in multiple languages
- Clear, illuminated display showing up to five user-defined parameters
- Arrow indicators show temperature trends
- Hold/freeze function allows manual readings to be reviewed before being added into the memory
- The Elcometer 319 Dewpoint Meter - Model T can be used as a hand-held dewpoint meter or as a remote data logging monitor
- Magnetic Surface Temperature Probe allows measurement of surface temperature during remote logging
- Liquid temperature probe transforms the gauge into a thermometer
Elcometer 456 Model T Ferrous Separate Coating Thickness Gauge
- Fast Coating Thickness Measurements
The Elcometer 456 Coating Thickness Gauge enhances efficiency by providing 70+ dry film thickness readings per minute (140+ per minute when using a scan probe). The Elcometer 456 mil gage has multiple calibration memories and alpha numeric batch identification.
- An Accurate Coating Thickness Gauge
Accuracy is key when taking coating thickness measurements, that's why the Elcometer 456 paint meter is designed to measure dry film thickness on smooth, rough, thin and curved surfaces to ±1% in accordance with National & International Standards.
- Powerful Memory & Data Output
The Elcometer 456 Coating Thickness Gauge stores up to 150,000 readings in 2,500 batches and has the ability to measure up to 31mm (1,220mils) of coating on metal substrates. Its USB and Bluetooth® data output make it compatible with ElcoMaster® Data Management Software for fast and accurate coating inspection reporting.
