FILL-RITE 1200 Series Pump Kit 12V DC 57lpm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

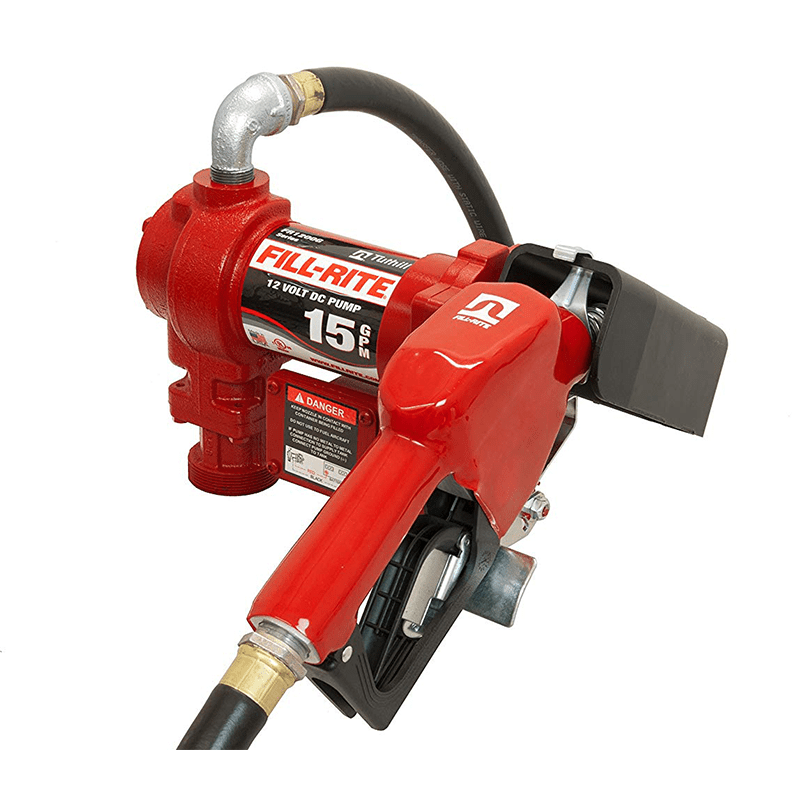

The Fill-Rite Heavy Duty 1200 Series 12V DC Pump Kit is a 57 LPM cast-iron rotary vane fuel transfer pump made in the USA and suitable for diesel and ULP. It is designed for petrol, diesel, biodiesel up to B20, E15, kerosene and mineral spirits. The 1/4 hp DC motor runs at 2,600 rpm, provides up to 11.3 m of discharge head and up to 2 m of suction lift on diesel, with a 20 amp maximum draw and a 30 minute duty cycle. Thermal overload protection guards against overheating, and the UL/cUL, ATEX and CE listed motor is backed by a two-year warranty. Selected kits add a 12 ft hose with static wire, an 807CL meter, a 5.5 m battery cable with clamps and a steel telescoping suction pipe.
Features
Flow Rate: Delivers up to 15 GPM (57 lpm).
Listings: UL/cUL listed for safe operation.
Fuel Compatibility: Handles diesel, petrol, kerosene, E15 and biodiesel up to BD20.
Warranty: Backed by a 2 year warranty.
Tank Mounting: 2 in threaded base for tank mounting.
Construction: Heavy duty cast iron housing with a cast bronze rotor and bronze rotary vanes.
Built-in Strainer: Built-in strainer protects the pump.
DC Motor: 1/4 hp DC motor at 2,600 rpm provides up to 11.3 m of discharge head and up to 2 m suction lift on diesel.
Duty Cycle: 20 amp maximum draw with a 30 minute duty cycle.
Thermal Protection: Thermal overload protection prevents the motor overheating during abnormal usage.
Static-Wire Hose: 12 ft (3.6 m) hose with static wire supplied with selected kits.

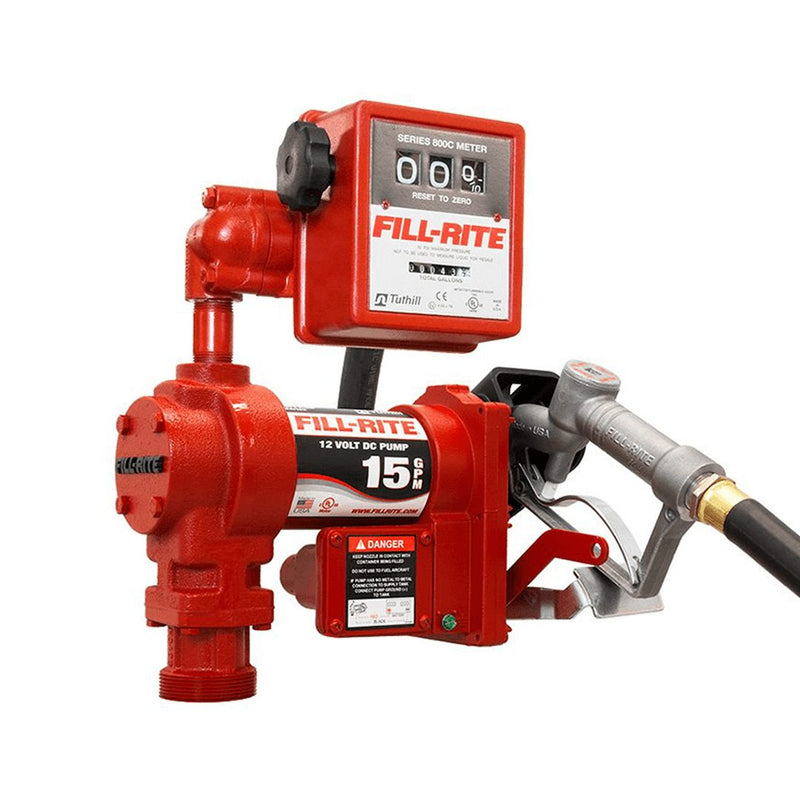

Flow Meter: 807CL meter supplied with selected kits.
Battery Cable: 5.5 m battery cable with clamps.
Suction Pipe: 500 mm to 870 mm steel telescoping suction pipe.
Included accessories
Manual
