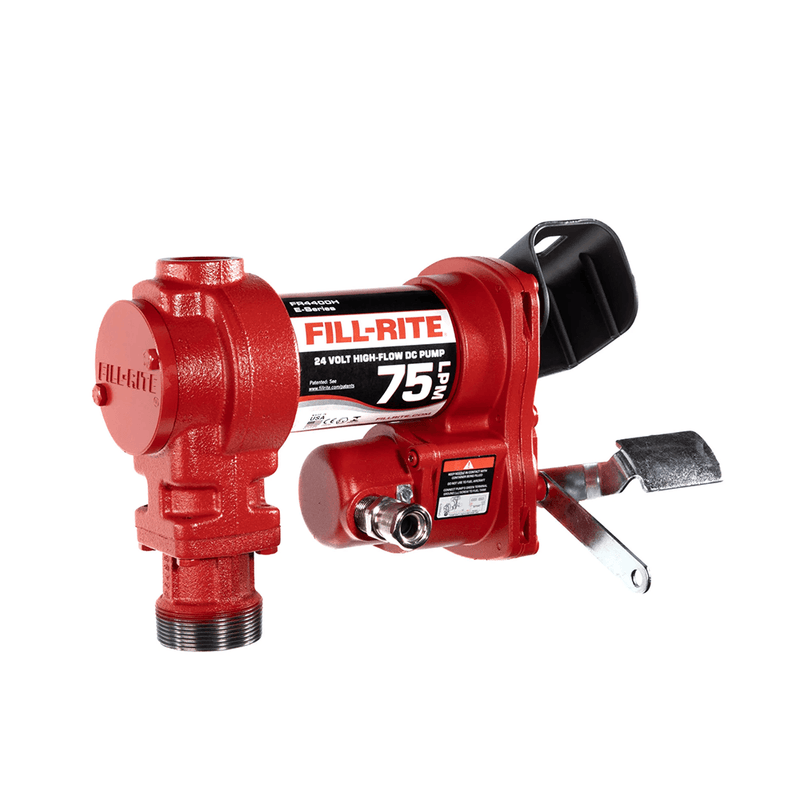

FILL-RITE 4400 Series Pump Range 24V DC 76lpm

SKU FR4405HE

$1,050.00 ex GST · $1,155.00 inc GST

Prices shown ex GST. Shipping calculated at checkout.

Model FR4405HE Pump, Battery Cable, Cable Gland FR4410H Pump, Telescopic Suction Tube, 3.6m x 25mm ID Hose, Manual Nozzle FR4411HL Pump, Telescopic Suction Tube, 900 Series Mechanical Meter, 3.6m x 25mm ID Hose, Manual Nozzle FR4411HLA-D Pump, Telescopic Suction Tube, 900 Series Digital Meter, 3.6m x 25mm ID Hose, Manual Nozzle FR4410HA Pump, Telescopic Suction Tube, 3.6m x 25mm ID Hose, Auto Nozzle FR4411HLA Pump, Telescopic Suction Tube, 900 Series Mechanical Meter, 3.6m x 25mm ID Hose, Auto Nozzle FR4411HLA-D Pump, Telescopic Suction Tube, 900 Series Electronic Meter, 3.6m x 25mm ID Hose, Auto Nozzle

Quantity

Contact for pricing

Found a better deal? Message us to price match.

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for high-volume refuelling in demanding industrial, mining, and earthmoving applications, the Fill-Rite 4400 Series 24V DC High-Flow Fuel Transfer Pump Range, from GO Industrial, combines a fast delivery speed with 24-volt battery compatibility.

Pumping up to an impressive 76 L/min (20 GPM), this heavy-duty rotary vane pump range reduces downtime when bulk-filling tractors, excavators, and transport fleets straight from service trucks or field tanks.

Engineered with commercial-grade cast-iron construction, a thermally protected IECEx approved explosion-proof motor, and an integrated bypass valve, the Fill-Rite 4400 Series Pump range is suitable for diesel, petrol, and kerosene dispensing without breaking a sweat.

Available at GO Industrial in number of complete plug and play package options—featuring a choice of mechanical or digital meter, durable discharge hose, manual or auto shut off nozzle, and a telescoping suction tube.

The Fill-Rite 4400 Series 24V DC 76lpm Pump Range the ultimate high-capacity refuelling setup for Aussie job sites.

Features

High-Flow 76 L/min Performance

Delivers rapid bulk fuel transfer up to 76 L/min (20 GPM), significantly reducing refueling downtime for heavy machinery, earthmoving equipment, and fleet vehicles.

Commercial 24V DC Power:

Purpose-built for 24-volt battery systems, making it ideal for direct wiring to dual-battery setups, heavy trucks, mobile bowsers, and service ute bodies.

Heavy-Duty Cast-Iron Construction:

Engineered with an ultra-rugged cast-iron housing and cast-bronze rotor with carbon rotary vanes to withstand extreme job site environments and harsh Australian weather.

Multi-Fuel Versatility:

Safely handles a wide variety of flammable and combustible fluids, including Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), and Mineral Spirits.

Flexible 180° Rotatable Junction Box:

Features an adjustable electrical junction box that rotates 180° for easy, hassle-free wiring in tight toolboxes or compact tank mountings.

Thermally Protected Motor:

Integrated thermal overload switch prevents the IECEx rated explosion-proof 1/4 HP motor from overheating, ensuring reliable, long-term operation under heavy continuous workloads.

Built-in Mesh Strainer:

Internal 20x20 mesh strainer filters out particulate contaminants before entering the pump chamber, protecting internal pump components and downstream equipment from wear.

Integrated DN50 (2") Bung Adapter:

Built-in DN50 (2") BSP M bung mount allows quick, direct installation onto standard fuel storage tanks and mobile transfer tanks.

Universal DN25 (1") BSP Connections:

Standard DN25 (1") BSP F inlet and outlet ports allow maximum flow rates and easy compatibility with standard fuel hoses, meters, and fittings.

Specifications

Warranty	Limited Lifetime Warranty
Flow Rate	Up to 76 L/min (20 GPM)
Operating Voltage	24V DC
Current Draw	13 Amps
Motor Power / Rating	1/4 HP, 2600 RPM
Duty Cycle	30 Minutes ON / 30 Minutes OFF
Inlet Port Size / Thread	DN25 (1") BSP F
Outlet Port Size / Thread	DN25 (1") BSP F
Tank Mount / Bung Adapter	DN50 (2") BSP M Integrated Bung
Max Operating Pressure	16 PSI (1.1 bar)
Max Suction Lift	Up to 2.4 m (8 ft)
Pump Mechanism	Rotary Vane (Cast Bronze Rotor, Carbon Vanes)
Housing Material	Heavy-Duty Cast Iron
Compatible Fluids	Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), Mineral Spirits
Thermal Protection	Yes (Automatic Thermal Reset)
Inlet Strainer	Built-in Stainless Steel Mesh (20 x 20 Mesh)
Certifications & Safety	UL/cUL Listed, ATEX / IECEx Certified Motor
Operating Temperature	-26°C to +40°C (-15°F to +104°F)
Bypass Valve	Integrated Internal Pressure Relief Valve
