FILL-RITE 900 Series Meter 23-151lpm

SKU R1901L1.5
Afterpay Zip PayPal LeaseGO
$829.09 ex GST · $912.00 inc GST
Prices shown ex GST. Shipping calculated at checkout.
Model
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

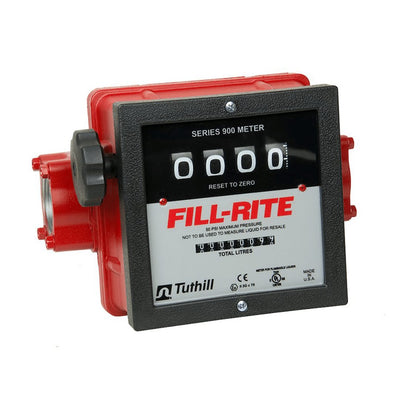

The Fill-Rite 900 Series is the high flow meter in the mechanical range. A nutating disc chamber counts the fluid as it passes, so there is no power supply, no battery and nothing electronic to fail. The four digit counter reads the batch up to 999.9 litres and zeroes from the knob on the side, and a separate non-resettable totaliser holds throughput for the life of the meter.

Three builds. The 901CL takes 1 inch BSP ports and the 901CL1.5 takes 1.5 inch. The 901CNL1.5 is nickel plated with fluorocarbon seals, which is the build for biodiesel to B20 and non-potable water. All three are litre register, rated to 50 psi and accurate to plus or minus 2 percent.

Ports are bolt-on flanges rather than threaded castings, and the cover assembly rotates to any of four positions, so one meter suits horizontal or vertical pipework. Calibration is a screwdriver job against a container of known volume, done anywhere between 23 and 151 litres a minute. The faceplate is marked not to be used to measure liquid for resale, so these record your own usage rather than serving as trade measurement.

Features
  • Nutating Disc Chamber: Passes rust and small debris that jam other meter types, so a little tank sediment does not stop the count.

  • Litre Register: Four digit counter reads the batch to 999.9 litres, with a separate non-resettable totaliser holding lifetime volume.

  • Cast Aluminium Body: Rated to 50 psi (3.5 bar) working pressure across an operating range of -26 to 66 °C.

  • Bolt-On Port Flanges: Fill-Rite lists flange kits in 1 inch and 1.5 inch, NPT or BSPT, so the port is a bolted joint rather than a thread cut into the casting.

  • Four Port Positions: The cover assembly rotates, so one meter suits horizontal or vertical pipework and either flow direction.

  • Field Calibration: A screwdriver and a container of known volume is all it takes, anywhere between 23 and 151 litres a minute.

  • Nickel Plated Option: The 901CNL1.5 runs fluorocarbon seals and adds biodiesel to B20 and non-potable water.

  • Marked And Rated: cULus Listed, CE and Ex II 2G c T6, made in the USA, backed by a two year warranty.
Included accessories

Supplied as a meter only, in the build you select.

  • One Fill-Rite 900 Series mechanical meter, litre register
  • Port flanges fitted in the size shown on the variant

Not included: hoses, nozzles, pipe fittings, adaptors and mounting hardware. Talk to us if you want the line specified with the meter.

Specifications
FLOW RANGE23-151 L/MIN | 6-40 G/MIN
ACCURACY+/- 2% of Reading
REPEATABILITY+/- 0.38%
MAXIMUM WORKING PRESSURE50 PSI | 3.5 BAR
OPERATING TEMPERATURE-26 to 66 °C | -15 to 150 °F
MEASURING PRINCIPLENutating Disc
REGISTERMechanical, Four Digit, Litres
BATCH CAPACITY999.9 L Before Rollover
TOTALISERNon-Resettable, Lifetime Volume
INLET AND OUTLET1 IN BSP Flange (901CL) | 1.5 IN BSP Flange (901CL1.5, 901CNL1.5)
PORT CONNECTIONBolt-On Flanges. Kits Listed in NPT and BSPT
BODY MATERIALCast Aluminium. Nickel Plated on the 901CNL1.5
INTERNAL CONSTRUCTIONStainless Steel, Steel, Polyester and PPS
SEALSFluorocarbon and Buna-N. Fluorocarbon Only on the Nickel Build
WETTED MATERIALSAluminium, Stainless Steel, Steel, Nickel, Ryton, PTFE, Polyester, Fluorocarbon, Buna-N
COMPATIBLE FLUIDSDiesel, Petrol, Kerosene, Mineral Turpentine, Heptane, Hexane. Nickel Build Adds Biodiesel to B20 and Non-Potable Water
MOUNTINGHorizontal or Vertical, Cover Rotates to Four Positions
POWER SOURCENone, Driven by the Fluid
PULSE OUTPUTNone
WEIGHT3.40 KG (901CL) | 3.54 KG (901CL1.5) | 3.36 KG (901CNL1.5)
MARKINGcULus Listed, CE, Ex II 2G c T6
TRADE MEASUREMENTNot Approved for Resale of Fluid
COUNTRY OF ORIGINMade in USA
WARRANTY2 Years
Installation
  • Flow Direction: Meters are supplied for horizontal pipework with left to right flow. An arrow on the casting shows the direction.

  • Changing Direction: Determine the flow direction first, then remove the four screws, rotate the meter cover assembly to the orientation you need and replace the screws. Ports can sit in any of four positions for horizontal or vertical pipe and either direction of flow.

  • Flanges: Ports are bolt-on flanges. Fill-Rite lists kits as KIT900PF1N and KIT900PF1.5N in NPT, KIT900PF1B and KIT900PF1.5B in BSPT, each a pair of flanges with o-rings and hardware.

  • Mounting On A Pump: Kit versions of this meter have a four hole flange base for 300 and 700 series pumps. Bolt through the two holes that line up with the pump outlet, then plug the two unused holes so moisture cannot get in.

  • Sealing: Seal every threaded joint with the appropriate sealant or sealant tape.

  • Pressure: Do not exceed 50 psi (3.5 bar) line pressure. Do not fit an additional foot valve or check valve without a pressure relief valve, or the body can crack.

  • Calibration: Calibrate on installation, after any strip down, after significant wear and whenever you change to a fluid of different viscosity. Calibration must be done between 23 and 151 litres a minute against a container of known volume. Anticlockwise on the calibration screw reduces the reading, clockwise increases it.

  • Air: The meter and the pipework either side of it must stay full of liquid and free of air, or the count drifts and the disc can be damaged.
Warranty

Two years from purchase against defects in material and workmanship, per Fill-Rite's published 900 Series warranty. Nothing here limits your rights under the Australian Consumer Law.

Before a meter goes in for service it must be triple rinsed and accompanied by a note listing every fluid that has been through it. Talk to us before returning a meter so we can log it and arrange the right freight.

Catalogues
Data Sheet
Drawings
Manuals
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

Watch on the job

Field videos & walkthroughs.

More videos

Tap a thumbnail to switch the main player.

  • Video 1
  • Video 2
FAQs

Common questions.

What is the difference between the 800 and the 900 Series?
Flow and resolution. The 800 Series is a three wheel meter running 19-76 litres a minute at plus or minus 1 percent, reading to 99.9 litres a batch. The 900 Series is four wheel, 23-151 litres a minute at plus or minus 2 percent, reading to 999.9 litres a batch. Pick the 900 where the flow or the batch size is bigger, and the 800 where the accuracy matters more than the throughput.
Can I use this meter to sell fuel?
No. The faceplate is marked not to be used to measure liquid for resale. These meters are built to record your own usage, so they suit fleet and plant fuel tracking, cost allocation and stock reconciliation. Selling fuel by measure in Australia needs a pattern approved, trade certified meter, which this is not.
Will it handle biodiesel or ethanol blends?
Check with us first. Fill-Rite's mechanical meter brochure lists B20 and E15 for the 900 Series, but their 900 Series manual and their published model specifications list neither for the standard builds. The one build Fill-Rite does rate for blends is the nickel plated 901CNL1.5, which takes biodiesel to B20 and non-potable water. If you are running blends, tell us and we will confirm with the importer.
How do the ports work?
The 900 Series uses bolt-on flanges rather than threads cut into the casting. Fill-Rite lists flange kits in 1 inch and 1.5 inch, in NPT (KIT900PF1N, KIT900PF1.5N) and BSPT (KIT900PF1B, KIT900PF1.5B). Each kit is a pair of flanges with o-rings and attaching hardware.
How accurate is it and can I adjust it?
Plus or minus 2 percent of reading, with 0.38 percent repeatability. It is field calibratable, so you are not sending it away. Calibration has to be done between 23 and 151 litres a minute against a container of known volume, and should be repeated after any strip down and whenever you change to a fluid of different viscosity.
Do you stock parts for it?

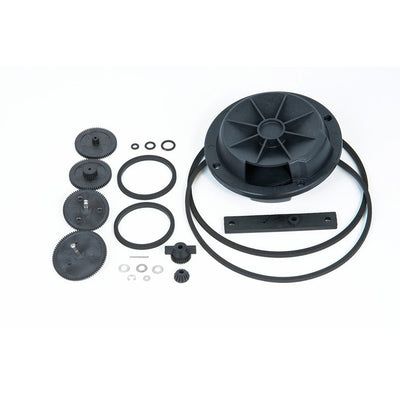

Yes. The Fill-Rite 900 Series Meter Rebuild Kit (900KT) covers the metering chamber, drive gears and seals, and it is the usual fix when a meter reads high, reads low or stops turning. We can also get litre register kits, reset knobs and flange kits. Give us the model and the date of manufacture off the meter when you call.
