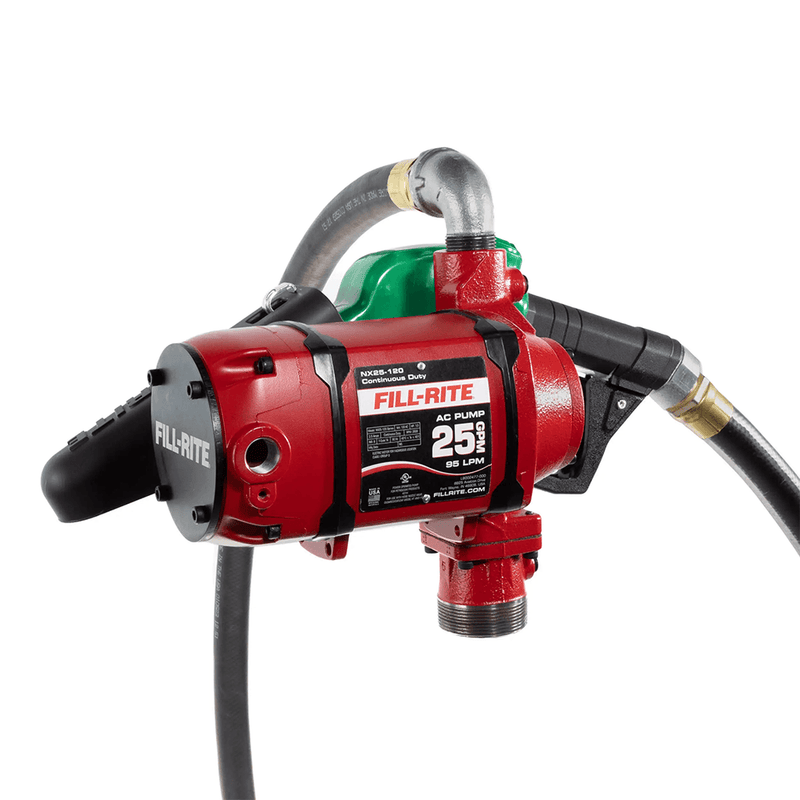

FILL-RITE NEXTEC NX25 Series Pump Range 240V AC 95lpm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Upgrade your bulk dispensing across your yard, workshop, or farm with the Fill-Rite Nextec NX25 240V AC Fuel Transfer Pump Range from GO Industrial.
Engineered for continuous-duty operation, this high-performance 240V AC mains-powered pump range delivers rapid flow rates up to 95 L/min (25 GPM)—significantly cutting down tank refill times for heavy transport, tractors, and site machinery.
Featuring Fill-Rite Nextec’s smart auto-sensing motor technology, the pump automatically adjusts to system pressure changes to maintain peak efficiency and prevent motor burn-out. Built with robust cast-iron construction and supplied with an n IECEx rated explosion-proof motor, this pump range is suitable for diesel, petrol, and bio-diesel.
The Fill-Rite 240V NX25 Pump Range is available at GO Industrial as a bare pump, or in a range of plug-and-play kits complete with mechanical or digital meters, 5.5m x 25mm ID Hose and a choice of manual or auto shut off nozzles.
Features
Ultra-Fast 95 L/min Flow Rate
-
Delivers rapid bulk fuel transfer speeds up to 95 L/min (25 GPM), drastically reducing downtime when refueling large transport fleets, tractors, and earthmoving machinery.
Smart Nextec Intelligence:
-
Equipped with auto-sensing motor technology that dynamically adjusts performance to system back pressure, eliminating vapor lock and ensuring consistent high-volume flow.
Continuous Duty Cycle:
-
Built for non-stop operation without thermal shutdown, making it the ideal stationary dispensing solution for high-throughput depots, commercial yards, and farm fuel tanks.
Lightweight & Compact Footprint:
-
Up to 30% lighter than traditional high-flow pumps in its class, offering easier installation and reduced strain on tank bungs and mounting brackets.
Energy-Efficient 240V AC Power:
-
Plugs directly into standard 240-volt mains or generator power, drawing lower amperage while delivering maximum hydraulic performance.
Commercial Multi-Fuel Compatibility:
-
Engineered to safely dispense Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), and Mineral Spirits.
Ultra-Rugged Cast-Iron Housing:
-
Features heavy-duty cast-iron construction and a durable bronze rotor with carbon rotary vanes, designed to endure harsh Australian outdoor environments.
Integrated Mesh Strainer & Bypass:
-
Built-in stainless steel suction strainer catches particulate debris before it enters the pump chamber, while an internal bypass valve protects motor mechanics.
Full Certification & Safety:
-
Features an explosion-proof motor built to rigorous UL/cUL and ATEX/IECEx safety standards for handling flammable and combustible liquids.
Specifications
| Warranty | Fill-Rite Limited Lifetime Warranty |
| Max Flow Rate | Up to 95 L/min (25 GPM) |
| Operating Voltage | 240V AC (50/60 Hz) |
| Motor Horsepower | 1/3 HP Variable Speed Brushless Motor |
| Duty Cycle | Continuous Duty (Non-stop operation) |
| Inlet Port Size | DN32 (1-1/4") BSP F |
| Outlet Port Size | DN25 (1") BSP F |
| Mounting Options | DN50 (2") BSP M Bung Mount or Foot Mount options |
| Max Operating Pressure | 25 PSI (1.7 bar) |
| Max Suction Lift | Up to 3.65 m (12 ft) |
| Max Discharge Head | 14.6 m (48 ft) |
| Pump Technology | Rotary Vane with Nextec Intelligence™ Variable-Speed Motor |
| Housing Material | Powder-Coated Heavy-Duty Cast Iron |
| Compatible Fluids | Diesel, Petrol (Gasoline up to E15), Kerosene, Bio-Diesel (up to B20), Mineral Spirits |
| Smart Features | Intelligent Tones™ diagnostics, Auto Power Down, Auto-sensing pressure adjustment |
| Inlet Strainer | 20 x 20 Mesh Stainless Steel Strainer |
| Certifications & Safety | UL/cUL Listed, ATEX, IECEx, CE Certified |
| Bare Pump Unit Weight | Approx. 9.3 kg |
| Shipping Bare Pump | 45.7 cm × 38.4 cm × 25.4 cm 15.5kg |
| Shipping Pump Kit | 54.6 cm × 49.5 cm × 23.8 cm 20kg |
