FOZMULA Float Switch Vertical

SKU TLL70S1-0500
Afterpay Zip PayPal LeaseGO
$400.00
Tax included. Shipping calculated at checkout.
Length
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

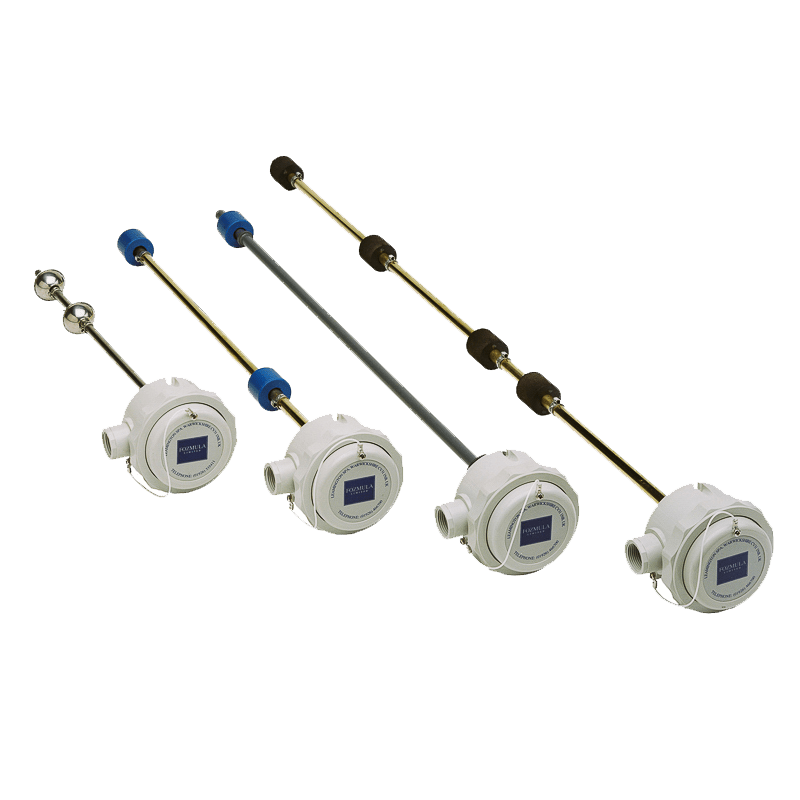

The Fozmula T/LL70, from GO Industrial, is a comprehensive range of vertical float level switches designed around the proven and reliable magnet and reed switch principle.

Comprising many build variants, the Fozmula T/LL70 vertical float level switch is customised to each application by means of materials, level adjustment, connection, thread and reed contact specification.

  • suitable for use with Diesel, Petrol, Water or Lubricants
Features

Features

  • Customised to your specific application by GTS
  • Up to 6 switching points
  • Anywhere up to 2 metres in length
  • 1" BSP Connection
  • Compatible with diesel, water and other liquids
  • Designed with the magnet and reed switch principle
    • Specifications

    Liquid Types

    • Liquids compatible with the construction materials; typically diesel, kerosene, petrol, water.

    Dimensions

    • Max. Length: 2250 mm Brass, 3000 mm SS, 1500 mm uPVC
    • Min. Length: 200 mm (4 Floats, 10 VA Reeds)
    • Min. Switch to Switch Dim: 40 mm (10 VA Reeds)
    • Min. Switch to End Dim: 40 mm (10 VA Reeds)
    • Min. Switch to Datum Dim: 40 mm (10 VA Reeds)

    Operation

    • Max Number of Floats: 6 x N/O or N/C, 4 x C/O

    Reed Contact Specification

    Normally Open or Normally Closed

    • Voltage -≤ 250 VAC/VDC
    • Current -≤ 3 A -1 A standard
    • Power -≤ 120 VA

    Constant Open

    • Voltage - ≤ 500 VAC/VDC
    • Current -≤ 3 A -1 A standard
    • Power -≤ 100 VA

    Environmental Ratings

    • Ingress (Enclosure): IP67
    • Operating Temperature: -20 ºC to +70 ºC
    • Vibration: 7.44 Grms, BSEN 60068-2-64:1993, Random Vibration

    Connections

    • Enclosure: Entry is M20 threaded for gland / conduit. Screw terminals for ≤ Ø2 mm / 3 mm2 conductors.
    • Flying Leads: Connectors / terminals as required.
