GO 0M Double Acting Electric Actuator 110v AC

SKU: 0M-1-2LS

GO 0M Double Acting Electric Actuator 110v AC

$550.00 AUD
$550.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Range

Other payment options

View full details
GO 0M Double Acting Electric Actuator 240v AC - GO Industrial - 0M - 1 - 1LS

GO 0M Double Acting Electric Actuator 110v AC

From $550.00 AUD
$550.00
Sold out

Details

Optional Items

  • Limit Switches 2xZero Voltage L/S Standard with all actuators other than modulating. (0.250v. 5 amp)
  • Modulating Control. 4–20MA, 1–5VDC, 2–10VDC
  • Explosion Proof IECEx
  • Special Voltages — Including 415V 3 Phase
  • Local Control Unit
  • Potentiometer (1K or 5K OHM)
  • Torque Limiter
  • Current Position Transmitter output 4-20MA
  • Heater
  • High Speed Open & Close, 3 Seconds, 8 Seconds
  • Floating Controller

GO 0M Double Acting Electric Actuator 110v AC

Overview

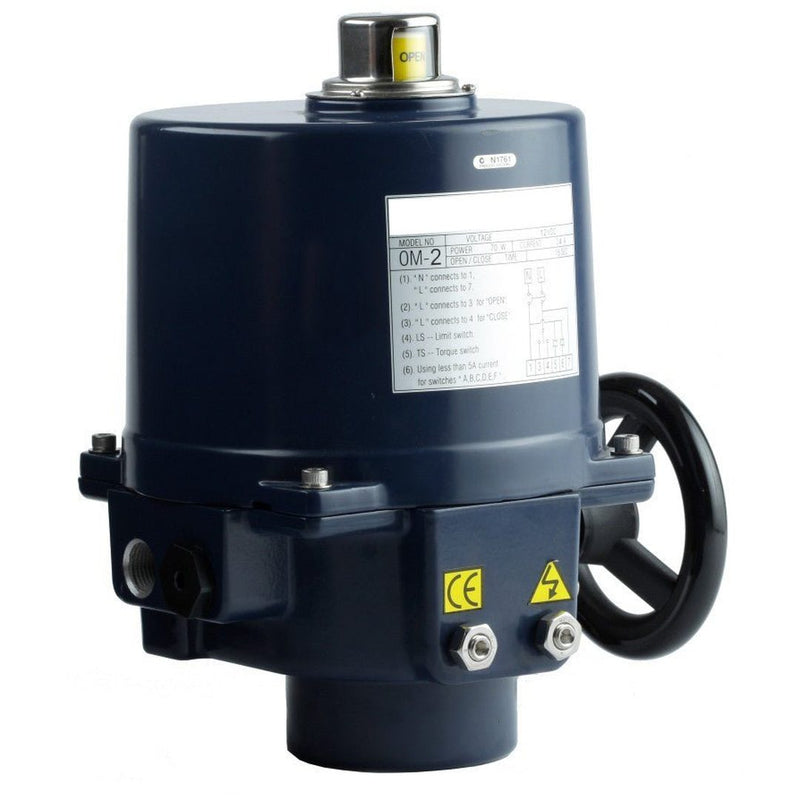

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

  • Torque 35 to 3500 NM
  • Function Drive Open/Drive Close, 90 degree turn
  • Body Powder Coated Die Cast Aluminium
  • Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
  • Rating IP67
    • Model Torque (Nm) Time (seconds) (AMP) 110v AC
        AC Run Start Duty
    OM-1 35 13 0.6 0.6 30%*
    OM-A 50 24 0.6 0.6 30%*
    OM-2 90 17 1 1.8 30%*
    OM-3 150 26 1.2 1.8 30%*
    OM-4 400 18 1.9 3.8 30%*
    OM-5 500 25 2 3.8 30%*
    OM-6 650 31 2.1 3.8 30%*
    OM-7 1000 55 3.1 8.5 30%*
    OM-8 1500 55 3.3 9 30%*
    OM-9 2000 70 3.3 5.8 30%*
    OM-10 2500 70 4 6.5 30%*
    OM-11 3000 70 4.5 6.5 30%*
    OM-12 3500 70 4 8 30%*
    OM-13 4500   4.2 8 30%*
