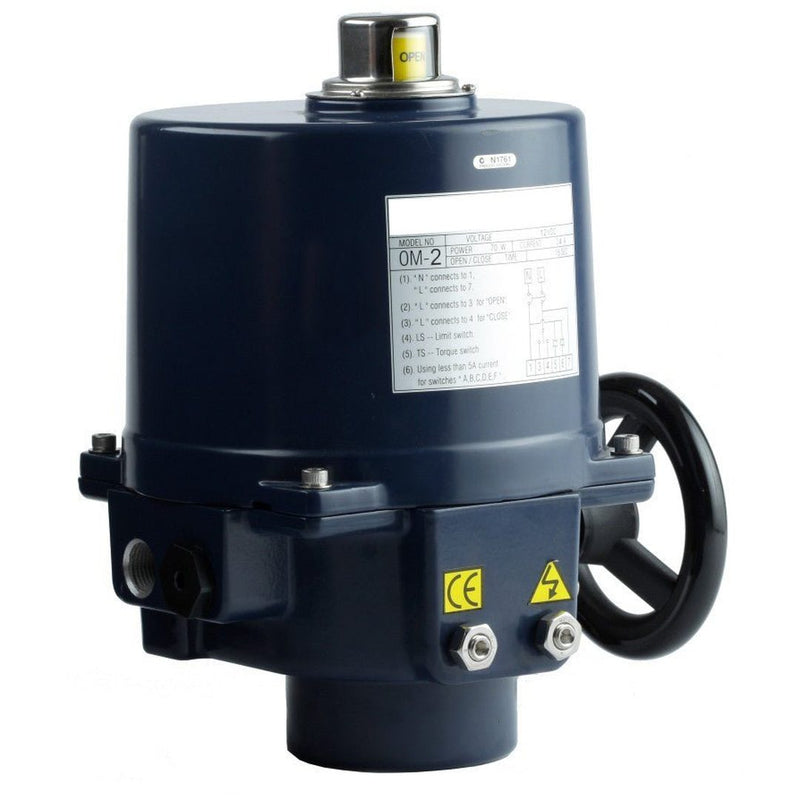

GO 0M Double Acting Electric Actuator 12v DC
SKU: 0M-1-7LSGO 0M Double Acting Electric Actuator 12v DC
Other payment options
GO 0M Double Acting Electric Actuator 12v DC
GO 0M Double Acting Electric Actuator 12v DC
Overview
The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.
Specifications
| Model | Torque (Nm) | Time (seconds) | (AMP) 12v DC | ||
| DC | Run | Start | Duty | ||
| OM-1 | 35 | 15 | 1.9 | 2 | 75% |
| OM-A | 50 | 20 | 1.3 | 1.5 | 75% |
| OM-2 | 90 | 15 | 4.5 | 12 | 75% |
| OM-3 | 150 | 22 | 4.4 | 4.9 | 75% |
| OM-4 | 400 | 16 | 16.1 | 16.1 | 75% |
| OM-5 | 500 | 22 | 14.1 | 13.5 | 75% |
| OM-6 | 650 | 28 | 12.3 | 12.5 | 75% |
| OM-7 | 1000 | 46 | - | - | 75% |
| OM-8 | 1500 | 46 | 25 | 26 | 75% |
| OM-9 | 2000 | 58 | - | - | 50% |
| OM-10 | 2500 | 58 | 28 | 60 | 50% |
| OM-11 | 3000 | 58 | - | - | 50% |
| OM-12 | 3500 | 58 | - | - | 50% |
| OM-13 | 4500 | 50% | |||
