GO 0M Double Acting Electric Actuator 240v AC - GO Industrial - 0M - 1 - 1LS

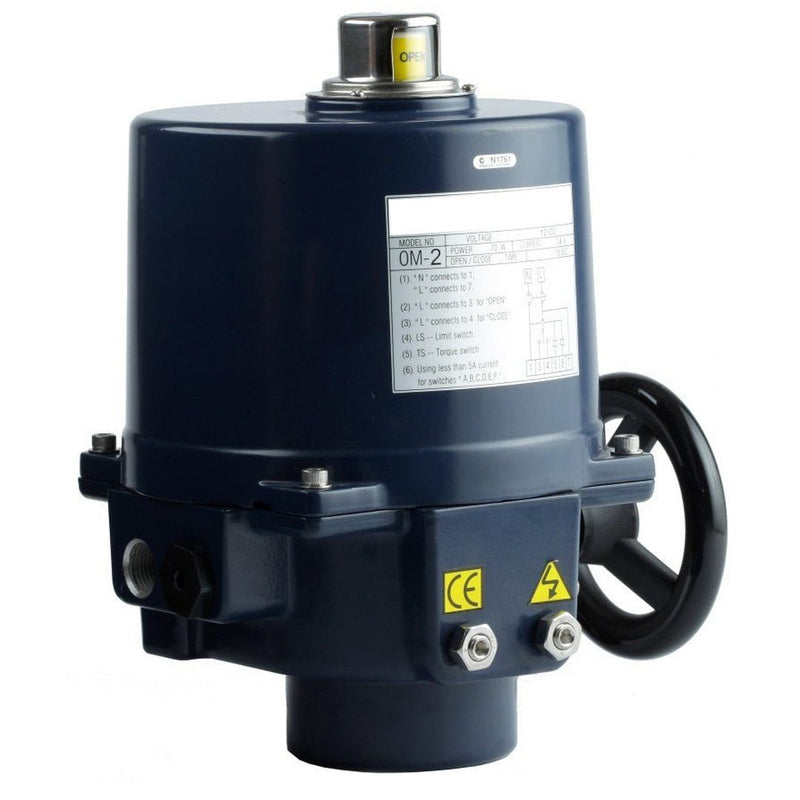

GO 0M Double Acting Electric Actuator 240v AC

SKU 0M-1-1LS
Afterpay Zip PayPal LeaseGO
$550.00
Tax included. Shipping calculated at checkout.
Range
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.

Specifications
  • Torque 35 to 3500 NM
  • Function Drive Open/Drive Close, 90 degree turn
  • Body Powder Coated Die Cast Aluminium
  • Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
  • Rating IP67
    • Model Torque (Nm) Time (seconds) (AMP) 240v AC
        AC Run Start Duty
    OM-1 35 13 0.3 0.4 30%*
    OM-A 50 24 0.3 0.4 30%*
    OM-2 90 17 0.5 0.8 30%*
    OM-3 150 26 1 1.2 30%*
    OM-4 400 18 1.1 2 30%*
    OM-5 500 25 1.1 2 30%*
    OM-6 650 31 1.1 2 30%*
    OM-7 1000 55 1.4 4.1 30%*
    OM-8 1500 55 1.6 4.4 30%*
    OM-9 2000 70 2.1 3.8 30%*
    OM-10 2500 70 2.3 4 30%*
    OM-11 3000 70 2.5 4.2 30%*
    OM-12 3500 70 2.4 4.4 30%*
    OM-13 4500   2.4 4.8 30%*
