GO 0M Double Acting Electric Actuator 24v AC/DC

SKU: 0M-1-58LS

GO 0M Double Acting Electric Actuator 24v AC/DC

$550.00 AUD
$550.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Range

Other payment options

View full details
GO 0M Double Acting Electric Actuator 240v AC - GO Industrial - 0M - 1 - 1LS

GO 0M Double Acting Electric Actuator 24v AC/DC

From $550.00 AUD
$550.00
Sold out

Details

Optional Items

  • Limit Switches 2xZero Voltage L/S Standard with all actuators other than modulating. (0.250v. 5 amp)
  • Modulating Control. 4–20MA, 1–5VDC, 2–10VDC
  • Explosion Proof IECEx
  • Special Voltages — Including 415V 3 Phase
  • Local Control Unit
  • Potentiometer (1K or 5K OHM)
  • Torque Limiter
  • Current Position Transmitter output 4-20MA
  • Heater
  • High Speed Open & Close, 3 Seconds, 8 Seconds
  • Floating Controller

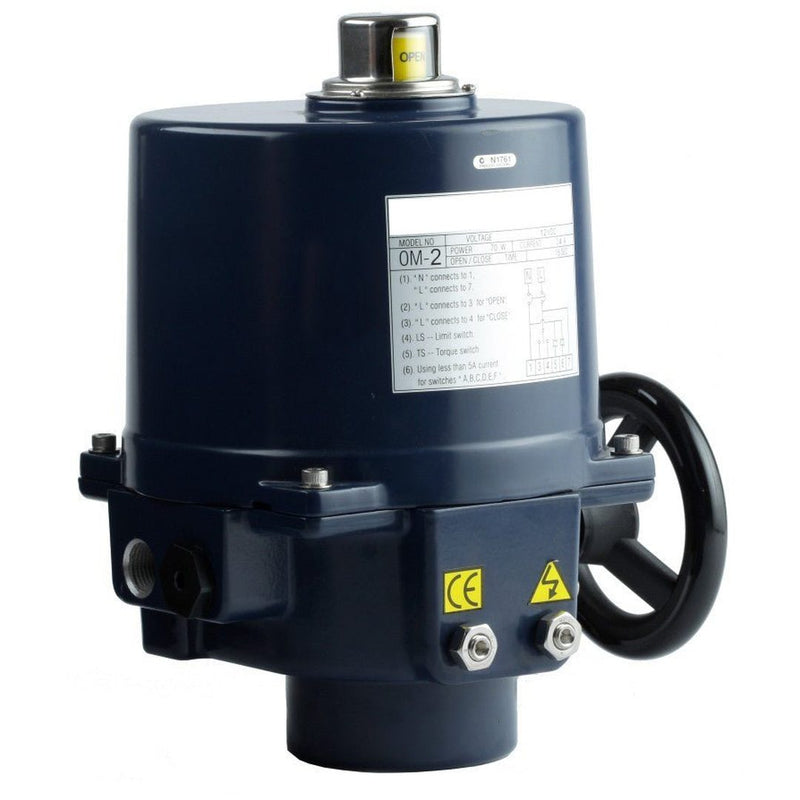

GO 0M Double Acting Electric Actuator 24v AC/DC

Overview

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

  • Torque 35 to 3500 NM
  • Function Drive Open/Drive Close, 90 degree turn
  • Body Powder Coated Die Cast Aluminium
  • Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
  • Rating IP67
    • Model Torque (Nm) Time (seconds) (AMP) 24v AC/DC
    AC DC Run Start Duty
    OM-1 35 13 15 1.1 1.1 75%
    OM-A 50 24 20 0.8 0.9 75%
    OM-2 90 17 15 3.4/2.8 10-Nov 75%
    OM-3 150 26 22 2.4 5 75%
    OM-4 400 18 16 8.5 9.2 75%
    OM-5 500 25 22 7.5 9 75%
    OM-6 650 31 28 7 8.5 75%
    OM-7 1000 55 46 6.8 7.8 75%
    OM-8 1500 55 46 8.1 8 75%
    OM-9 2000 70 58 8.8 11 50%
    OM-10 2500 70 58 11.8 11 50%
    OM-11 3000 70 58 15.1 11 50%
    OM-12 3500 70 58 17.8 12 50%
    OM-13 4500 50%
