Built for the work it does.

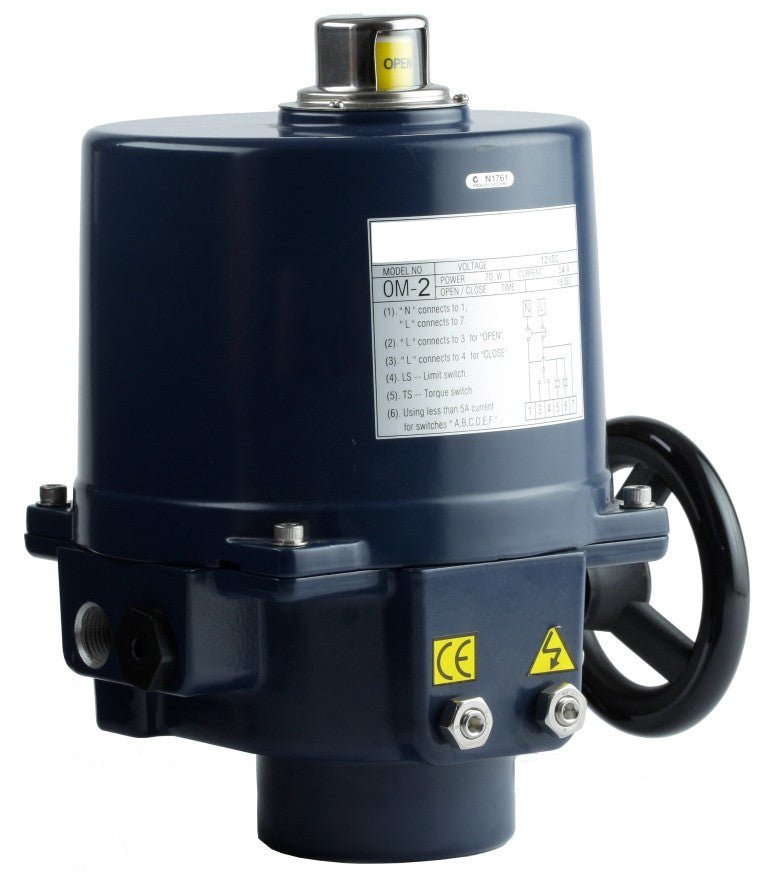

The 0M series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a powder coated die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override. Duty cycle is 30% to 75% depending on ambient temperature, voltage and actuator model, and relates to the 135°C thermal motor protection.
Specifications
| Model | Torque (Nm) | Time (seconds) | (AMP) 24v AC/DC | |||
| AC | DC | Run | Start | Duty | ||
| OM-1 | 35 | 13 | 15 | 1.1 | 1.1 | 75% |
| OM-A | 50 | 24 | 20 | 0.8 | 0.9 | 75% |
| OM-2 | 90 | 17 | 15 | 3.4/2.8 | 10-Nov | 75% |
| OM-3 | 150 | 26 | 22 | 2.4 | 5 | 75% |
| OM-4 | 400 | 18 | 16 | 8.5 | 9.2 | 75% |
| OM-5 | 500 | 25 | 22 | 7.5 | 9 | 75% |
| OM-6 | 650 | 31 | 28 | 7 | 8.5 | 75% |
| OM-7 | 1000 | 55 | 46 | 6.8 | 7.8 | 75% |
| OM-8 | 1500 | 55 | 46 | 8.1 | 8 | 75% |
| OM-9 | 2000 | 70 | 58 | 8.8 | 11 | 50% |
| OM-10 | 2500 | 70 | 58 | 11.8 | 11 | 50% |
| OM-11 | 3000 | 70 | 58 | 15.1 | 11 | 50% |
| OM-12 | 3500 | 70 | 58 | 17.8 | 12 | 50% |
| OM-13 | 4500 | 50% |
