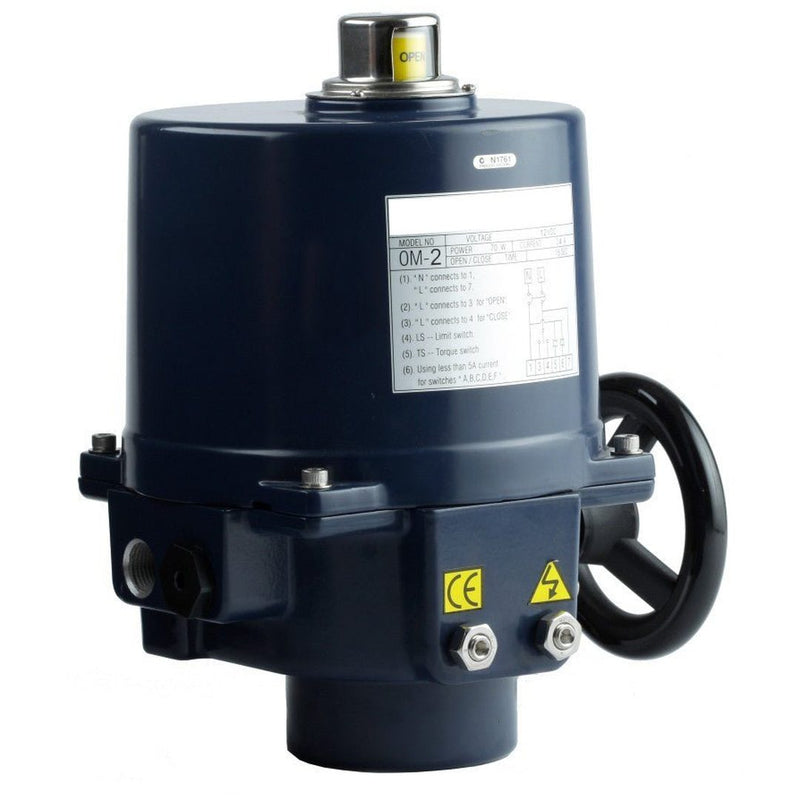

GO 0MM Double Acting Modulating Electric Actuator 24v AC/DC

SKU: 0M-1M-58LS

GO 0MM Double Acting Modulating Electric Actuator 24v AC/DC

$1,732.50 AUD
$1,732.50 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Range

Other payment options

View full details
GO 0MM Double Acting Modulating Electric Actuator 240v AC - GO Industrial - 0M - 1M - 1LS

GO 0MM Double Acting Modulating Electric Actuator 24v AC/DC

From $1,732.50 AUD
$1,732.50
Sold out

Details

Optional Items

  • Limit Switches 2xZero Voltage L/S Standard with all actuators other than modulating. (0.250v. 5 amp)
  • Modulating Control. 4–20MA, 1–5VDC, 2–10VDC
  • Explosion Proof IECEx
  • Special Voltages — Including 415V 3 Phase
  • Local Control Unit
  • Potentiometer (1K or 5K OHM)
  • Torque Limiter
  • Current Position Transmitter output 4-20MA
  • Heater
  • High Speed Open & Close, 3 Seconds, 8 Seconds
  • Floating Controller

GO 0MM Double Acting Modulating Electric Actuator 24v AC/DC

Overview

Modulating 1/4 turn (90 degree) electric actuator with 4 to 20mA input & output. Comes with visual indicator and IP67 environmental protection. Great for positional control of valves using electric actuation.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

Specifications

  • Torque 35 to 3500 NM
  • Function Modulating
  • Body Powder Coated Die Cast Aluminium
  • Voltage 12vDC, 24vDC, 24v AC, 110vAC, 240vAC
  • Rating IP67
    • Model Torque (Nm) Speed AC (90°) Speed DC(90°) Duty Cycle MTG Flange Drive (mm) Weight (kg)
    0M-1M-* 35 13 15 75% F03/F05 14 star 2
    0M-AM-* 50 24 20 75% F05/F07 17 star 3
    0M-2M-* 90 17 15 75% F07 22 star 11
    0M-3M-* 150 26 22 75% F07 22 star 11
    0M-4M-* 400 18 16 75% F10 36 star 22
    0M-5M-* 500 25 22 75% F10 36 star 22
    0M-6M-* 650 31 28 75% F10 36 star 22
    0M-7M-* 1000 55 46 75% F12/F14 36 star 36
    0M-8M-* 1500 70 46 75% F12/F14 36 star 36
    0M-9M-* 2000 70 58 50% F14/F16 75 ѻ 56
    0M-10M-* 2500 70 58 50% F14/F16 75 ѻ 56
    0M-11M-* 3000 70 58 50% F14/F16 75 ѻ 56
    0M-12M-* 3500 70 58 50% F14/F16 75 ѻ 56
