Overview

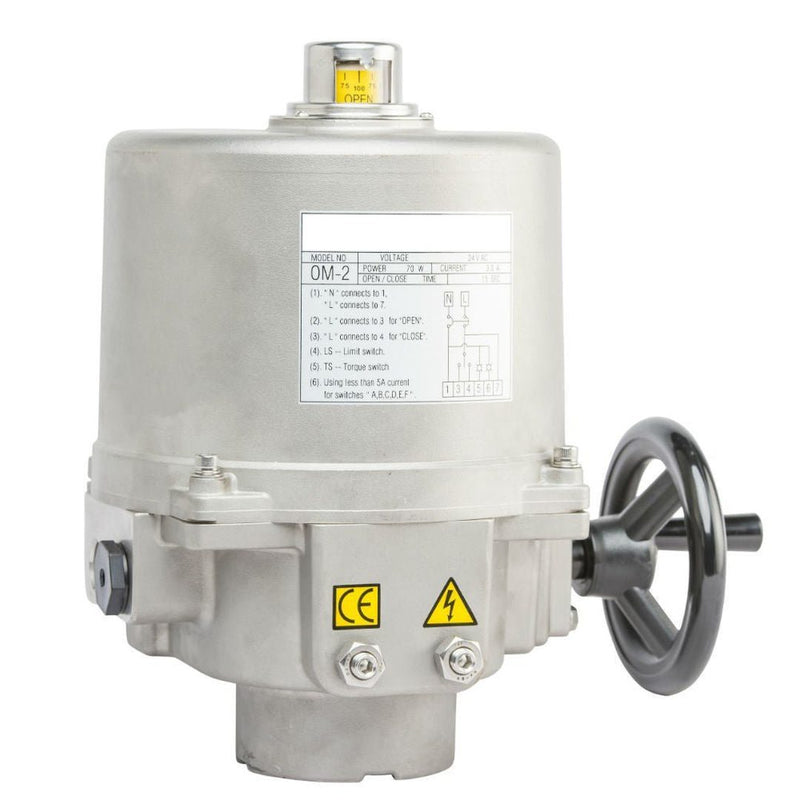

The 0MS series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a 316 Stainless Steel die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override.
Specifications
| Model | Torque (NM) | Time (sec) | AMP 12v DC | |
| DC | Run | Start | ||
| OMS-1 | 35 | 15 | 1.9 | 2 |
| OMS-2 | 90 | 15 | 3.4 | 5.2 |
| OMS-3 | 150 | 22 | 4.4 | 4.9 |
| OMS-4 | 400 | 16 | 16.1 | 16.1 |
| OMS-5 | 500 | 22 | 14.1 | 13.5 |
| OMS-6 | 650 | 28 | 12.3 | 12.5 |
