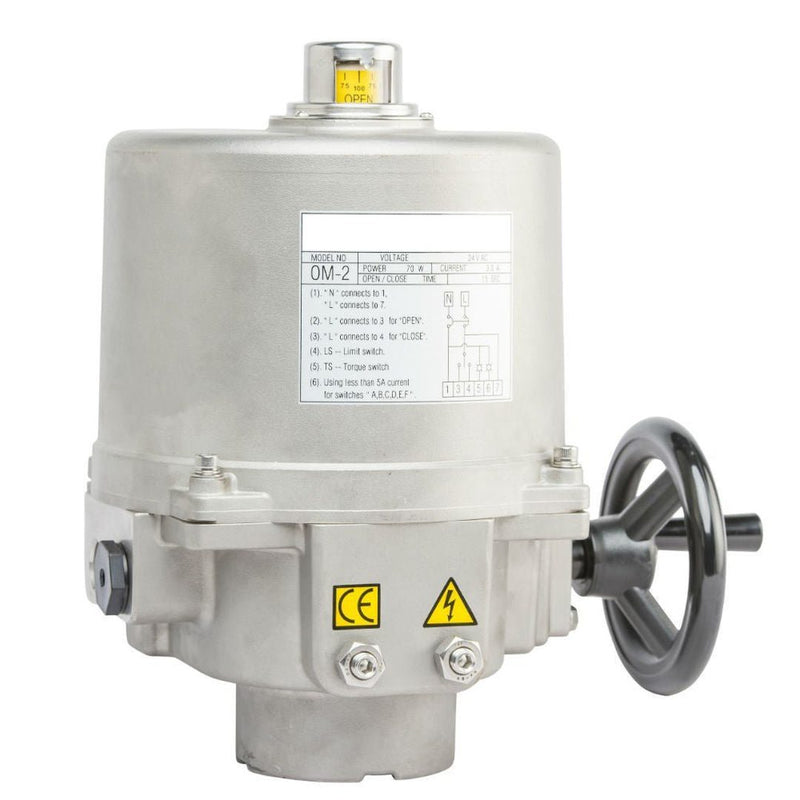

GO 0MM Double Acting Stainless Steel Electric Actuator 24v AC/DC
SKU: 0MS-1-58LSGO 0MM Double Acting Stainless Steel Electric Actuator 24v AC/DC
Other payment options
GO 0MM Double Acting Stainless Steel Electric Actuator 24v AC/DC
GO 0MM Double Acting Stainless Steel Electric Actuator 24v AC/DC
Overview
The 0MS series is a robust range of 1/4 turn (90 degrees) actuators suitable for on/off actuation of butterfly or ball valves. A powerful motor with inbuilt thermal protection drives a pre-lubricated heavy duty steel gear train running on bronze bushes. Encased in a 316 Stainless Steel die cast protective housing giving it an IP67 rating (dust tight and submersible for limited periods). All models have visual indicator, extra limit switches and a manual override.
Specifications
| Model | Torque (NM) | Time (sec) | AMP 24v AC/DC | ||
| AC | DC | Run | Start | ||
| OMS-1 | 35 | 13* | 15 | 1.1 | 1.1 |
| OMS-2 | 90 | 17 | 15 | 2.2 | 4.5 |
| OMS-3 | 150 | 26 | 22 | 2.4 | 5 |
| OMS-4 | 400 | 18 | 16 | 8.5 | 9.2 |
| OMS-5 | 500 | 25 | 22 | 7.5 | 9 |
| OMS-6 | 650 | 31 | 28 | 7 | 8.5 |
