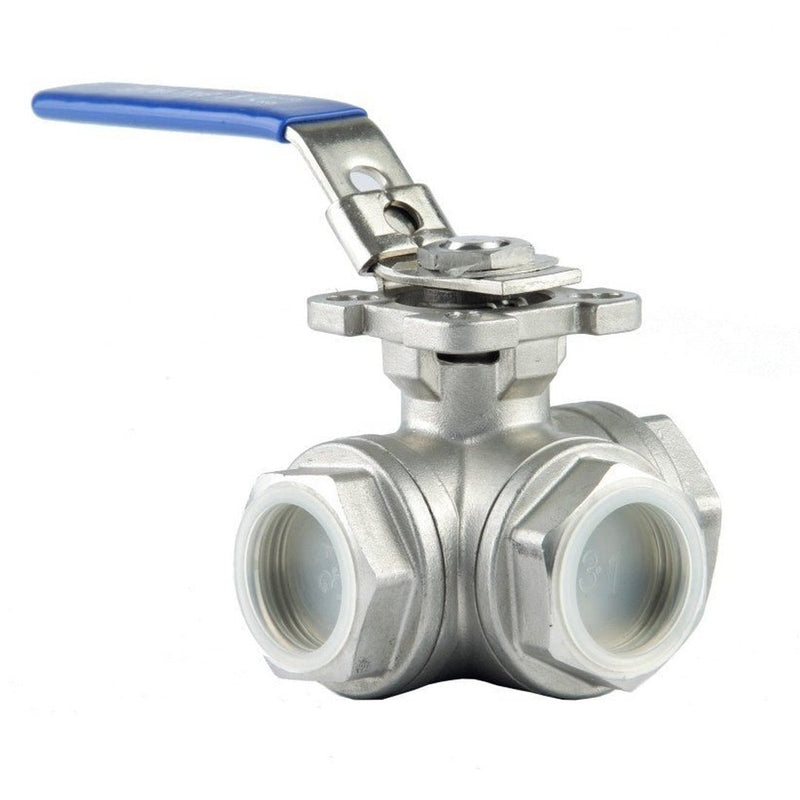

A high performance 3 way (L and T port) reduced bore 316 Stainless Steel ball valve with BSP threaded connections. It has a self adjusting stem packing assembly with a Belleville spring for temperature fluctuations and vibration, and a pre drilled metric hole on the ISO5211 direct mounting pad to minimise thermal transfer from valve to actuator. Reinforced PTFE seats allow temperatures up to 180°C. It is operated by a lockable lever. Typical applications include water treatment, chemical, marine, petrochemical and general industry.
Included accessories
Specifications
| Model | Size (BSP) | Orifice (mm) | Media Pressure | Media Temperature | Torque (NM) |
|---|---|---|---|---|---|
| BLS3L2B-L-RT | 1/4 | 9.5 | Vacuum to 68 Bar | -20°C to 180°C | 6 |
| BLS3L3B-L-RT | 3/8 | 9.5 | Vacuum to 68 Bar | -20°C to 180°C | 6 |
| BLS3L4B-L-RT | 1/2 | 12 | Vacuum to 68 Bar | -20°C to 180°C | 6 |
| BLS3L5B-L-RT | 3/4 | 15 | Vacuum to 68 Bar | -20°C to 180°C | 10 |
| BLS3L6B-L-RT | 1 | 20 | Vacuum to 68 Bar | -20°C to 180°C | 12 |
| BLS3L7B-L-RT | 1 ¼ | 25 | Vacuum to 68 Bar | -20°C to 180°C | 23 |
| BLS3L8B-L-RT | 1 ½ | 32 | Vacuum to 68 Bar | -20°C to 180°C | 28 |
| BLS3L9B-L-RT | 2 | 40 | Vacuum to 68 Bar | -20°C to 180°C | 55 |
| BLS3L10B-L-RT | 2 ½ | 50 | Vacuum to 68 Bar | -20°C to 180°C | 85 |
| BLS3L11B-L-RT | 3 | 65 | Vacuum to 68 Bar | -20°C to 180°C | 110 |
