Built for the work it does.

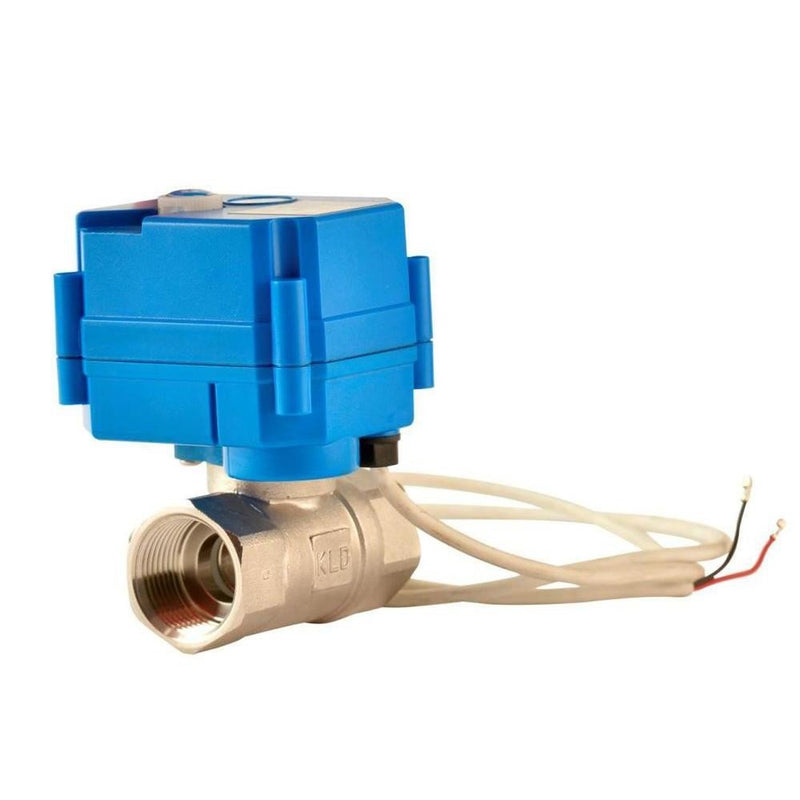

The BAS series electrically actuated ball valves automatically returns the valve to its original position when de-energised. The compact design works in the same way as a solenoid valve and can be considered ‘fail safe’ once the storage capacitor has charged up (approx 30 seconds). Unlike a solenoid valve the BAS can take full pressure in either direction, eliminating the need for a check valve.
Specifications
| Body Material | 316 S.S |
|---|---|
| Ball Material | 316 S.S |
| Seat Material | PTFE with Viton O’Ring |
| Enclosure | Thermoplastic IP65 |
| Current | 5 Watt Max (45 ~ 100 mA) |
| Current Draw at rest (open or close position) | 20 Milli Amp |
| Capacitor Charge Time | 30 Seconds |
| Open/Close Time | 3 Seconds |
| Mounting | Any Attitude |
| Media Pressure | 10 BAR Max |
| Media Temperature | 0°C to 90°C |
