GO Ball Valve Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range

SKU: BLSF4FA-DA

$248

GO Ball Valve Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range

  • BLSFDA - SS316 Range
  • BLCFDA - Cast Steel Range

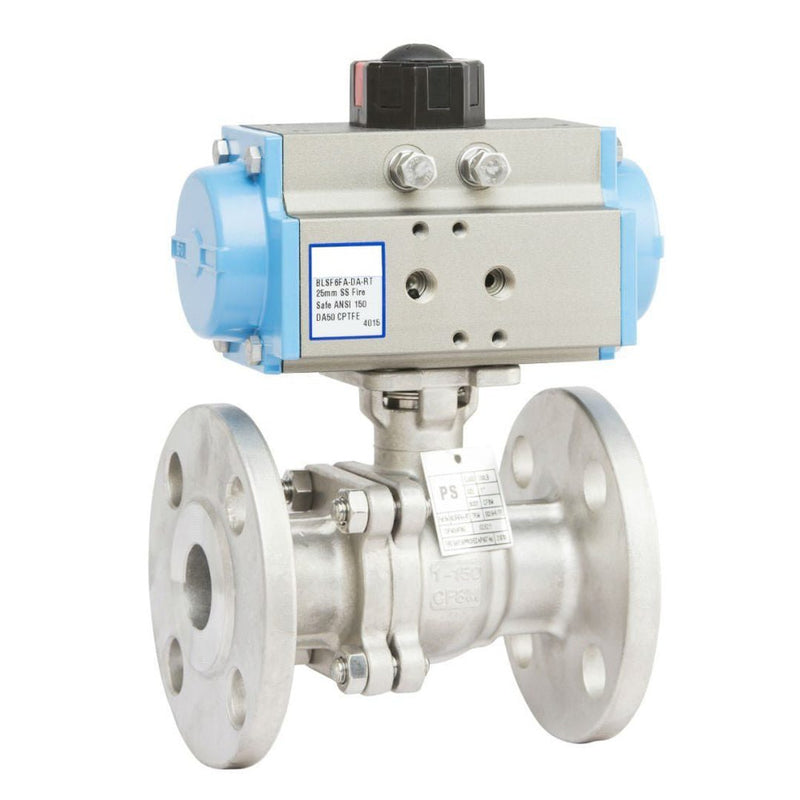

High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.

Great for fuel applications, pipelines, water treatment and general industry.

  • Size 15mm to 300mm
  • Body 316 Stainless Steel or Carbon Steel
  • Seat Reinfoced PTFE
  • Pressure 20 BAR @ amnient
  • Temperature -20°C to 180°C
  • Actuation Double Acting Pneumatic

BLSFDA SS316 Range

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLS4FA-DA-RT 15 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS5FA-DA-RT 20 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS6FA-DA-RT 25 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS7FA-DA-RT 32 DA63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS8FA-DA-RT 40 DA63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS9FA-DA-RT 50 DA75 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS10FA-DA-RT 63 DA88 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS11FA-DA-RT 80 DA100 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS12FA-DA-RT 100 DA115 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS13FA-DA-RT 125 DA145 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS14FA-DA-RT 150 DA160 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS15FA-DA-RT 200 DA180 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS16FA-DA-RT 250 DA200 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLS17FA-DA-RT 300 DA240 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR



BLCFDA Cast Steel Range

Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLCF4FA-DA-RT 15 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF5FA-DA-RT 20 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF6FA-DA-RT 25 DA50 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF7FA-DA-RT 32 DA63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF8FA-DA-RT 40 DA63 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF9FA-DA-RT 50 DA75 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF10FA-DA-RT 63 DA88 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF11FA-DA-RT 80 DA100 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF12FA-DA-RT 100 DA115 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLC13FA-DA-RT 125 DA145 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF14FA-DA-RT 150 DA160 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF15FA-DA-RT 200 DA180 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF16FA-DA-RT 250 DA200 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
BLCF17FA-DA-RT 300 DA240 Vacuum to 20 BAR (10 BAR Steam) -20°C to 180°C 6 to 8 BAR
