GO Ball Valves Actuated Double Acting Pneumatic Flanged ANSI 150# Full Bore Fire Safe
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

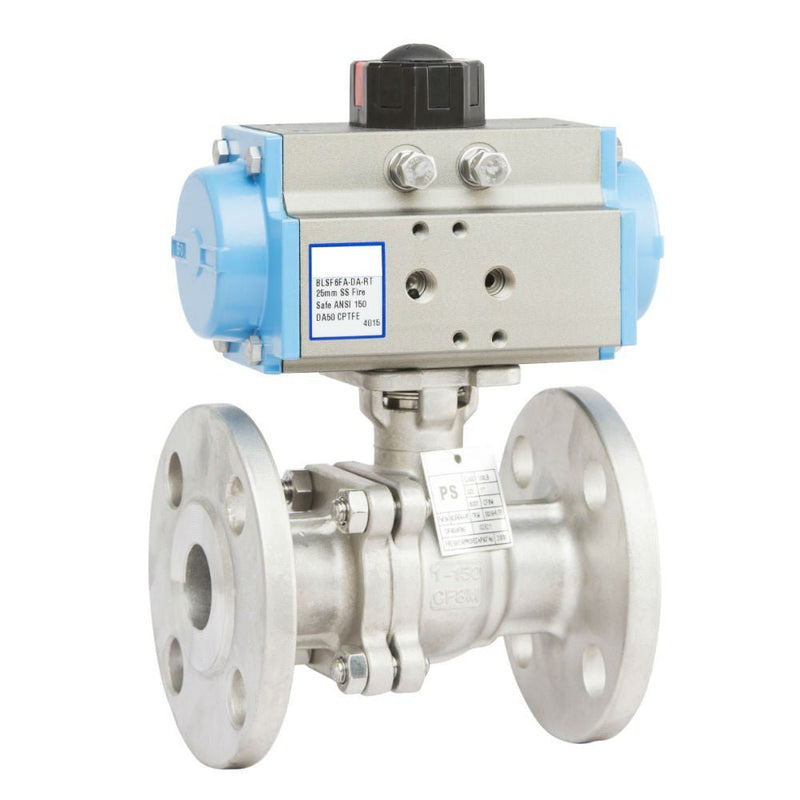

High quality 316 Stainless Steel or Carbon Steel ANSI 150 flanged 2 way ball valve with a direct mounted double acting pneumatic actuator. This allows the user to air open/air close the ball valve. Features reinforced Teflon seats (RTFE) allowing it to handle media up to 180°C and an anodised aluminium actuator with visual indicator. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598.
Specifications
BLSFDA SS316 Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLS4FA-DA-RT | 15 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS5FA-DA-RT | 20 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS6FA-DA-RT | 25 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS7FA-DA-RT | 32 | DA63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS8FA-DA-RT | 40 | DA63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS9FA-DA-RT | 50 | DA75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS10FA-DA-RT | 63 | DA88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS11FA-DA-RT | 80 | DA100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS12FA-DA-RT | 100 | DA115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS13FA-DA-RT | 125 | DA145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS14FA-DA-RT | 150 | DA160 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS15FA-DA-RT | 200 | DA180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS16FA-DA-RT | 250 | DA200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS17FA-DA-RT | 300 | DA240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
BLCFDA Cast Steel Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLCF4FA-DA-RT | 15 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF5FA-DA-RT | 20 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF6FA-DA-RT | 25 | DA50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF7FA-DA-RT | 32 | DA63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF8FA-DA-RT | 40 | DA63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF9FA-DA-RT | 50 | DA75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF10FA-DA-RT | 63 | DA88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF11FA-DA-RT | 80 | DA100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF12FA-DA-RT | 100 | DA115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLC13FA-DA-RT | 125 | DA145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF14FA-DA-RT | 150 | DA160 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF15FA-DA-RT | 200 | DA180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF16FA-DA-RT | 250 | DA200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF17FA-DA-RT | 300 | DA240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
- Size 15mm to 300mm
- Body 316 Stainless Steel or Carbon Steel
- Seat Reinfoced PTFE
- Pressure 20 BAR @ amnient
- Temperature -20°C to 180°C
- Actuation Double Acting Pneumatic
