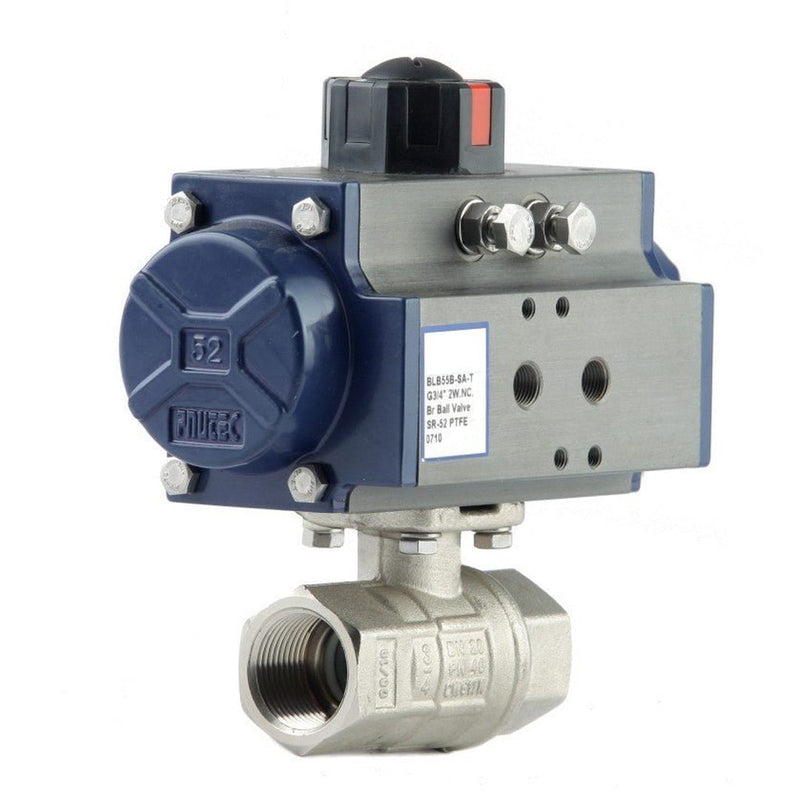

GO Ball Valves Actuated Double Acting Pneumatic Nickel Plated Brass BLBDA

SKU: BLB5B-DA

GO Ball Valves Actuated Double Acting Pneumatic Nickel Plated Brass BLBDA

$182.00 AUD
$182.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size

Other payment options

GO Ball Valves Actuated Double Acting Pneumatic Nickel Plated Brass BLBDA

Overview

2 way 2 piece full bore nickel plated brass ball valve with BSP threaded connections with a double acting pneumatic actuator (rack and pinion). Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. PTFE seats for temperatures up to 100°C. Anodised aluminium double acting pneumatic actuator.

Details

Typical applications include water treatment, petrochemical and general industry.

Specifications

Nickel Plated Brass 2 way, 2 piece ball valve, with double acting actuator. PTFE seat, FKM seals, DA50.Vacuum-16 BAR pressure range, media temp -20°C to 140°C.

  • Size 3/4" to 1 1/2" BSP
  • Body Nickel Plated Brass
  • Seat PTFE
  • Pressure 16 BAR
  • Temperature -10°C to 100°C
  • Actuation Double Acting Pneumatic
    • Model Size(BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
    BLB5B-DA-T 3/4 20 DA50 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
    BLB6B-DA-T 1 25 DA50 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
    BLB8B-DA-T 1 ½ 40 DA63 Vacuum to 16 BAR -20°C to 120°C 6 to 8 BAR
