Built for the work it does.

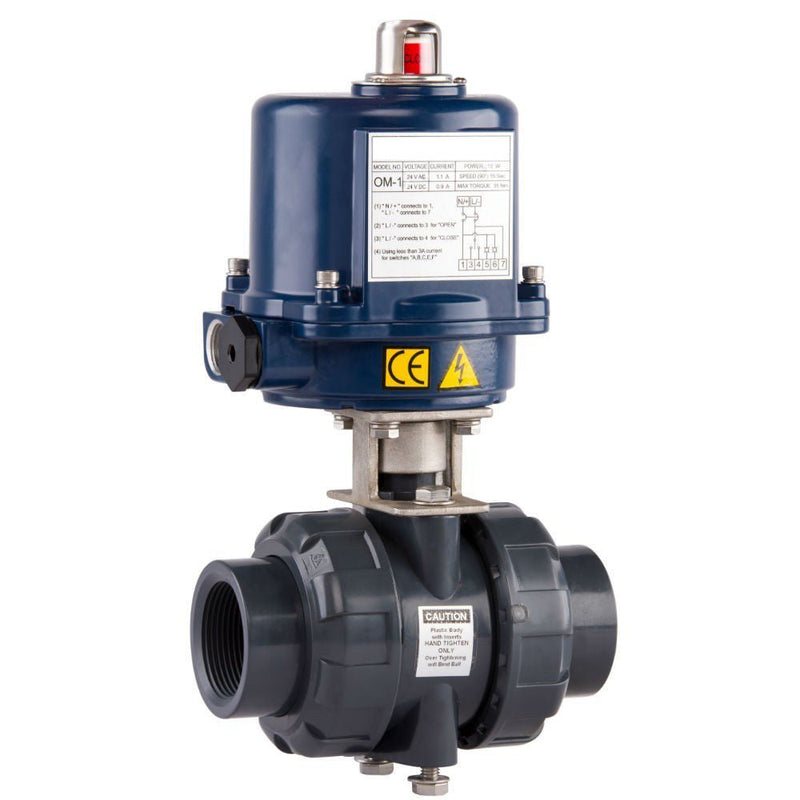

2 way UV stabilised PVC ball valve with an electric actuator (drive open, drive close). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. IP67 electric actuator with visual indicator and extra limit switches.
Specifications
UV Stabilised PVC 2 way true union ball valve, with IP67 electric actuator.G2-1/2", 63mm bore, PTFE seat, EPDM seals, 0M-A electric actuator.Vacuum to 10 BAR pressure range, media temp ambient.
| Model | Size | DN(mm) | Actuator | Media Pressure | Media Temperature |
|---|---|---|---|---|---|
| BLP4B-E*-E | 1/2 | 15 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP5B-E*-E | 3/4 | 20 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP6B-E*-E | 1 | 25 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP7B-E*-E | 1 ¼ | 32 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP8B-E*-E | 1 ½ | 40 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP9B-E*-E | 2 | 50 | 0M-1 | -1 to 10 Bar | Ambient |
| BLP10B-E*-E | 2 ½ | 65 | 0M-A | -1 to 10 Bar | Ambient |
| BLP11B-E*-E | 3 | 80 | 0M-A | -1 to 10 Bar | Ambient |
| BLP12B-E*-E | 4 | 100 | 0M-A | -1 to 10 Bar | Ambient |
*Voltage Code 1 = 240v AC, 2 = 110v AC, 5 = 24v AC, 7 = 12v DC, 8 = 24v DC. For Solvent Weld Ends change the 'B' to an 'S'.
