Enquire For Price
316 S.S 2 way, 3 piece normally closed ball valve, spring return actuator. RTFE seat, FKM seals, live loaded packingVacuum-68 BAR pressure range, media temp -20°C to 180°C.Anodised & coated aluminium pneumatic actuator, spring closed.
| Model | Size (BSP) | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressrue |
|---|---|---|---|---|---|---|
| BLS52B-SR-RT | 1/4 | 8 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS53B-SR-RT | 3/8 | 10 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS54B-SR-RT | 1/2 | 15 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS55B-SR-RT | 3/4 | 20 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS56B-SR-RT | 1 | 25 | SR63 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS57B-SR-RT | 1 ¼ | 32 | SR75 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS58B-SR-RT | 1 ½ | 40 | SR88 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS59B-SR-RT | 2 | 50 | SR88 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS510B-SR-RT | 2 ½ | 63 | SR100 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS511B-SR-RT | 3 | 80 | SR115 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS512B-SR-RT | 4 | 100 | SR125 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
- Size 1/4" to 4" BSP
- Body 316 Stainless Steel 3 piece
- Seat Reinforced PTFE
- Pressure 70 BAR
- Temperature -20°C to 180°C
- Actuation Spring Return Pneumatic

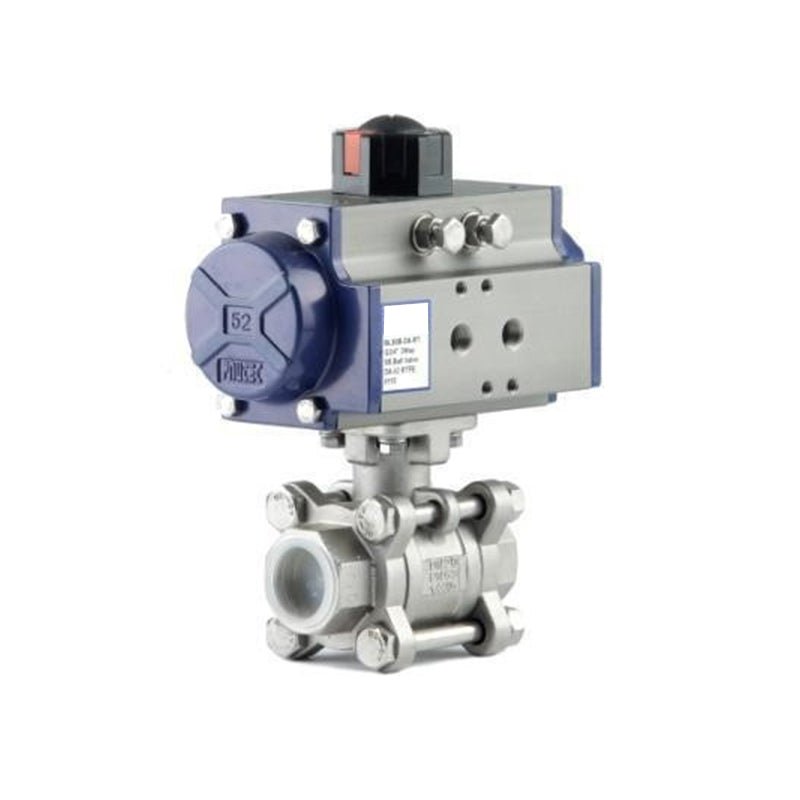

GO Ball Valve Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore 1/4" to 4" BLSSR Range
SKU: BLS52B-SRGO Ball Valve Actuated Spring Return Pneumatic 316 Stainless 3 Piece Full Bore 1/4" to 4" BLSSR Range
Other payment options
Couldn't load pickup availability
The Basics

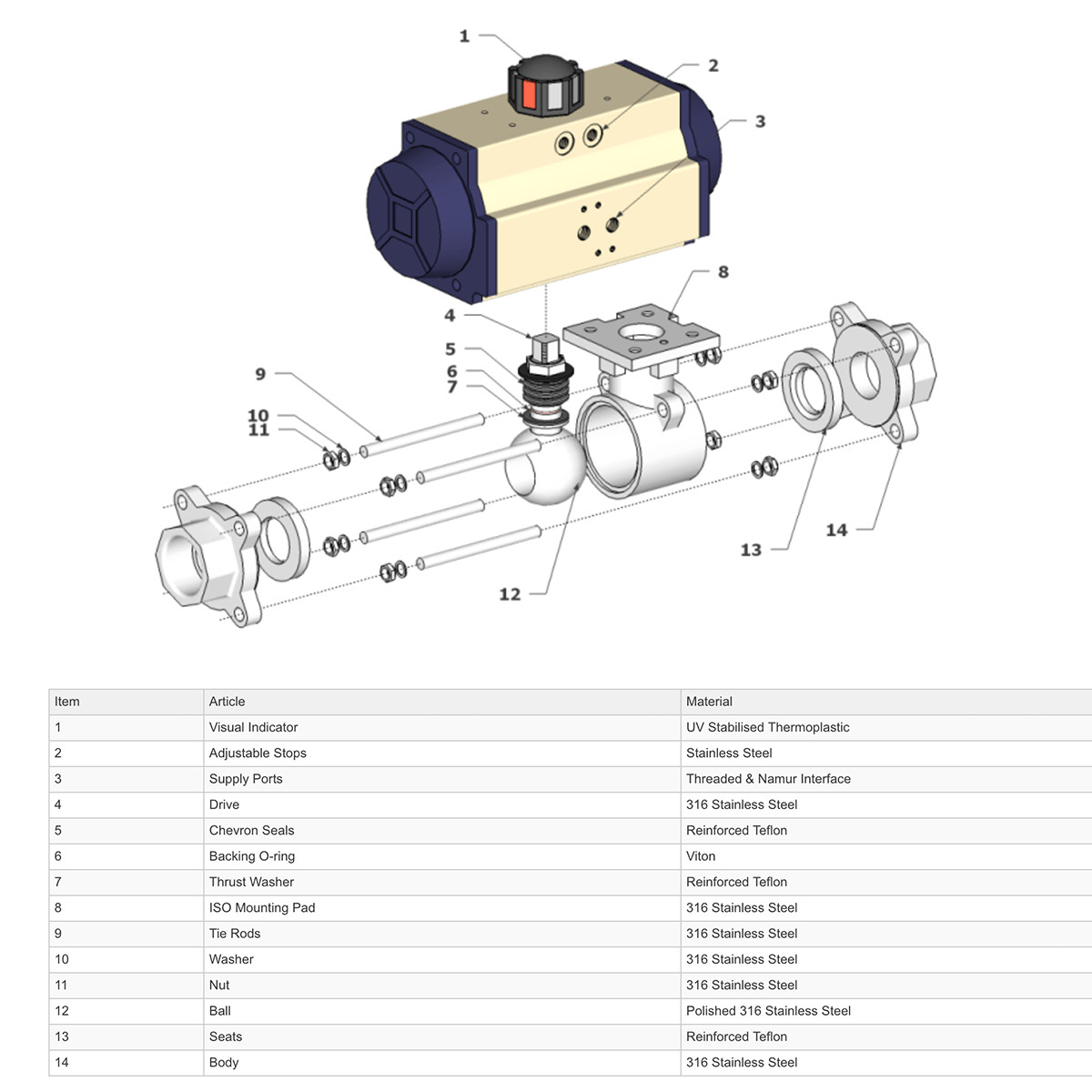

High performance 3 piece full bore 316 Stainless Steel ball valve with BSP threaded connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with Belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodised aluminium spring return pneumatic actuator which allows a fail safe position if air is lost.
316 S.S 2 way, 3 piece normally closed ball valve, spring return actuator. RTFE seat, FKM seals, live loaded packingVacuum-68 BAR pressure range, media temp -20°C to 180°C.Anodised & coated aluminium pneumatic actuator, spring closed.
| Model | Size (BSP) | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressrue |
|---|---|---|---|---|---|---|
| BLS52B-SR-RT | 1/4 | 8 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS53B-SR-RT | 3/8 | 10 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS54B-SR-RT | 1/2 | 15 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS55B-SR-RT | 3/4 | 20 | SR50 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS56B-SR-RT | 1 | 25 | SR63 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS57B-SR-RT | 1 ¼ | 32 | SR75 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS58B-SR-RT | 1 ½ | 40 | SR88 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS59B-SR-RT | 2 | 50 | SR88 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS510B-SR-RT | 2 ½ | 63 | SR100 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS511B-SR-RT | 3 | 80 | SR115 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLS512B-SR-RT | 4 | 100 | SR125 | -1 to 70 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
- Size 1/4" to 4" BSP
- Body 316 Stainless Steel 3 piece
- Seat Reinforced PTFE
- Pressure 70 BAR
- Temperature -20°C to 180°C
- Actuation Spring Return Pneumatic
