GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2
Construction - GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2
Dimensions - GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2
  • GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FASR Range
  • Construction - GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FASR Range
  • Dimensions - GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2" to 4" BLS3FASR Range
1 4

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

SKU: BLS3L4FA-SR

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

$556.00 AUD
$556.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size
Body Material

Other payment options

GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

Overview

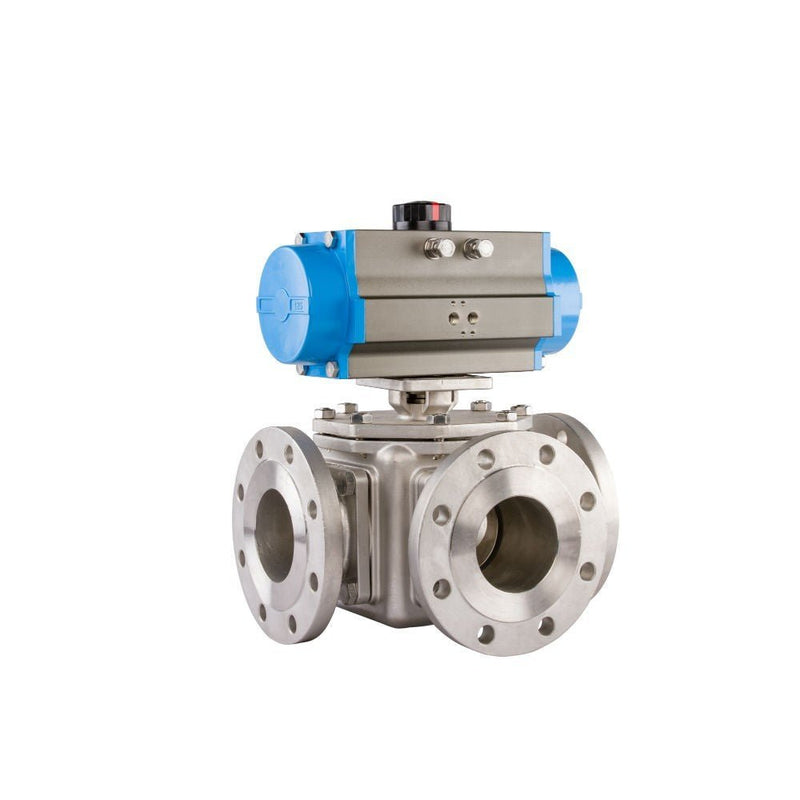

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.

Details

Typical applications include water treatment, chemical, marine, petrochemical and general industry.

Specifications

316 SS 3 way, L port ball valve, full bore with spring return actuator. ANSI 150 Flange, 15mm bore, RTFE seat, FKM seals, live loaded packing. 150 lb pressure range, media temp -20°C to 180°C.Anodised & coated aluminium spring return pneumatic actuator.

  • Size 15mm to 100mm
  • Body 316 Stainless Steel
  • Seat RPTFE
  • Pressure 20 BAR @ ambient
  • Temperature -10°C to 180°C
  • Actuation Spring Return Pneumatic
  • Port  L or T port
    • Model DN (mm) Actuator Media Pressure Media Temperature Actuator Pressure
    BLS3L4FA-SR-RT 15 SR63 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L5FA-SR-RT 20 SR75 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L6FA-SR-RT 25 SR75 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L7FA-SR-RT 32 SR88 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L8FA-SR-RT 40 SR100 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L9FA-SR-RT 50 SR115 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L10FA-SR-RT 65 SR125 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L11FA-SR-RT 80 SR145 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L12FA-SR-RT 100 SR160 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR



    Shipping & Returns

    Add text about your shipping policy

    Shipping & Returns

    Add text about your shipping policy

    Warranty

    Add text about your product warranty

    Warranty

    Add text about your product warranty

    Secure Payment

    Add text about your payment

    Secure Payment

    Add text about your payment

    View full details
    GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way 1/2

    GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

    From $440.00 AUD
    From $440.00 AUD

    Details

    Typical applications include water treatment, chemical, marine, petrochemical and general industry.

    GO Ball Valves Actuated Spring Return Pneumatic Flanged ANSI 150# 3 Way BLS3FASR

    Overview

    High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections and a spring return pneumatic actuator. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C. Anodized aluminium rack and pinion actuator with visual indicator, namur interface and stop adjustments.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

    316 SS 3 way, L port ball valve, full bore with spring return actuator. ANSI 150 Flange, 15mm bore, RTFE seat, FKM seals, live loaded packing. 150 lb pressure range, media temp -20°C to 180°C.Anodised & coated aluminium spring return pneumatic actuator.

  • Size 15mm to 100mm
  • Body 316 Stainless Steel
  • Seat RPTFE
  • Pressure 20 BAR @ ambient
  • Temperature -10°C to 180°C
  • Actuation Spring Return Pneumatic
  • Port  L or T port
    • Model DN (mm) Actuator Media Pressure Media Temperature Actuator Pressure
    BLS3L4FA-SR-RT 15 SR63 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L5FA-SR-RT 20 SR75 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L6FA-SR-RT 25 SR75 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L7FA-SR-RT 32 SR88 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L8FA-SR-RT 40 SR100 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L9FA-SR-RT 50 SR115 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L10FA-SR-RT 65 SR125 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L11FA-SR-RT 80 SR145 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
    BLS3L12FA-SR-RT 100 SR160 Vacuum to 20 BAR -20°C to 180°C 6 to 8 BAR
