BLSFSR 316 SS Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLSF54FA-SR-RT | 15 | SR50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF55FA-SR-RT | 20 | SR63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF56FA-SR-RT | 25 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF57FA-SR-RT | 32 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF58FA-SR-RT | 40 | SR88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF59FA-SR-RT | 50 | SR100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF510FA-SR-RT | 63 | SR115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF511FA-SR-RT | 80 | SR125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF512FA-SR-RT | 100 | SR145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF513FA-SR-RT | 125 | SR180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF514FA-SR-RT | 150 | SR200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF515FA-SR-RT | 200 | SR240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF516FA-SR-RT | 250 | SR270 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
BLCFSR Cast Steel Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLCF54FA-SR-RT | 15 | SR50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF55FA-SR-RT | 20 | SR63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF56FA-SR-RT | 25 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF57FA-SR-RT | 32 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF58FA-SR-RT | 40 | SR88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF59FA-SR-RT | 50 | SR100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF510FA-SR-RT | 63 | SR115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF511FA-SR-RT | 80 | SR125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF512FA-SR-RT | 100 | SR145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF513FA-SR-RT | 125 | SR180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF514FA-SR-RT | 150 | SR200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF515FA-SR-RT | 200 | SR240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
- Size 15mm to 250mm
- Body 316 Stainless Steel or Cast Steel
- Seat Reinforced Carbon PTFE
- Pressure 150 pound
- Temperature -20°C to 180°C
- Actuation Spring Return Pneumatic
- Fire Safe API607 6th E. Cert. No 218781

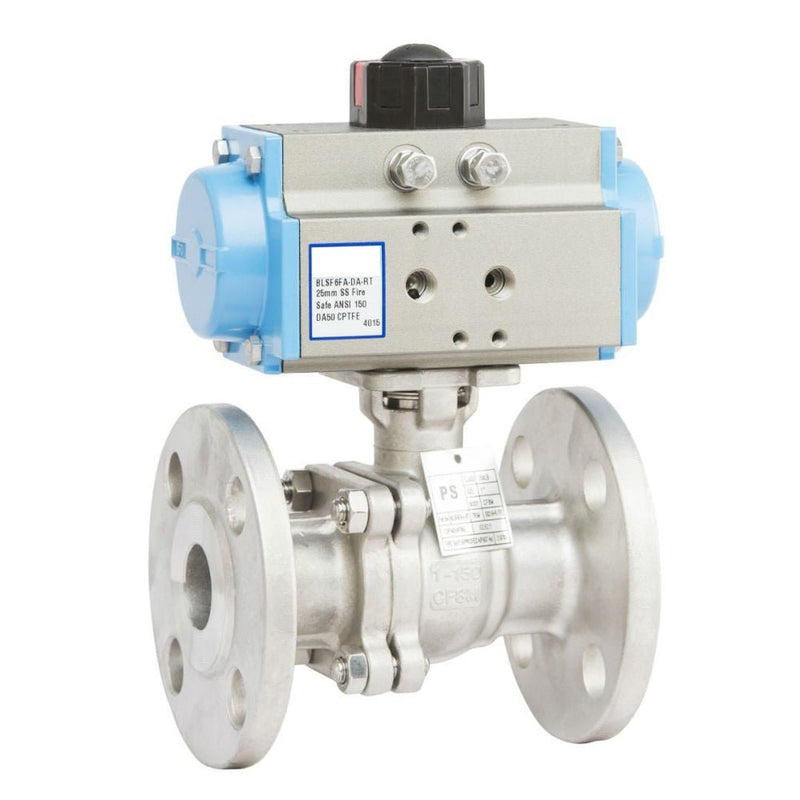

GO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range
SKU: BLSF54FA-SRGO Ball Valve Actuated Spring Return Pneumatic Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range
Regular price
$264.00 AUD
Sale price
$264.00 AUD
Regular price
Unit price
per
Save $0
Sold out
Inclusive of GST.
Shipping calculated at checkout.
Other payment options
Couldn't load pickup availability
The Basics
Two piece two way ANSI 150 lb flanged fire safe approved ball valve, spring return pneumatic operation. 316 Stainless Steel or Carbon Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Ball valve designed & manufactured to ANSI B16.34, face to face complies with ANSI B16.10, flange ends comply with ANSI B16.5 and testing and inspection according to API598. Firesafe Approved API607 Sixth Edition, Cert. No 218781. Direct coupled anodised aluminium pneumatic spring return actuator with visual indicator. Media temp -20°C to 180°C.
BLSFSR 316 SS Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLSF54FA-SR-RT | 15 | SR50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF55FA-SR-RT | 20 | SR63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF56FA-SR-RT | 25 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF57FA-SR-RT | 32 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF58FA-SR-RT | 40 | SR88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF59FA-SR-RT | 50 | SR100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF510FA-SR-RT | 63 | SR115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF511FA-SR-RT | 80 | SR125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF512FA-SR-RT | 100 | SR145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF513FA-SR-RT | 125 | SR180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF514FA-SR-RT | 150 | SR200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF515FA-SR-RT | 200 | SR240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLSF516FA-SR-RT | 250 | SR270 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
BLCFSR Cast Steel Range
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BLCF54FA-SR-RT | 15 | SR50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF55FA-SR-RT | 20 | SR63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF56FA-SR-RT | 25 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF57FA-SR-RT | 32 | SR75 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF58FA-SR-RT | 40 | SR88 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF59FA-SR-RT | 50 | SR100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF510FA-SR-RT | 63 | SR115 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF511FA-SR-RT | 80 | SR125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF512FA-SR-RT | 100 | SR145 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF513FA-SR-RT | 125 | SR180 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF514FA-SR-RT | 150 | SR200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
| BLCF515FA-SR-RT | 200 | SR240 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C | 6 to 8 BAR |
- Size 15mm to 250mm
- Body 316 Stainless Steel or Cast Steel
- Seat Reinforced Carbon PTFE
- Pressure 150 pound
- Temperature -20°C to 180°C
- Actuation Spring Return Pneumatic
- Fire Safe API607 6th E. Cert. No 218781
