Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Available with BSP threaded and solvent weld ends (ANSI Standard designed to fit Schedule 40 & 80 pipe).

UPVC 2 way normally closed ball valve, with spring return pneumatic actuator.G1/2", 15mm bore, PTFE seat, EPDM seals, SR50.Vacuum-10 BAR pressure range, media temp ambient.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLP54B-SR-E 1/2 15 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP55B-SR-E 3/4 20 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP56B-SR-E 1 25 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP57B-SR-E 1 ¼ 32 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP58B-SR-E 1 ½ 40 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP59B-SR-E 2 50 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP510B-SR-E 2 ½ 65 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP511B-SR-E 3 80 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP512B-SR-E 4 100 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR



  • Size 1/2" to 4" BSP
  • Body UV stabalised PVC
  • Seat PTFE
  • Pressure 10 BAR
  • Temperature Ambient
  • Actuation Spring Return Pneumatic



GO Ball Valve Actuated Spring Return Pneumatic PVC 1/2" to 4" BLPSR Range

SKU: BLP54B-SR

GO Ball Valve Actuated Spring Return Pneumatic PVC 1/2" to 4" BLPSR Range

Regular price $198.00 AUD
Sale price $198.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

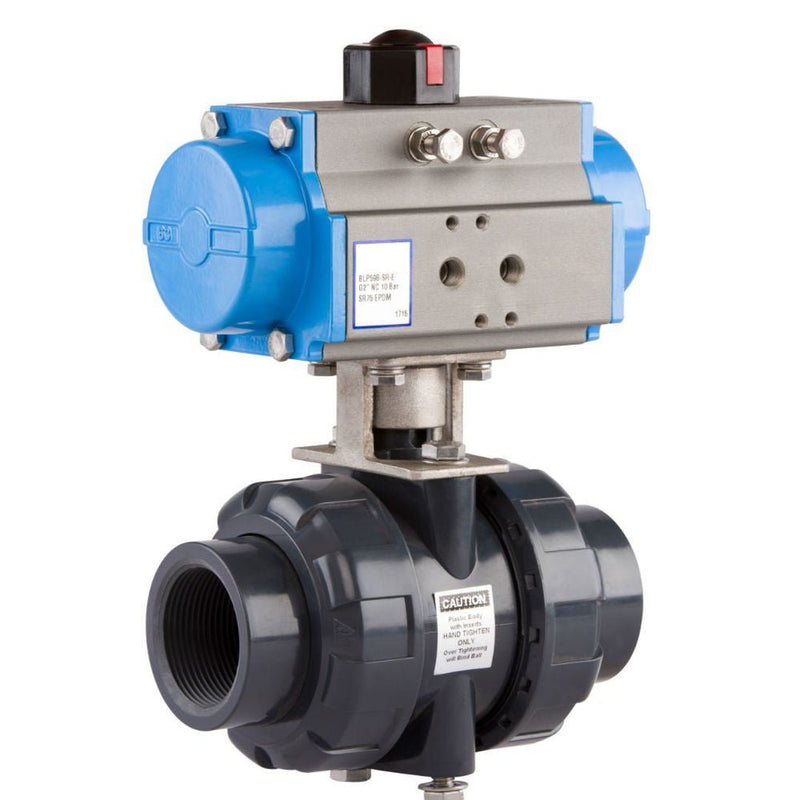

2 way UV stabilised PVC ball valve with spring return pneumatic actuator (fail close or fail open). Comes with PTFE (Teflon) seats and our unique double stem seal system (standard in EPDM but also available in Viton). Great for corrosive or chemical media where traditional material such as brass and stainless steel are not suitable. Anodised aluminium actuator with visual indicator will close or open when air is lost (depending upon your choice).



Commonly used in the aquaculture industry (sea water), chemical dosing, water treatment and pool filtration.

Available with BSP threaded and solvent weld ends (ANSI Standard designed to fit Schedule 40 & 80 pipe).

UPVC 2 way normally closed ball valve, with spring return pneumatic actuator.G1/2", 15mm bore, PTFE seat, EPDM seals, SR50.Vacuum-10 BAR pressure range, media temp ambient.

Model Size (BSP) Orifice Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BLP54B-SR-E 1/2 15 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP55B-SR-E 3/4 20 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP56B-SR-E 1 25 SR50 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP57B-SR-E 1 ¼ 32 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP58B-SR-E 1 ½ 40 SR63 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP59B-SR-E 2 50 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP510B-SR-E 2 ½ 65 SR75 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP511B-SR-E 3 80 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR
BLP512B-SR-E 4 100 SR88 Vacuum to 10 BAR Ambient 6 to 8 BAR



  • Size 1/2" to 4" BSP
  • Body UV stabalised PVC
  • Seat PTFE
  • Pressure 10 BAR
  • Temperature Ambient
  • Actuation Spring Return Pneumatic
