GO Ball Valves ANSI 150# 3 Way BLS3FA
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

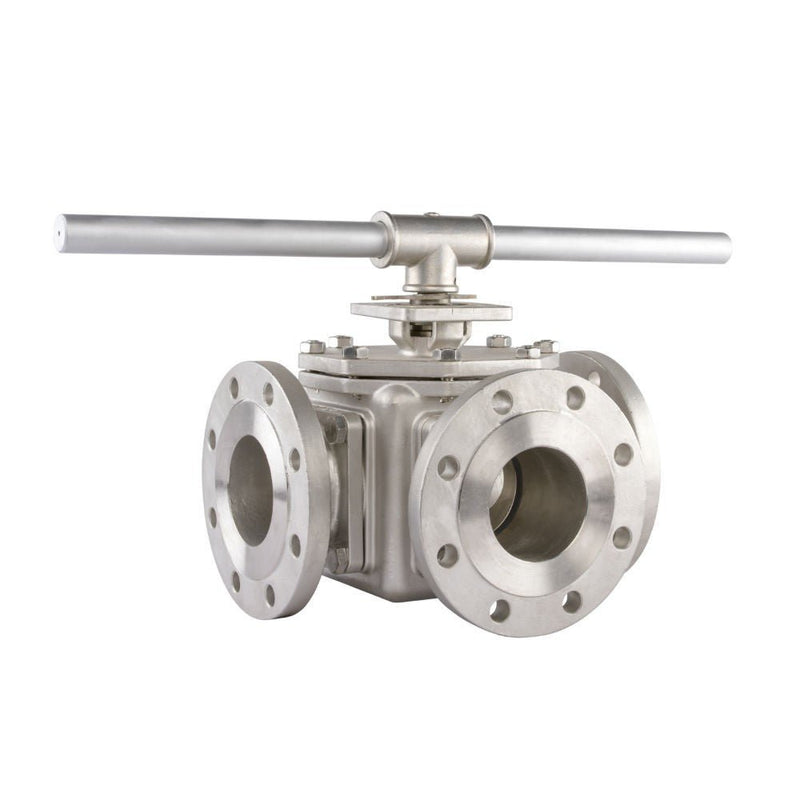

High performance 3 way full bore 316 Stainless Steel ball valve with ANSI 150 flanged connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.
Specifications
316 SS 3 way, L port ball valve, with Lever Operation.ANSI 150 Flange, RTFE seat, FKM seals, live loaded packing150 lb pressure range, media temp -20°C to 180°C.ISO5211 Mounting Pad F03/F04, 9mm sq.drive.
| Model | DN (mm) | L port CV | T port CV (Through) | T port CV (Branch) | Media Pressure | Media Temperature |
|---|---|---|---|---|---|---|
| BLS3L4FA-L-RT | 15 | 6 | 10 | 5 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L5FA-L-RT | 20 | 15 | 21 | 13 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L6FA-L-RT | 25 | 27 | 36 | 22 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L7FA-L-RT | 32 | 28 | 58 | 25 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L8FA-L-RT | 40 | 65 | 90 | 55 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L9FA-L-RT | 50 | 120 | 175 | 100 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L10FA-L-RT | 65 | 175 | 235 | 149 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L11FA-L-RT | 80 | 300 | 450 | 270 | Vacuum to 20 BAR | 20°C to 180°C |
| BLS3L12FA-L-RT | 100 | 353 | 800 | 475 | Vacuum to 20 BAR | 20°C to 180°C |
