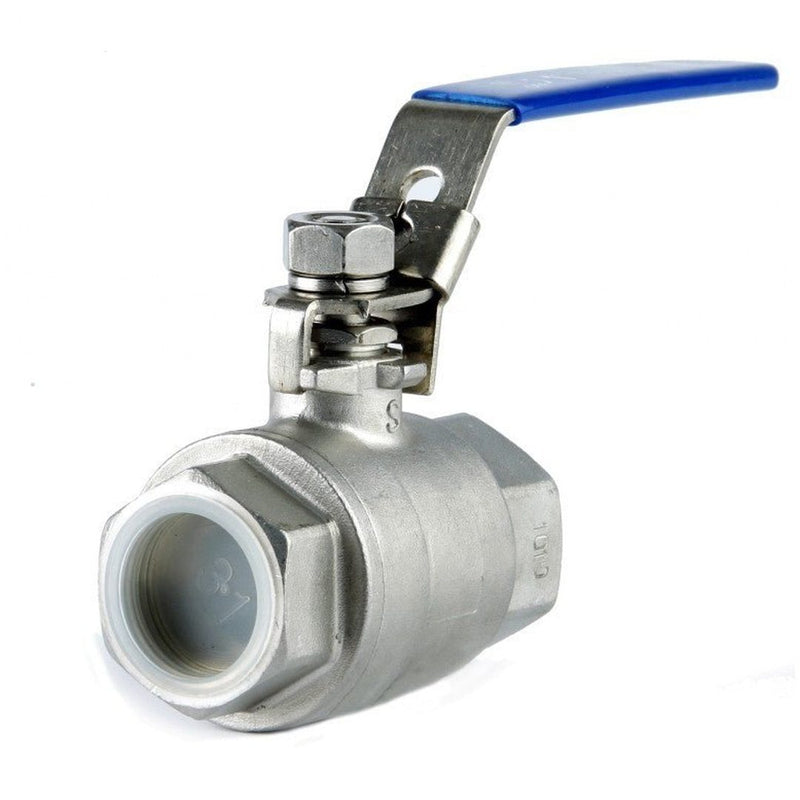

GO Ball Valves High Pressure Two Piece Full Bore 316 Stainless Scr BSP BLSHP

SKU: BLSHP2B-L

GO Ball Valves High Pressure Two Piece Full Bore 316 Stainless Scr BSP BLSHP

$165.00 AUD
$165.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Size

Other payment options

GO Ball Valves High Pressure Two Piece Full Bore 316 Stainless Scr BSP BLSHP

Overview

Series BLSHP high performance 316 stainless steel ball valves are specifically designed for high pressure applications. Delrin seats enable pressures up to 204 BAR or 3000 psi at 38°C. Comes with lockable lever operation.

Details

Typical applications include water blasting, chemical injection, boiler feedwater and agricultural spraying.

A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.

Specifications

  • Size 1/4" to 2" BSP
  • Body 316 Stainless Steel
  • Seat Delrin
  • Pressure  200 BAR
  • Temperature Ambient
  • Actuation Lockable Lever
    • Model Size(BSP) Orifice Size (mm) CV Media Pressure Media Temperature Torque (NM)
    BLSHP2B-L-D 1/4 8 5.3 0 to 200 BAR 40°C 9
    BLSHP3B-L-D 3/8 10 8 0 to 200 BAR 40°C 9
    BLSHP4B-L-D 1/2 12 19 0 to 200 BAR 40°C 12
    BLSHP5B-L-D 3/4 17 35 0 to 200 BAR 40°C 14
    BLSHP6B-L-D 1 22 50 0 to 200 BAR 40°C 19
    BLSHP8B-L-D 1 ½ 35 180 0 to 200 BAR 40°C 41
    BLSHP9B-L-D 2 35 210 0 to 200 BAR 40°C 41
