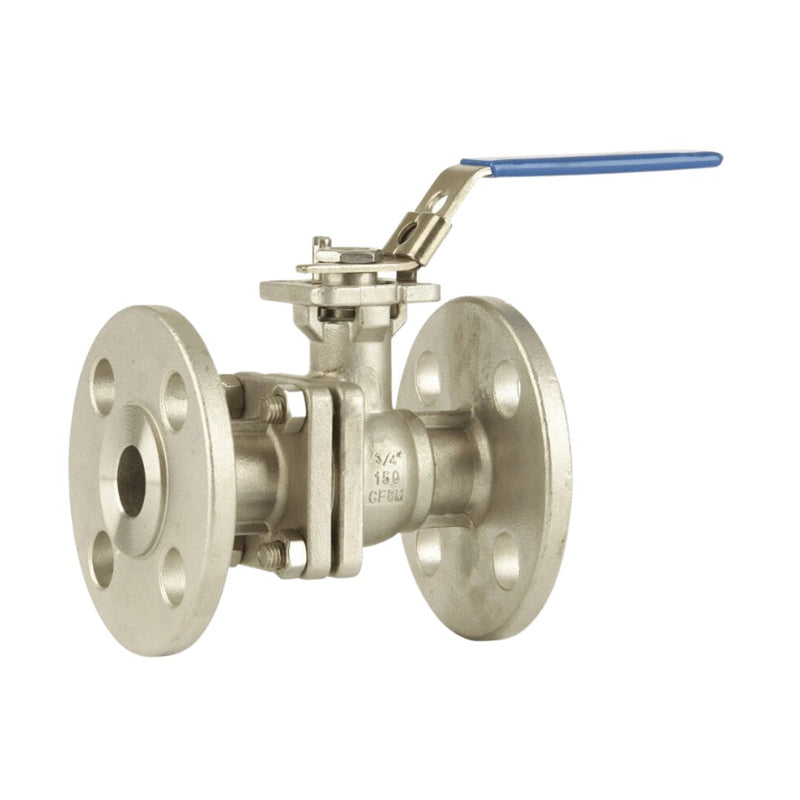

GO Ball Valve Manual Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range
SKU: BLSF4FA-L
$116
GO Ball Valve Manual Flanged ANSI 150# Full Bore Fire Safe 1/2" to 10" Range
- BLSF - SS316 Range
- BLCF - Cast Steel Range
Two piece two way ANSI 150 lb flanged fire safe approved ball valve, lockable lever operation. 316 Stainless Steel or Cast Steel Body, Graphite Filled PTFE seats, FKM backing ring, live loaded packing and anti static device. Firesafe Approved API607 Sixth Edition, Cert. No 218781. ISO5211 Mounting Pad allowing direct coupling of actuation. Great for fuel applications, pipelines, water treatment and general industry.
- Size 15mm to 300mm
- Body 316 Stainless Steel or Cast Steel
- Seat Reinforced Carbon PTFE
- Pressure 150 pound
- Temperature -20°C to 180°C
- Actuation Lockable Lever
- Fire Safe API607 6th E. Cert. No 218781
BLSF SS316 Range
| Model | Size (mm) | Media Pressure | Media Temperature |
|---|---|---|---|
| BLSF4FA-L-RT | 15 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF5FA-L-RT | 20 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF6FA-L-RT | 25 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF7FA-L-RT | 32 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF8FA-L-RT | 40 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF9FA-L-RT | 50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF10FA-L-RT | 63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF11FA-L-RT | 80 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF12FA-L-RT | 100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF13FA-L-RT | 125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF14FA-L-RT | 150 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF15FA-L-RT | 200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF16FA-L-RT | 250 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLSF17FA-L-RT | 300 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
BLCF Cast Steel Range
| Model | Size (mm) | Media Pressure | Media Temperature |
|---|---|---|---|
| BLCF4FA-L-RT | 15 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF5FA-L-RT | 20 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF6FA-L-RT | 25 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF7FA-L-RT | 32 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF8FA-L-RT | 40 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF9FA-L-RT | 50 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF10FA-L-RT | 63 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF11FA-L-RT | 80 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF12FA-L-RT | 100 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF13FA-L-RT | 125 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF14FA-L-RT | 150 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF15FA-L-RT | 200 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF16FA-L-RT | 250 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
| BLCF17FA-L-RT | 300 | Vacuum to 20 BAR (10 BAR Steam) | -20°C to 180°C |
