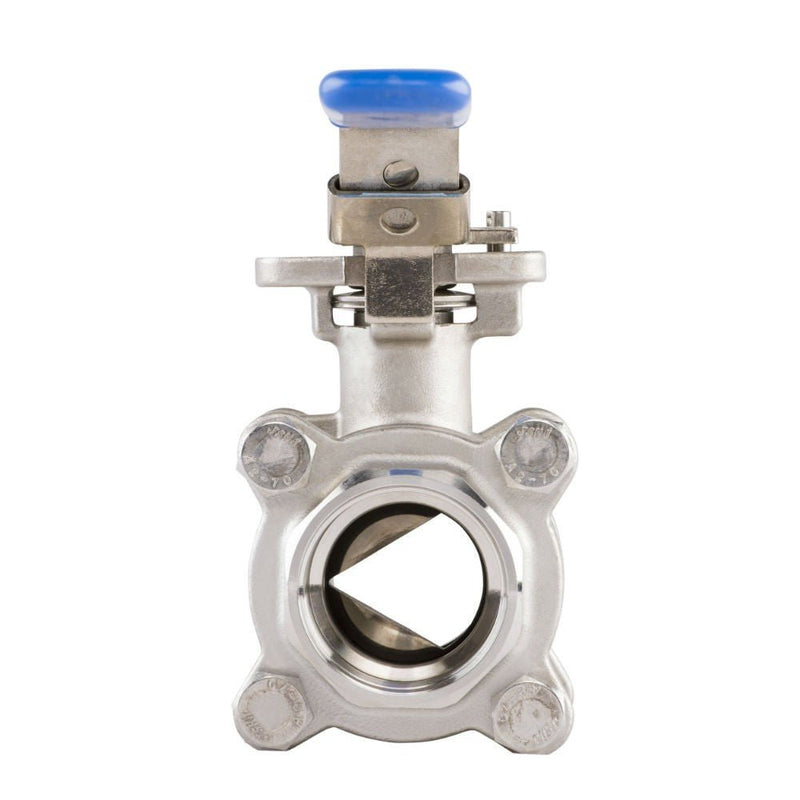

GO Ball Valve V Port 316 Stainless Full Bore 3 Piece 1/2" to 4" BLV Range

SKU: BLV4B-L

GO Ball Valve V Port 316 Stainless Full Bore 3 Piece 1/2" to 4" BLV Range

$83.00 AUD
$83.00 AUD
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

    High performance 3 piece full bore 316 Stainless Steel 60 degree V port ball valve with BSP threaded connections. Self adjusting stem packing assembly with belleville spring for temperature fluctuations and vibration. Pre drilled metric hole on ISO5211 direct mounting pad to minimise any thermal transfer from valve to actuator. Reinforced PTFE seats for temperatures up to 180°C.

            Typically used in situations where a finer degree of flow control is needed.

            Comes with lockable handle. Can be direct mounted with a modulating electric actuator or a spring return or double acting pneumatic actuator with a electro-pneumatic positioner to give positioning.



            Model Size (BSP) Size (mm) Media Pressure Media Temperature
            BLV2B-L-T60 1/4 8 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV3B-L-T60 3/8 10 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV4BT60-L-T60 1/2 15 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV5BT60-L-T60 3/4 20 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV6BT60-L-T60 1 25 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV7BT60-L-T60 1 ¼ 32 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV8BT60-L-T60 1 ½ 40 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV9BT60-L-T60 2 50 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV10BT60-L-T60 2 ½ 65 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV11BT60-L-T60 3 80 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            BLV12BT60-L-T60 4 100 Vacuum to 70 BAR (10 BAR steam) -20°C to 180°C
            • Size 1/4" to 4" BSP
            • Body 316 Stainless Steel 3 piece 60 degree V port
            • Seat Reinforced PTFE
            • Pressure 70 BAR
            • Temperature -20°C to 180°C
            • Actuation Lockable Lever
