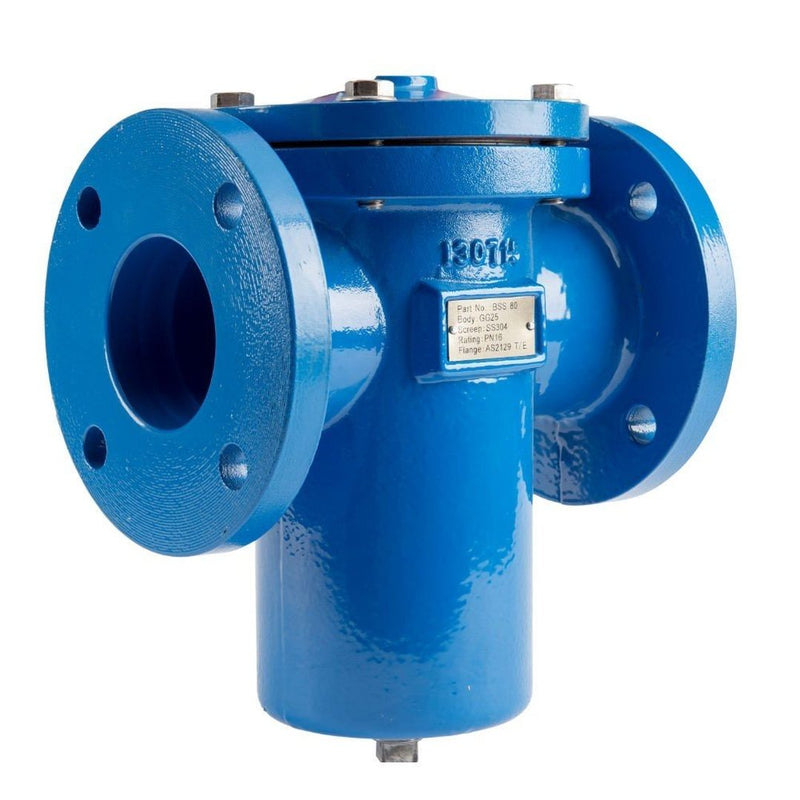

GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range
Construction - GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range
Dimensions - GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range
GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range Construction - GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range Dimensions - GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range

GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range

SKU: BSC-50

$161

GO Basket Strainer Cast Iron Table E 2" to 12" BSC Range

Fusion Bonded Epoxy Coated Cast Iron Basket Strainer Flanged to Table E with 304 Stainless Steel Mesh (mesh size is 40 mesh or 400 micron). All fixings and plugs are 304 Stainless Steel to resist corrosion. Allows a large flow rate with minimal pressure drop across the strainer. This basket strainer is great for waste water or other applications where straining needs to occur with as little as possible pressure drop. Much less than the equivalent size Y strainer. These Cast Iron Basket Strainers are tested in accordance with API 598.

  • Size 50mm to 600mm
  • Body FBE Coated Cast Iron
  • Mesh 304 Stainless Steel
  • Pressure Range 0 to 16 BAR
  • Flanged AS2129 Table E / AS4087 PN16
  • Factory Accredited CE, ISO 9001, TUV, WRAS
Model DN (mm) Pressure Range Media Temp Weight (kg) Plug Size
BSC-050 50 0 to 16 BAR 0 to 80°C 11 ½”
BSC-065 65 0 to 16 BAR 0 to 80°C 19 ¾”
BSC-080 80 0 to 16 BAR 0 to 80°C 21 ¾”
BSC-100 100 0 to 16 BAR 0 to 80°C 33 1”
BSC-125 125 0 to 16 BAR 0 to 80°C 43 1”
BSC-150 150 0 to 16 BAR 0 to 80°C 60 1”
BSC-200 200 0 to 16 BAR 0 to 80°C 100 1 ½”
BSC-250 250 0 to 16 BAR 0 to 80°C 151 1 ½”
BSC-300 300 0 to 16 BAR 0 to 80°C 270 2”
BSC-350 350 0 to 16 BAR 0 to 80°C 450 2”
BSC-400 400 0 to 16 BAR 0 to 80°C 500 2”
BSC-450 450 0 to 16 BAR 0 to 80°C 643 2”
BSC-500 500 0 to 16 BAR 0 to 80°C 850 2”
BSC-600 600 0 to 16 BAR 0 to 80°C 1250 2”
