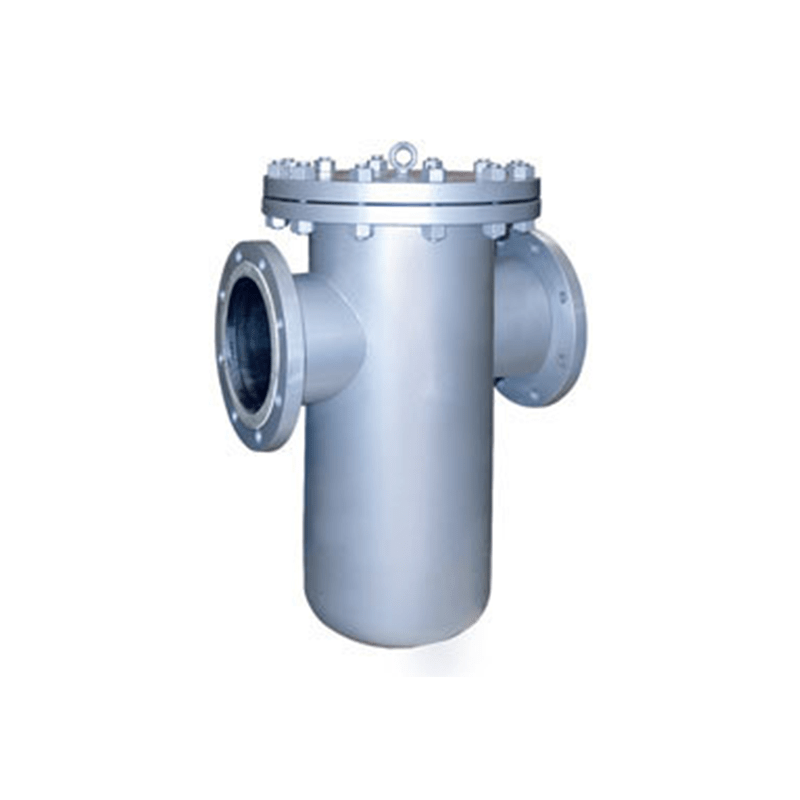

GO Basket Strainer Cast Steel ANSI 150 2" to 12" BSW Range
SKU: BSW-50
$330
GO Basket Strainer Cast Steel ANSI 150 2" to 12" BSW Range
Cast Steel Basket Strainer Flanged to ANSI 150 with 304 Stainless Steel Mesh (mesh size is 40 mesh or 400 micron). Allows a large flow rate with minimal pressure drop. This basket strainer is great for petrochemical or other applications where straining needs to occur with as little as possible pressure drop. Much less than the equivalent size y strainer. All cast steel basket strainers are sand blasted then coated with a heat resistant primer. Designed to ANSI B16.34 with flanges to ANSI B16.5 and tested in accordance with API 598.
- Size 50mm to 300mm
- Body Cast Steel
- Mesh 304 Stainless Steel
- Pressure Range 0 to 10 BAR
- Flanged ANSI 150
- Factory Accredited CE, ISO 9001

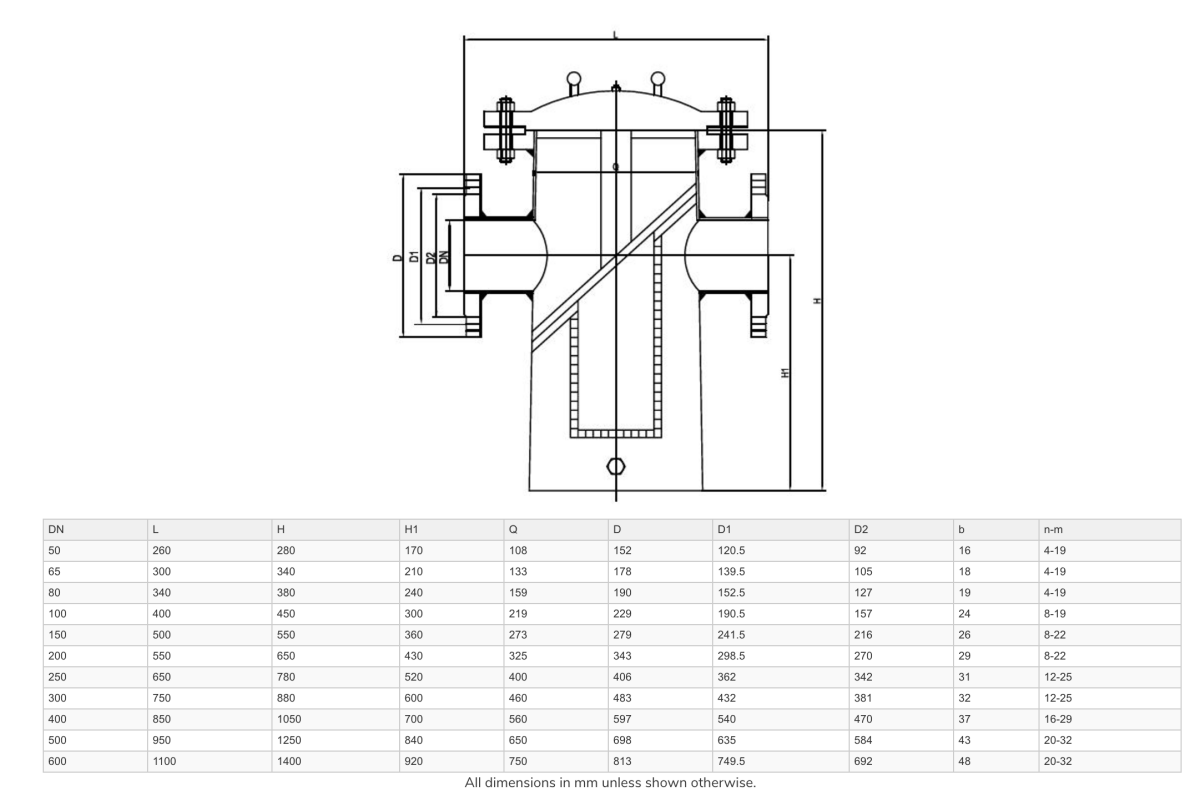

Model | DN (mm) | Pressure Range | Media Temp | Weight (kg) | Plug Size |
---|---|---|---|---|---|
BSW-50 | 50 | 0 to 16 BAR | 0 to 180°C | 17.5 | ½” |
BSW-65 | 65 | 0 to 16 BAR | 0 to 180°C | 21 | ½” |
BSW-80 | 80 | 0 to 16 BAR | 0 to 180°C | 28 | ½” |
BSW-100 | 100 | 0 to 16 BAR | 0 to 180°C | 39.5 | ¾” |
BSW-150 | 150 | 0 to 16 BAR | 0 to 180°C | 64.5 | ¾” |
BSW-200 | 200 | 0 to 16 BAR | 0 to 180°C | 91 | ¾” |
BSW-250 | 250 | 0 to 16 BAR | 0 to 180°C | 133 | 1” |
BSW-300 | 300 | 0 to 16 BAR | 0 to 180°C | 169 | 1” |
BSW-400 | 400 | 0 to 16 BAR | 0 to 180°C | 285 | 1” |
BSW-500 | 500 | 0 to 16 BAR | 0 to 180°C | 440 | 1” |
BSW-600 | 600 | 0 to 16 BAR | 0 to 180°C | 560 | 1” |
