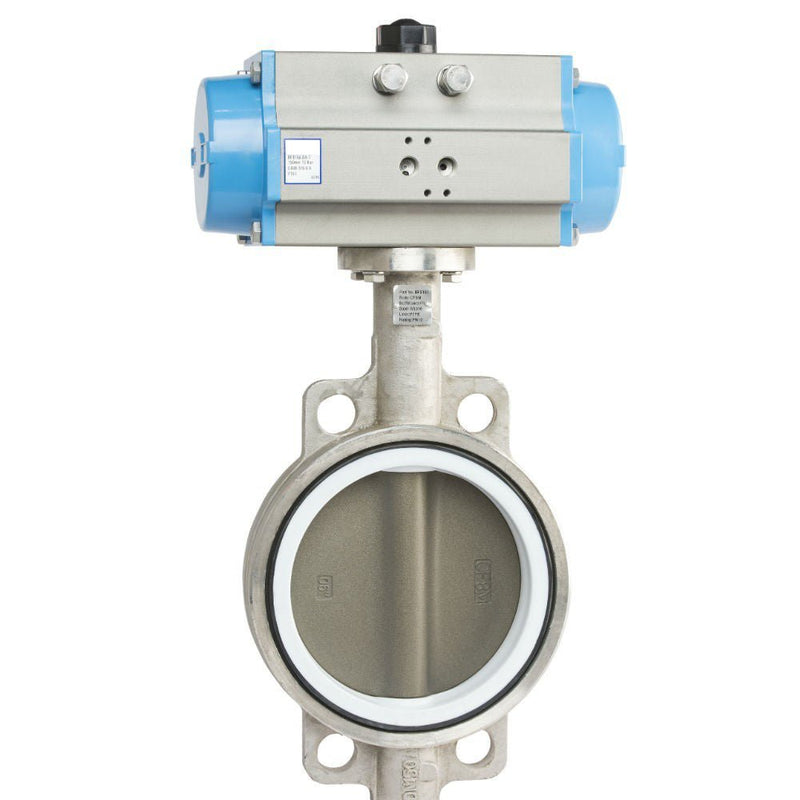

GO Stainless Steel Double Acting Butterfly Valve PTFE
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium double acting pneumatic actuator (rack and pinion design). The unique bonded cartridge design gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.
Specifications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BFS50-DA-T | 50 | DA63 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS65-DA-T | 65 | DA75 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS80-DA-T | 80 | DA75 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS100-DA-T | 100 | DA88 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS125-DA-T | 125 | DA100 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS150-DA-T | 150 | DA115 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS200-DA-T | 200 | DA125 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS250-DA-T | 250 | DA160 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS300-DA-T | 300 | DA180 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
