GO CI Body 316 SS Disc EPDM Liner BFLDA Butterfly Valves Actuated Double Acting Pneumatic Lugged
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

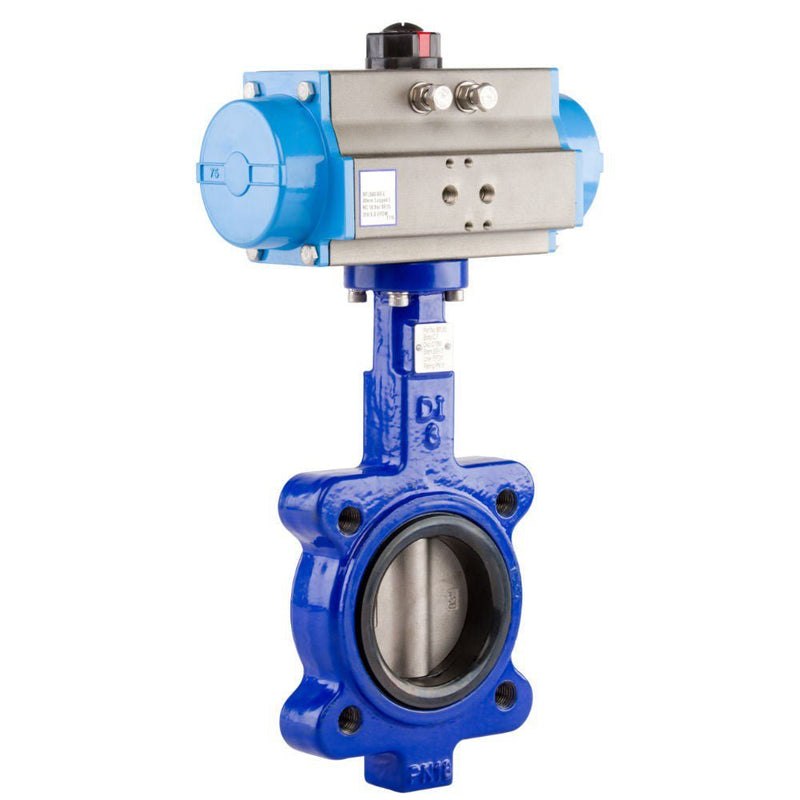

The BFL series of lugged butterfly valves (table E standard) has a cast iron body, 316 stainless steel disc and an EPDM seat, making it suited to a wide range of general water and industrial applications. It is driven by a high quality anodised aluminium double acting (rack and pinion design) pneumatic actuator. The bonded cartridge design gives a longer life span, allows vacuum to be run through the valve and makes the seat replaceable if ever required.
Common applications include water trucks, irrigation, cement hoppers and other industrial applications. If sizes above 300mm, different flange standards or different seat materials are required please contact us.
Included accessories
Specifications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BFL50-DA-E | 50 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL65-DA-E | 65 | DA50 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL80-DA-E | 80 | DA63 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL100-DA-E | 100 | DA75 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL125-DA-E | 125 | DA75 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL150-DA-E | 150 | DA88 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL200-DA-E | 200 | DA115 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL250-DA-E | 250 | DA125 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFL300-DA-E | 300 | DA145 | Vacuum to 16 BAR | -20°C to 120°C | 6 to 8 BAR |
