GO Butterfly Valve Actuated Spring Return Pneumatic 316 SS Body 2
Skip to product information
1 of 1

Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.



Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BFS550-SR-T 50 SR75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS565-SR-T 65 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS580-SR-T 80 SR100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5100-SR-T 100 SR115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5125-SR-T 125 SR125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5150-SR-T 150 SR145 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5200-SR-T 200 SR180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5250-SR-T 250 SR200 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5300-SR-T 300 SR240 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

  • Size 50mm to 300mm
  • Body 316 Stainless Steel
  • Seat PTFE coated EPDM
  • Disc PTFE coated 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Spring Return Pneumatic
    pagination here

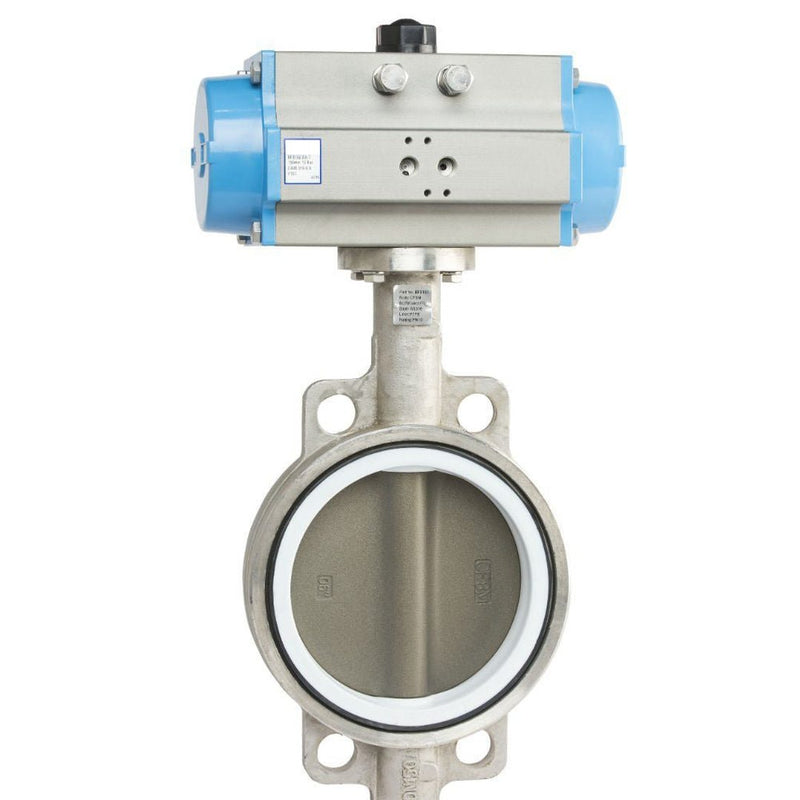

GO Butterfly Valve Actuated Spring Return Pneumatic 316 SS Body 2" to 12" BFSSR Range

SKU: BFS550-SR

GO Butterfly Valve Actuated Spring Return Pneumatic 316 SS Body 2" to 12" BFSSR Range

Regular price $512.00 AUD
Sale price $512.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated EPDM seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium spring return pneumatic actuator (rack and pinion design). The spring return design of the actuator allows it to have a fail safe position should air be lost. The unique bonded cartridge design of the valve gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.

Common applications include food industry, chemicals, pharmaceuticals and other industrial applications. If sizes above 300mm are required please contact us.



Model Size (mm) Actuator Media Pressure Media Temperature Actuator Pressure
BFS550-SR-T 50 SR75 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS565-SR-T 65 SR88 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS580-SR-T 80 SR100 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5100-SR-T 100 SR115 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5125-SR-T 125 SR125 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5150-SR-T 150 SR145 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5200-SR-T 200 SR180 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5250-SR-T 250 SR200 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR
BFS5300-SR-T 300 SR240 Vacuum to 10 BAR -20°C to 120°C 6 to 8 BAR

For Sprung Open the ‘5’ in the product code changes to a ‘6’.

  • Size 50mm to 300mm
  • Body 316 Stainless Steel
  • Seat PTFE coated EPDM
  • Disc PTFE coated 316 Stainless Steel
  • Pressure 16 BAR
  • Actuation Spring Return Pneumatic
    pagination here
