GO 316 SS Body BFSSR Butterfly Valves Actuated Spring Return Pneumatic
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

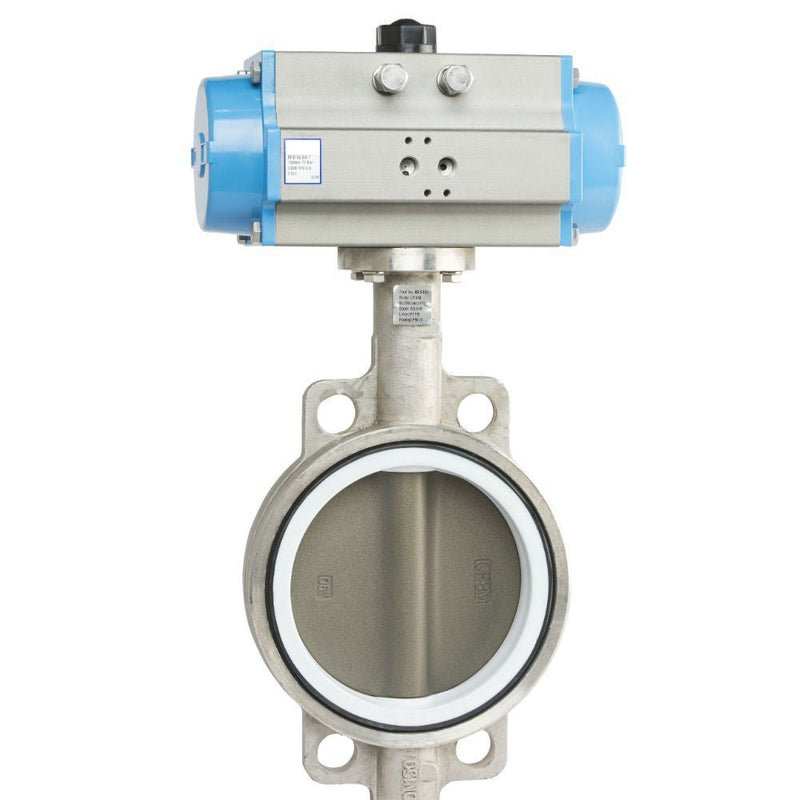

The BFS series of butterfly valve has a 316 Stainless Steel body, PTFE coated 316 S.S disc and a PTFE coated NBR seat making them suited to a wide range of high end applications. These wafer butterfly valves will fit all standard flanges and are operated by a high quality anodised aluminium spring return pneumatic actuator (rack and pinion design). The spring return design of the actuator allows it to have a fail safe position should air be lost. The unique bonded cartridge design of the valve gives them a longer life span, allow vacuum to be run through them and makes them replaceable if ever the need should arise.
Specifications
| Model | Size (mm) | Actuator | Media Pressure | Media Temperature | Actuator Pressure |
|---|---|---|---|---|---|
| BFS550-SR-T | 50 | SR75 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS565-SR-T | 65 | SR88 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS580-SR-T | 80 | SR100 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5100-SR-T | 100 | SR115 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5125-SR-T | 125 | SR125 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5150-SR-T | 150 | SR145 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5200-SR-T | 200 | SR180 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5250-SR-T | 250 | SR200 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
| BFS5300-SR-T | 300 | SR240 | Vacuum to 10 BAR | -20°C to 120°C | 6 to 8 BAR |
For Sprung Open the ‘5’ in the product code changes to a ‘6’.
