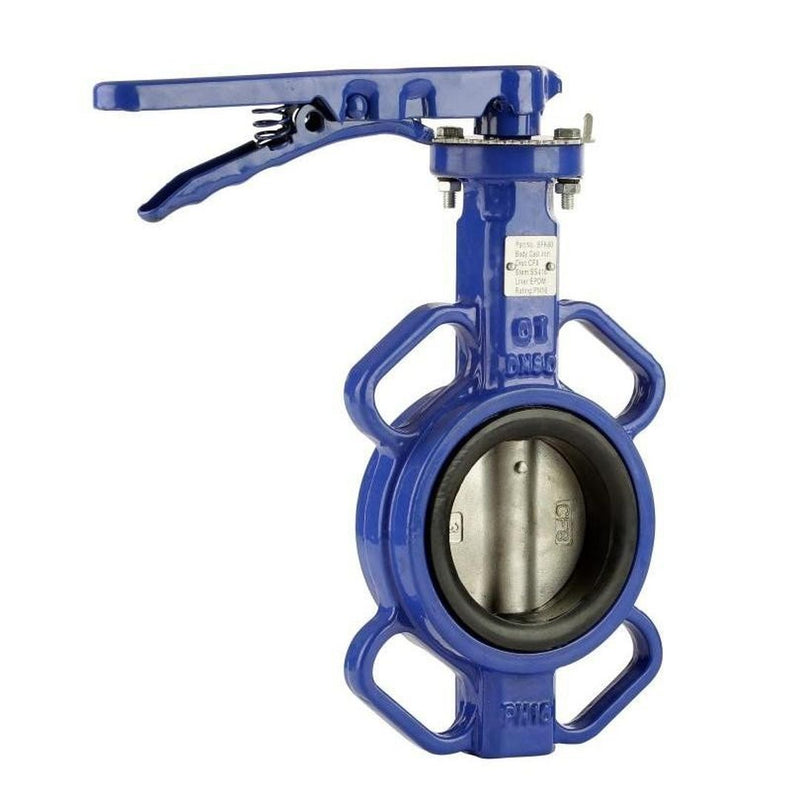

GO Butterfly Valve Manual CI Body 304 SS Disc EPDM Liner 2" to 12" BFK Range

SKU: BFK50-L

$77

GO Butterfly Valve Manual CI Body 304 SS Disc EPDM Liner 2" to 12" BFK Range

The BFK series has a cast iron body, 304 S.S disc and an EPDM seat making them suited to a wide range of general water applications. These wafer butterfly valves will fit all standard flanges and are operated by either a lever or gear box (ISO 5211 mounting pad allows direct mounting). Designed & manufactured in accordance with API609, inspected and tested in accordance with API598.

Common applications include water trucks, irrigation and non corrosive industrial applications.

If sizes above 300mm are required please see BFD series (cast iron, 316 SS disc).

  • Size 50mm to 300mm
  • Body FBE coated Cast Iron
  • Seat EPDM
  • Disc 304 Stainless Steel
  • Pressure 10 BAR
  • Actuation Lever or Gear Box
Model Size (mm) Pressure Range Temperature Square drive size ISO Torque (Nm)
BFK50-L-E 50 0 to 10 Bar -10°C to 100°C 9mm F05 7.5
BFK65-L-E 65 0 to 10 Bar -10°C to 100°C 9mm F05 11
BFK80-L-E 80 0 to 10 Bar -10°C to 100°C 9mm F05 14
BFK100-L-E 100 0 to 10 Bar -10°C to 100°C 11mm F07 26
BFK125-L-E 125 0 to 10 Bar -10°C to 100°C 14mm F07 38
BFK150-L-E 150 0 to 10 Bar -10°C to 100°C 14mm F07 78
BFK200-L-E 200 0 to 10 Bar -10°C to 100°C 17mm F10 110
BFK250-L-E 250 0 to 10 Bar -10°C to 100°C 22mm F10 185
BFK300-L-E 300 0 to 10 Bar -10°C to 100°C 22mm F10 270
