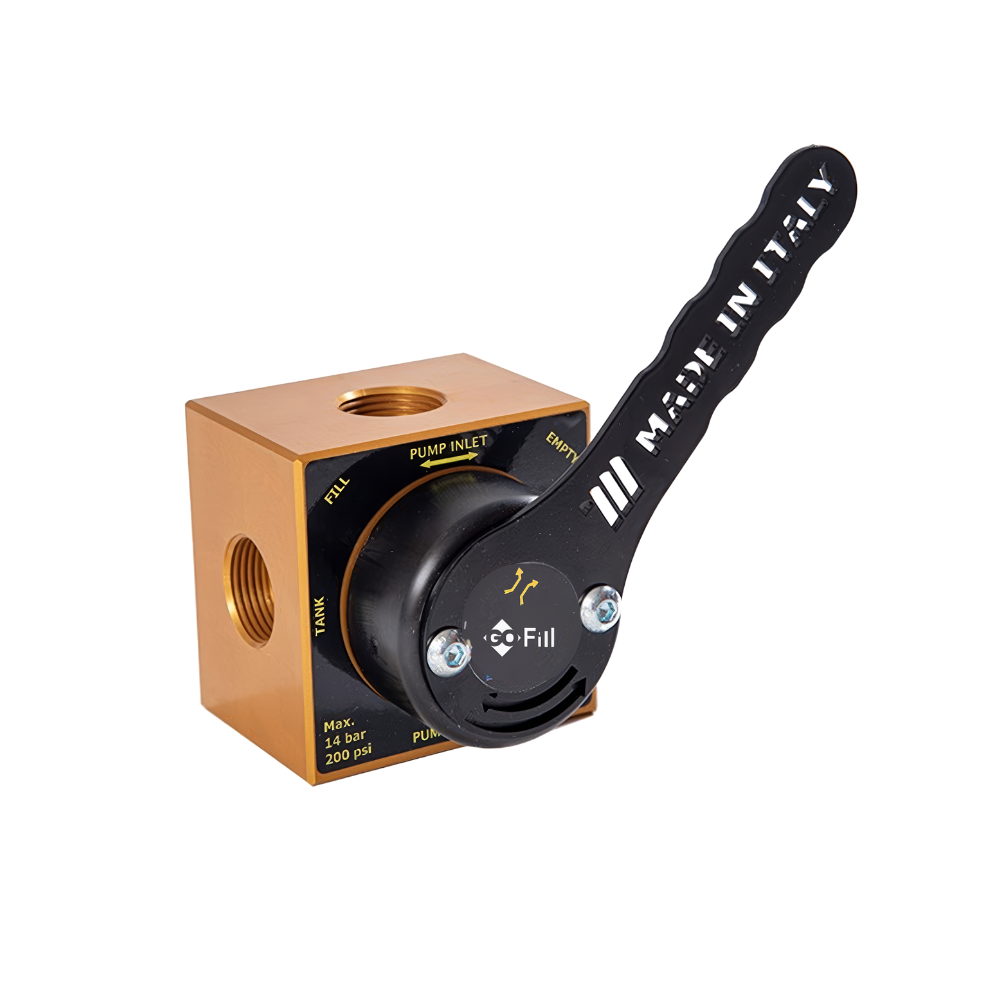

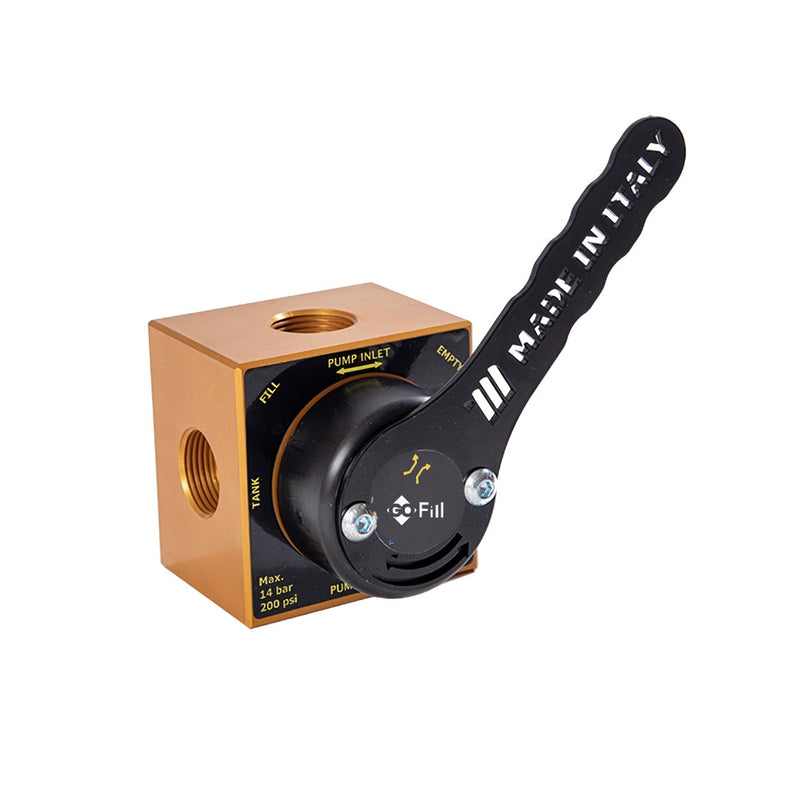

GO Fill 4-Way Evacuation Valve DN25 (1") BSP F
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Directional control valve designed to simplify the filling and emptying of tanks. The valve consolidates multiple flow control functions into a single unit, eliminating the need for separate inlet and outlet valves in fluid transfer systems.
What's it for
Designed to be used in Waste Oil Evacuation, Storage and Discharge systems such as Service Trailers, Trucks and Bulk Tanks.
What it's not for
This valve is not suitable for applications above 14 bar (200 psi), which rules out grease and viscous materials such as paints, and membrane transfer. Sanitary food processing, highly corrosive chemicals and high-pressure hydraulic actuation are also unsuitable. If you are looking at this specific valve for one of those duties, get in touch with our team.
Ordering
For technical enquiries, sizing or commissioning support, contact GO Industrial at sales@goind.com.au or call 07 3204 2240.
Features
- Consolidates fill, empty and pump duties into one valve, removing the need for separate inlet and outlet valves
- Five labelled ports: Fill, Tank, Pump Inlet, Empty and Pump Out
- Anodised steel body and Viton seals resist oil and corrosion
- DN25 (1") BSP female inlet and outlet connections
- 14 bar (200 psi) maximum working pressure
- Designed for waste oil evacuation, storage and discharge on service trailers, trucks and bulk tanks
Specifications
| Brand | GO Fill |
| SKU | F96-0800-006 |
| Type | 4-Way Evacuation Valve |
| Connections | DN25 (1") BSP Female, inlet and outlet |
| Ports | Fill, Tank, Pump Inlet, Empty, Pump Out |
| Body Material | Anodised steel |
| Seals | Viton |
| Max Working Pressure | 14 bar (200 psi) |
| Net Weight | 3.7 kg |
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Common questions.
What size are the connections?
What are the five ports?
What is the maximum working pressure?
What is the valve made from?
What is it used for?
How much does it weigh?
