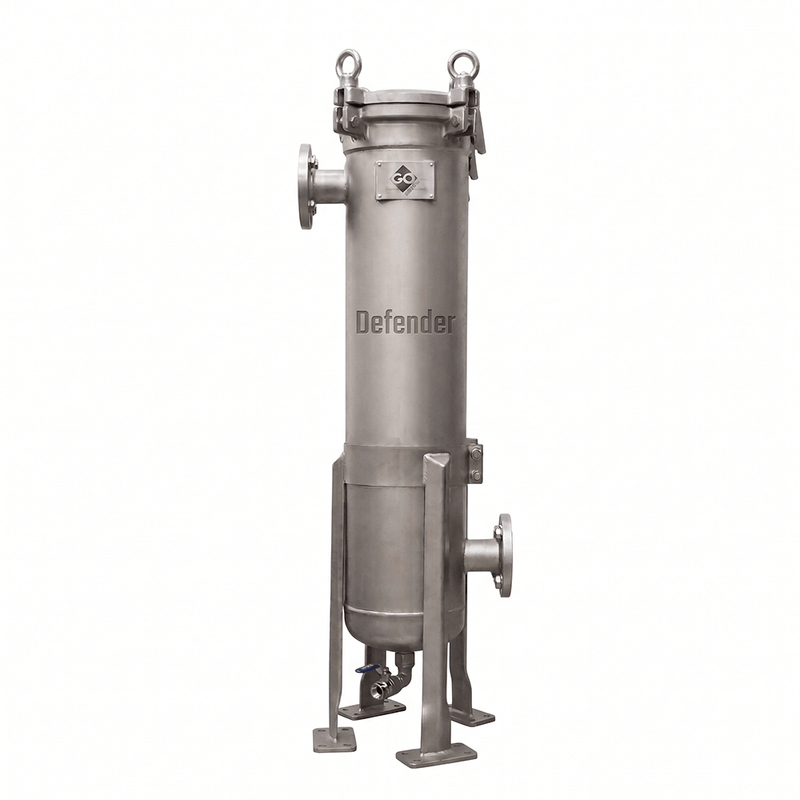

Engineered for high-volume, heavy-duty diesel filtration, the GO FILL Defender Filter Housing Range delivers industrial-grade purification for bulk diesel transfer, storage depots, and mining bowsers. Constructed from high-strength 304 stainless steel and manufactured to pressure vessel standards with ratings up to 2.0 MPa (300 PSI), the GO FILL Defender series is built to handle high flow rates and severe operating conditions with total structural integrity.
Featuring a robust side-inlet design, heavy-duty quick-opening swing eye-bolts, and four reinforced stainless steel mounting legs with pre-drilled pad plates, this housing simplifies element changeouts. Available with ANSI 150# flange connections including DN40 (1 1/2"), DN50 (2"), DN80 (3"), and DN100 (4")
Elements
The GO FILL Defender filtration range acts as the frontline defence in your diesel supply chain, stripping heavy particulate load, and water content to protect downstream equipment and ensure ISO-clean diesel delivery every time.
Features
Built to handle aggressive bulk fuel transfer operations, the GO FILL Defender Filter Range delivers high-capacity, single-bag filtration engineered for flow rates up to 800 LPM. Manufactured to pressure vessel standards and constructed from corrosion-resistant 304 stainless steel, the GO FILL Defender line acts as an uncompromised barrier for high flow diesel dispensing filtration.
-
Ultra-High Throughput: Designed to process up to 800 LPM (50 m³/h) with minimal differential pressure loss across DN40 (1 1/2") to DN100 (4") line sizes.
-
Heavy-Duty Structural Integrity: Pressure-rated up to 2.0 MPa (300 PSI) with an integrated 4-leg mounting base and pre-drilled pad plates for stable floor anchorage.
-
Versatile Media Configurations:
-
Particulate Removal Elements: High-capacity synthetic felt and absolute-rated media options down to 1 micron for heavy contaminant loading.
-
Water Coalescing / Removal Elements: Specialized media inserts designed to strip out free and emulsified water before fuel reaches delivery nozzles.
-
Pre-Pump Strainer Elements: Heavy-gauge stainless steel mesh baskets to catch coarse debris and protect transfer pumps from catastrophic failure.
-
-
Rapid Maintenance Access: Features heavy-duty swing eye-bolts and a top-cover lift mechanism for quick, tool-free bag and element replacement.
-
Fluid Compatibility: designed for diesel, biodiesel blends, lubricants, and hydraulic oils—with optional Viton seals and static grounding for petrol applications.
Specifications
| Product Series | GO FILL Defender (Bulk Transfer Range) |
|---|---|
| Compatible Fluids | Diesel, Biodiesel Blends, Lubricants, and Hydraulic Oils (Petrol compatible with optional FKM/Viton seals & grounding) |
| Max Flow Rate | Up to 800 LPM (50 m³/h / 211 GPM) |
| Max Working Pressure | 2.0 MPa (20 bar / 300 PSI) |
| Inlet / Outlet Sizes | DN40 (1-1/2"), DN50 (2"), DN80 (3"), and DN100 (4") |
| Connection Types | Flanged ANSI 150# |
| Housing Construction | 304 Stainless Steel (Standard) / 316L Stainless Steel (Optional) |
| Filter Bag / Element Size | Size #2 (Ø178 x 813 mm / Ø7" x 32") |
| Filtration Ratings | 1µm to 2000µm |
| Internal Media Options |
|
| Standard Seal Material | NBR (Buna-N) (Viton / PTFE options available) |
| Closure Style | Heavy-duty Quick-Opening Swing Eye-Bolts |
| Mounting | Integrated 4-leg SS support frame with pre-drilled bolt-down pad plates |
| Volume Capacity | 28 Litres |
