Features

• Effective 10µm particulate filtration (ß₁₀(c) ≥ 200)
• Integrated water absorption capability
• Specialized fiber glass filter media
• Disposable, non-cleanable element
• Durable FKM seal
• Direct flow design (no internal bypass valve)
• High pressure tolerance (24 bar working pressure)
• Compatible with specific Donaldson housings (DBB0248)

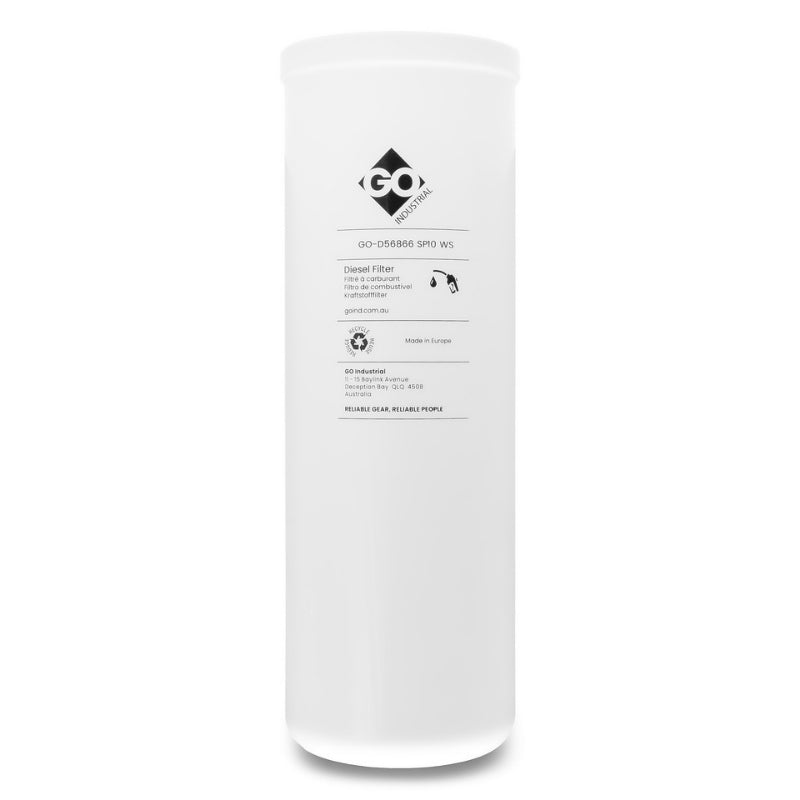

GO Filter Element 10µm Water Removal

Overview

This GO Industrial filter element is specifically designed for applications requiring both particulate filtration and water separation. It effectively removes contaminants down to 10µm (ß₁₀(c) ≥ 200 per ISO 16889) while also absorbing water from the fluid, thanks to its specialised fiber glass filter media. Constructed as a disposable, non-cleanable element with a robust FKM seal, it ensures reliable performance and protection against both particulate and water contamination. This element is compatible with housings requiring Donaldson DBB0248 filter elements.

How it Works

Once installed onto a compatible filter head, this element directs fluid flow through its specialised fiber glass media. As the fluid passes through, the media performs two crucial functions simultaneously: it captures solid particulate contaminants down to 10 microns, and it absorbs entrained water. Clean, dry fluid then exits the filter centrally. Because it lacks an internal bypass valve, all fluid is forced through the media, ensuring effective filtration and water removal until the element reaches its capacity and requires replacement.

Data Sheet
GO Data Sheet Filter Element Water Removal GO-D56866-SP10WS

Specifications

• Max. ∆p: 12 bar
• Seal: FKM
• Bypass Valve: No
• Max. Working Pressure: 24 bar
• Filter Surface: 10 µm: 5.927 cm²
• Characteristic: Water Removal

Dimensions

• External Diameter: 117mm
• Screw Thread Designation: 1" ¾ - 12 UN 2B
• Length: 362mm

Features

• Effective 10µm particulate filtration (ß₁₀(c) ≥ 200)
• Integrated water absorption capability
• Specialized fiber glass filter media
• Disposable, non-cleanable element
• Durable FKM seal
• Direct flow design (no internal bypass valve)
• High pressure tolerance (24 bar working pressure)
• Compatible with specific Donaldson housings (DBB0248)
