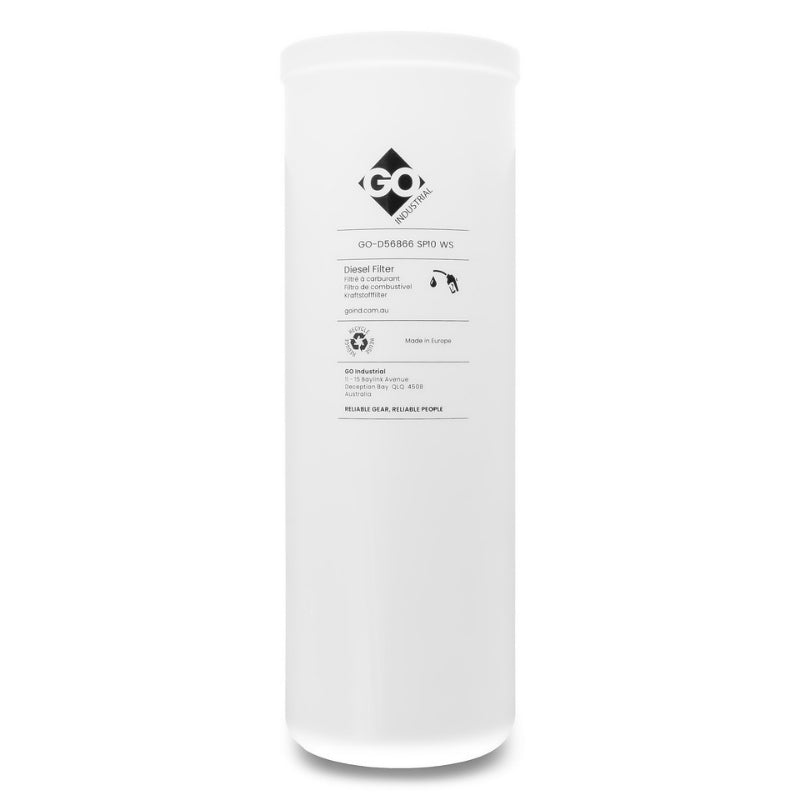

This GO FILL 10um filter element is specifically designed for applications requiring the removal of water from a diesel dispensing system. The GO Fill filter element effectively removes contaminants down to 10µm (ß₁₀(c) ≥ 200 per ISO 16889) while also absorbing water from the diesel fuel, thanks to its specialised fibre glass filter media.
Constructed as a disposable, non-cleanable element with a robust FKM seal, it ensures reliable performance and protection against water contamination.
The filter element compatible for replacement of Donaldson DBB0248 Elements, and use with Donaldson P570330 and P568583 Filter Heads
How it Works
Once installed onto a compatible filter head, this GO FILL filter element directs diesel flow through its specialised fibre glass media.
As the diesel passes through, the media performs two crucial functions simultaneously: it captures solid particulate contaminants down to 10 microns, and it absorbs entrained water.
Clean, dry fluid then exits the filter centrally. Because it lacks an internal bypass valve, all fluid is forced through the media, ensuring effective filtration and water removal until the element reaches its capacity and requires replacement.
Features
Features
- Effective 10µm particulate filtration (ß₁₀(c) ≥ 200)
- Integrated water absorption capability
- Specialized fiber glass filter media
- Disposable, non-cleanable element
- Durable FKM seal
- Direct flow design (no internal bypass valve)
- High pressure tolerance (24 bar working pressure)
- Compatible with specific Donaldson housings (DBB0248)
Specifications
- Max. ∆p: 12 bar
- Seal: FKM
- Bypass Valve: No
- Max. Working Pressure: 24 bar
- Filter Surface: 10 µm: 5.927 cm²
- Characteristic: Water Removal
Dimensions
- External Diameter: 117mm
- Screw Thread Designation: 1" ¾ - 12 UN 2B
- Length: 362mm
