GO FILL FILTER Element Diesel Particulate 6um Donaldson Compatible
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

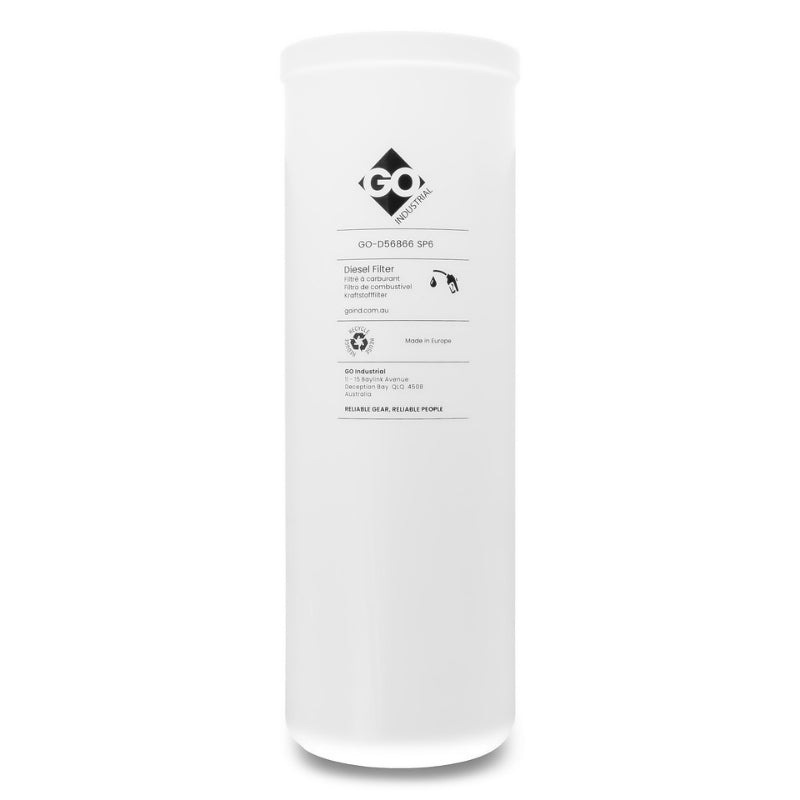

This high-performance GO FILL Filter Element, from GO Industrial, is compatible for replacement of Donaldson DBB8666 and DBB8777 Elements, and use with Donaldson P570330 and P568583 Filter Heads
The GO Fill 6um filter element provides reliable diesel particulate filtration for demanding industrial applications. The 6µm filtration rating uses a high-efficiency fibre glass filter media. Designed as a disposable element with inorganic, non-cleanable material, it ensures consistent performance and system protection.
How it Works

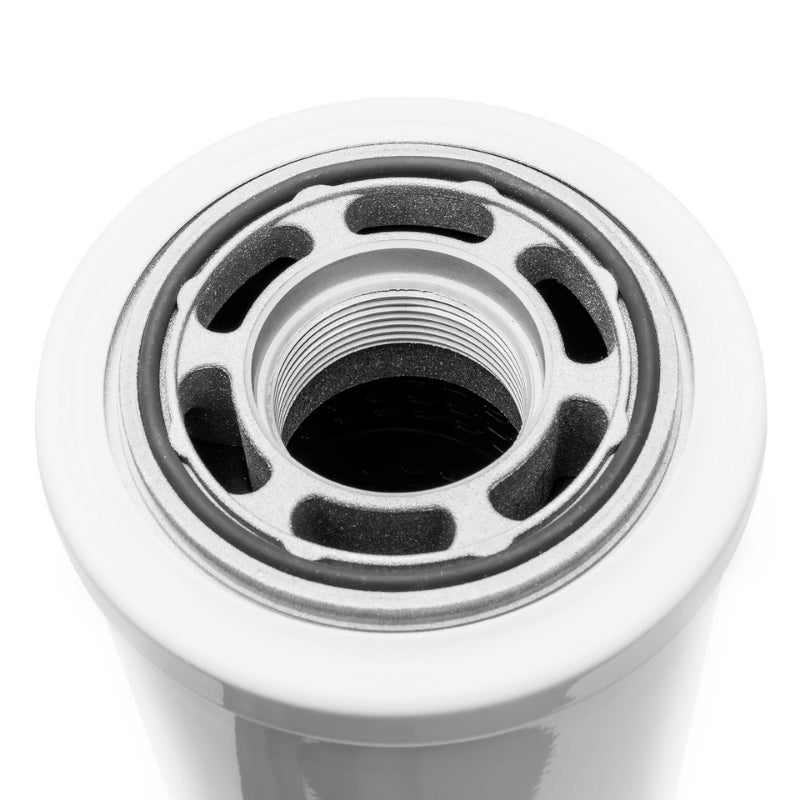

Installed by spinning onto a compatible housing with its FKM seal ensuring a tight fit, this filter directs fluid flow from the outside inward through its high-efficiency 6µm fibre glass media. Particulates are captured from the Diesel dispensing system within the media's depth, allowing clean fluid to exit centrally back into the system. As a disposable element without a bypass valve, it ensures full-flow filtration up to its capacity, after which it must be replaced.
Features
Features
- High-efficiency 6µm filtration (β₇(c) ≥ 200)
- Advanced fiber glass filter media
- Disposable, non-cleanable element
- Durable FKM seal
- Direct flow design (no internal bypass valve)
- High pressure tolerance (24 bar working pressure)
- High dirt-holding capacity (7,212 cm² surface area)
- Compatible with specific Donaldson housings (DBB8666 & DBB8777)
Specifications
- Max. ∆p: 12 bar
- Seal: FKM
- Bypass Valve: No
- Max. Working Pressure: 24 bar
- Filter Surface: 6 µm: 7,212 cm²
Dimensions
- External Diameter: 117mm
- Screw Thread Designation: 1" ¾ - 12 UN 2B
- Length: 362mm
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
