GO Filter Regulator Range FRE

SKU: FRE-02

$88

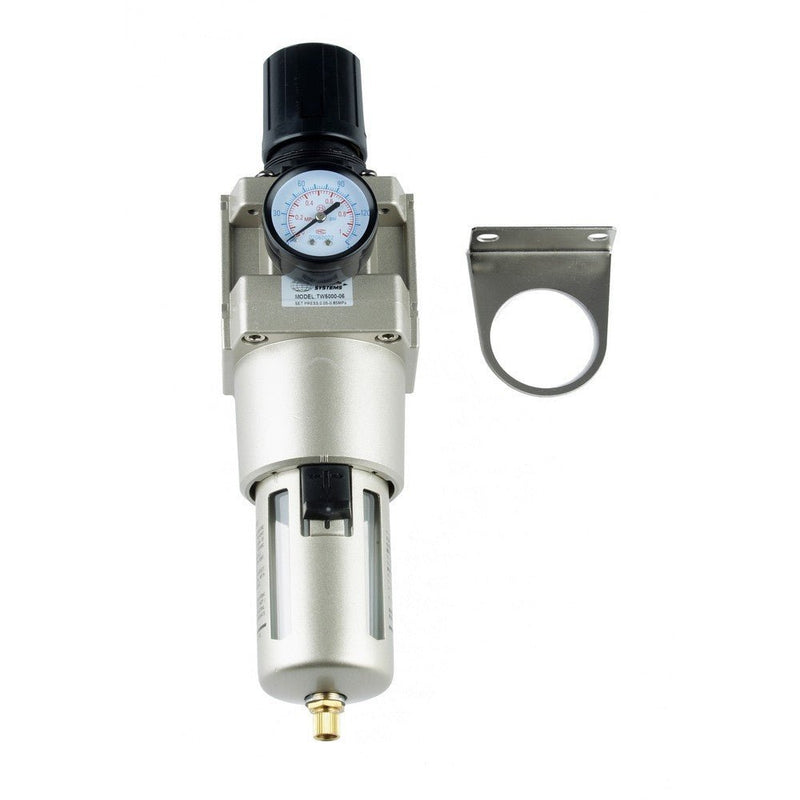

GO Filter Regulator Range FRE

Allows you to effectively regulate (keep a constant downstream pressure) and filter (remove water, oil and other suspended debris) your air using one combined unit. Simple assembly makes for easy installation and maintenance. All units come with mounting bracket, gauge, auto drain and polycarbonate bowl guard with sight glass.

  • Size 1/4" to 1" BSP
  • Function Filter Regulator with auto drain
  • Body Die Cast Aluminium
  • Pressure Range 0.5 to 8.5 BAR
  • Media Air
Specification FRE-02 FRE-03 FRE-04 FRE-05 FRE-06
Port Size (BSPP) 1/4” 3/8” 1/2” 3/4” 1”
Flow Rate L/min 550 2000 4000 5000 5000
Pressure Range 0.5 BAR to 8.5 BAR
Max Inlet Pressure 10 BAR
Medium Temperature 0 to 60°C
Media Air
Filtration 5µm
Relief Pressure Set Pressure + 0.5 BAR (relief flow rate of 0.1 L/min)
Construction Relief Type
Gauge Port Size G1/8” G1/4”
