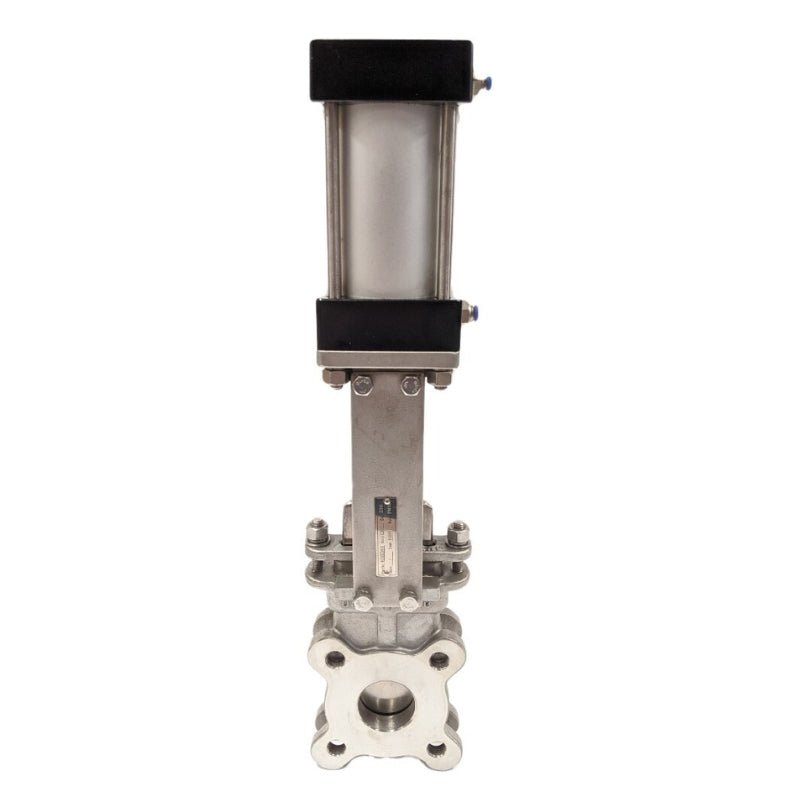

GO KGSDA 316 Stainless Knifegate Valves Actuated Double Acting Pneumatic

SKU KGSDAM-50
Afterpay Zip PayPal LeaseGO
$1,111.00
Tax included. Shipping calculated at checkout.
Size
Seat Material
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

316 Stainless Steel lugged knife gate valve with 316 stainless steel body and gate. Operated by a double acting pneumatic actuator and suitable for up to 10 BAR media pressure. Great for slurries, effluent and sewerage treatment plants. Suits table E flanges. Unique design allows for a long life and low maintenance once installed. Other flanges available upon request. Available in resilient seat (NBR) and metal seat. Designed in accordance with MSS SP-81. Limit switches are an optional extra (shown for mounting reference only).

          Specifications
        • Size 50mm to 600mm
        • Body 316 Stainless Steel
        • Seat Metal or NBR
        • Gate 316 Stainless Steel
        • Pressure 10 BAR
        • Actuation Double Acting Pneumatic
          • Model Size (mm) Pressure Range Media Temperature Weight (kg) Cylinder Port Size
          KGSDA*-50 50 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 7 3/8"
          KGSDA*-65 65 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 8 3/8"
          KGSDA*-80 80 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 13 1/2"
          KGSDA*-100 100 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 15 1/2"
          KGSDA*-125 125 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 23 1/2"
          KGSDA*-150 150 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 35 1/2"
          KGSDA*-200 200 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 45 1/2"
          KGSDA*-250 250 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 75 1/2"
          KGSDA*-300 300 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 115 1/2"
          KGSDA*-350 350 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 169 1/2"
          KGSDA*-400 400 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 295 1/2"
          KGSDA*-450 450 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 390 1/2"
          KGSDA*-500 500 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 340 1/2"
          KGSDA*-600 600 0 to 10 BAR 0°C to 80°C NBR, 150°C Metal 460 1/2"

          *Insert N for NBR or M for Metal seats. Sizes up to 2400 available upon request.
