GO Pressure Gauge 100mm 1/4" BSP Bottom Entry 316 SS GAU100BS Range

SKU: GAU100BS-1000

$94

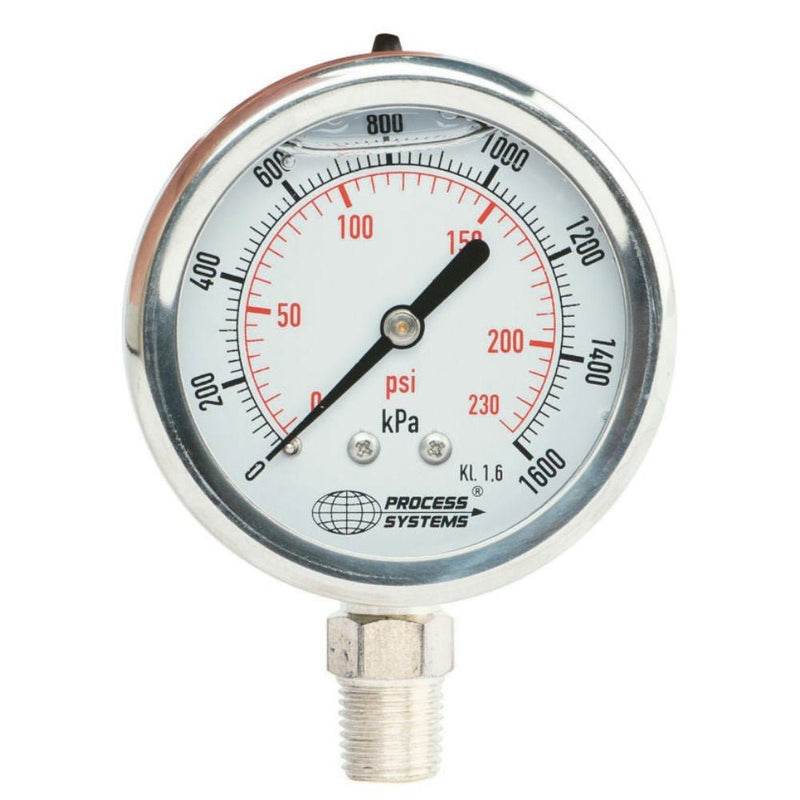

GO Pressure Gauge 100mm 1/4" BSP Bottom Entry 316 SS GAU100BS Range

Full Stainless Steel 100mm glycerine filled pressure gauge with stainless steel internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.0% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.

  • Pressure Range -100 kpa to 2500 kpa
  • Body 316 Stainless Steel
  • Function Dual Scale Kpa/PSI glycerine filled pressure gauge
  • Connection 3/8" BSPT Bottom Entry
  • Factory Accredited CE, ISO 9001, TUV
Model Range
GAU100BS~1000 0 to 1000 kpa
GAU100BS~1600 0 to 1600 kpa
GAU100BS~2500 0 to 2500 kpa

Size 100mm (4")
Accuracy +/- 1.0%
Range Depends upon model
Work Pressure 3/4 of full scale
Fluctuating pressure 2/3 of full scale
Short Time Pressure Full Scale
Operating Temperature -10°C to 60°C
Media Compatible gases and liquids
Housing 316 Stainless Steel Case with Bayonnet Bezel
Window Polycarbonate
Liquid Filled Glycerine
Bourdon Tube 316 Stainless Steel
Movement 316 Stainless Steel
Connection 316 Stainless Steel
Thread 3/8" BSPT
Scale Dual Scale Kpa/Psi
