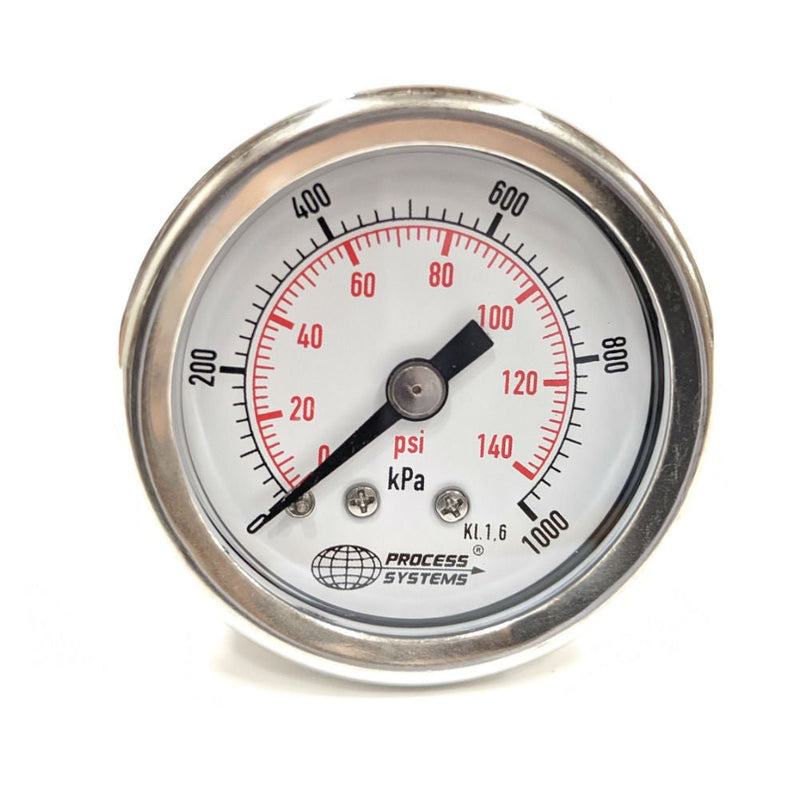

GO 1/8" BSP Rear Entry 304 SS Case Pressure Gauge 40mm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
40mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -20°C to 60°C. For use on compatible gases and liquids. All pressure gauges are calibrated and tested to ensure accuracy and reliability.
Specifications
| Size | 40mm (1 1/2") |
| Accuracy | +/- 1.6% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 304 Stainless Steel Case and crimped ring |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | Copper alloy |
| Movement | Copper alloy |
| Connection | Brass |
| Thread | BSPT |
| Scale | Dual Scale Kpa/Psi |
