GO 1/4" BSP Bottom Entry 304 SS Case Pressure Gauges 63mm

Name: GO 1/4" BSP Bottom Entry 304 SS Case Pressure Gauges 63mm
Brand: Process Systems
SKU: GAU63B-100C
Price: 24.2 AUD
Availability: InStock

Overview

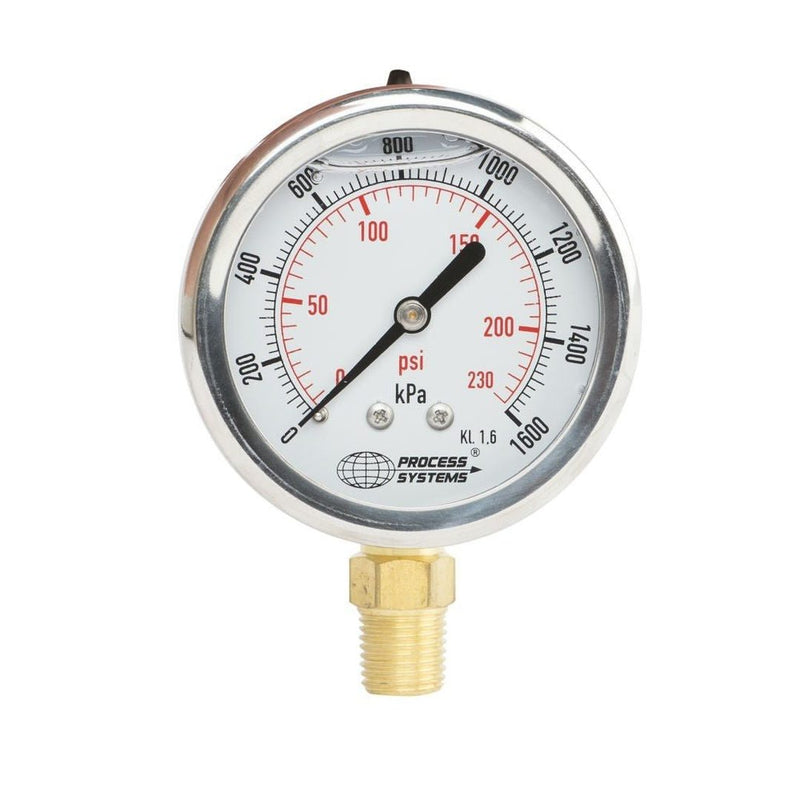

Stainless Steel Case 63mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Read our complete warranty terms & conditions here.

All our online payment methods are secured.

Specifications

Pressure Range -100 kpa to 40,000 kpa

Body Stainless Steel

Function Dual Scale Kpa/PSI glycerine filled pressure gauge

Connection 1/4" BSP Bottom Entry

Factory Accredited CE, ISO 9001, TUV

Model	Range
GAU63B~-100	-100 to 0 kpa vacuum
GAU63B~-100C	-100 to 1600 kpa
GAU63B~-100	0 to 100 kpa
GAU63B~200	0 to 200 kpa
GAU63B~400	0 to 400 kpa
GAU63B~600	0 to 600 kpa
GAU63B~800	0 to 800 kpa
GAU63B~1000	0 to 1000 kpa
GAU63B~1600	0 to 1600 kpa
GAU63B~2500	0 to 2500 kpa
GAU63B~4000	0 to 4000 kpa
GAU63B~250B	0 to 25000 kpa
GAU63B~400B	0 to 40000 kpa

Size	63mm (2 1/2")
Accuracy	+/- 1.6%
Range	Depends upon model
Work Pressure	3/4 of full scale
Fluctuating pressure	2/3 of full scale
Short Time Pressure	Full Scale
Operating Temperature	-10°C to 60°C
Media	Compatible gases and liquids
Housing	304 Stainless Steel Case and crimped ring
Window	Polycarbonate
Liquid Filled	Glycerine
Bourdon Tube	Copper alloy
Movement	Copper alloy
Connection	Brass
Thread	BSPT up too 4000kpa BSPP above
Scale	Dual Scale Kpa/Psi
