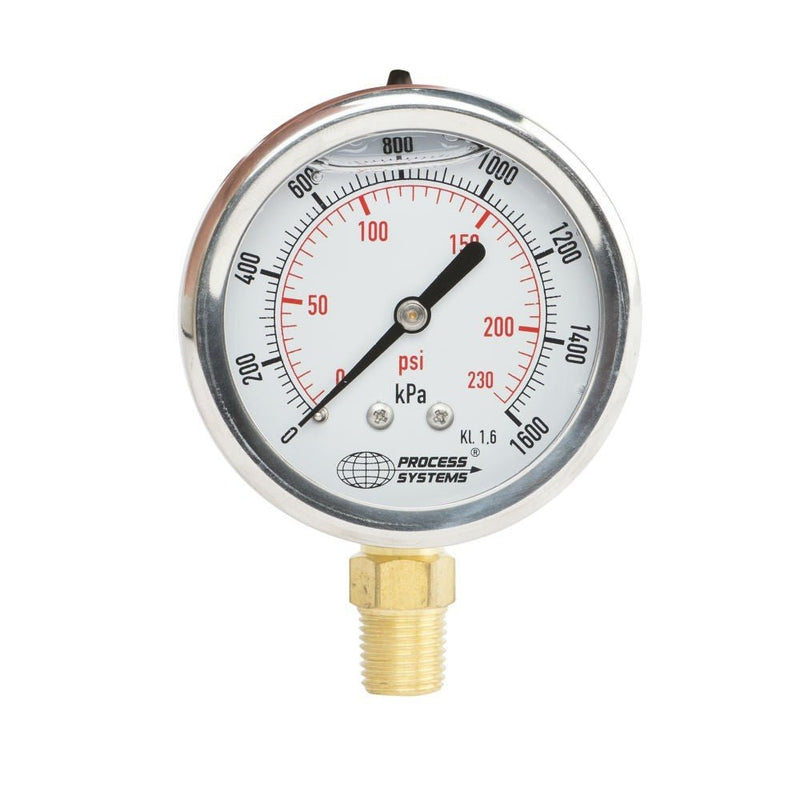

GO 1/4" BSP Bottom Entry 304 SS Case Pressure Gauges 63mm
SKU GAU63B-1600
$24.20
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Stainless Steel Case 63mm glycerine filled pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Accuracy +-1.6% of full scale. Operating temp of -20°C to 60°C. For use on compatible gases and liquids.
Specifications
| Model | Range |
|---|---|
| GAU63B~-100 | -100 to 0 kpa vacuum |
| GAU63B~-100C | -100 to 1600 kpa |
| GAU63B~-100 | 0 to 100 kpa |
| GAU63B~200 | 0 to 200 kpa |
| GAU63B~400 | 0 to 400 kpa |
| GAU63B~600 | 0 to 600 kpa |
| GAU63B~800 | 0 to 800 kpa |
| GAU63B~1000 | 0 to 1000 kpa |
| GAU63B~1600 | 0 to 1600 kpa |
| GAU63B~2500 | 0 to 2500 kpa |
| GAU63B~4000 | 0 to 4000 kpa |
| GAU63B~250B | 0 to 25000 kpa |
| GAU63B~400B | 0 to 40000 kpa |
| Size | 63mm (2 1/2") |
| Accuracy | +/- 1.6% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 304 Stainless Steel Case and crimped ring |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | Copper alloy |
| Movement | Copper alloy |
| Connection | Brass |
| Thread | BSPT up too 4000kpa BSPP above |
| Scale | Dual Scale Kpa/Psi |
