GO Pressure Gauge 63mm 1/4" BSP Rear Entry 304 SS Case GAU63R Range
SKU: GAU63R~-100
$20
GO Pressure Gauge 63mm 1/4" BSP Rear Entry 304 SS Case GAU63R Range

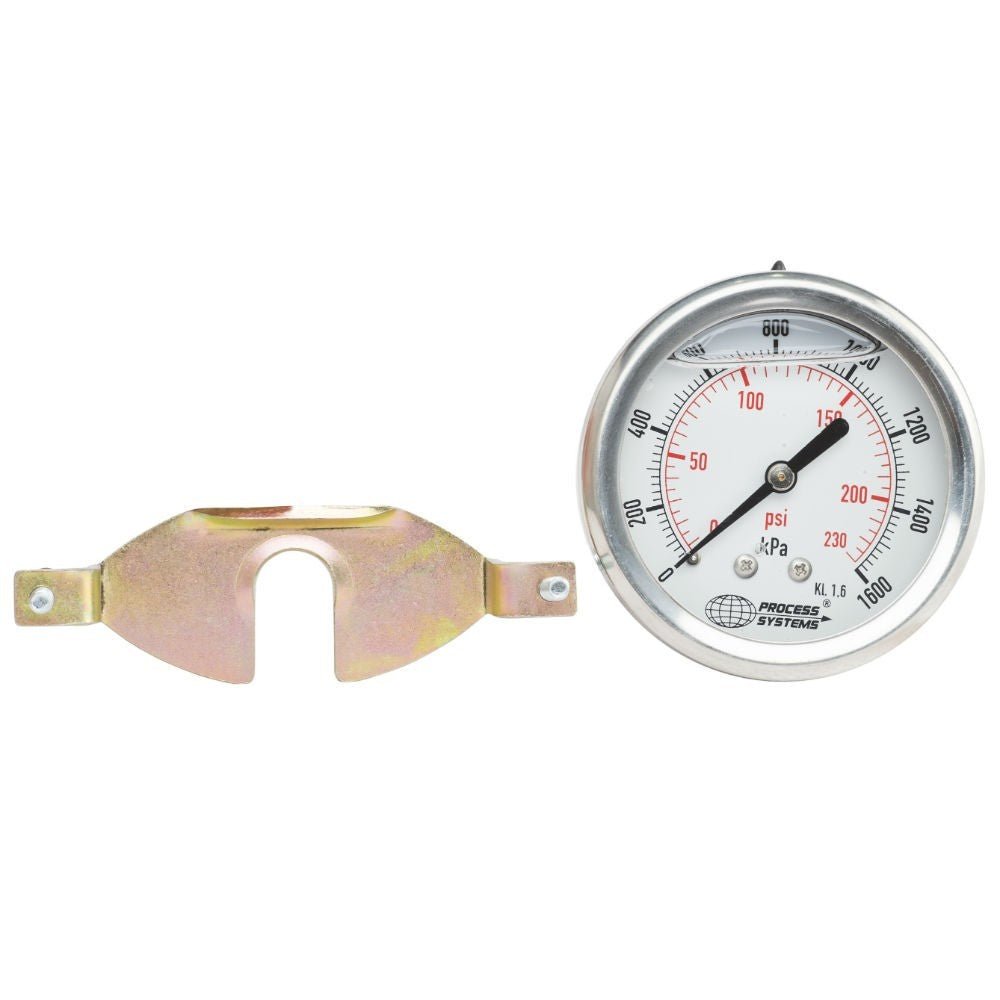

63mm 304 Stainless Steel Case glycerine filled rear entry pressure gauge with brass internals and entry. Crimped ring housing with polycarbonate window. Dual scale kpa/psi. Operating temperature of -20°C to 60°C. Comes with removable panel mount clamp to give panel mounting option. For use on comparable gases and liquids. All pressure gauges are calibrated and tested to ensure accuracy and reliability.
- Pressure Range -100 kpa to 4000 kpa
- Body Stainless Steel
- Function Dual Scale Kpa/PSI glycerine filled pressure gauge

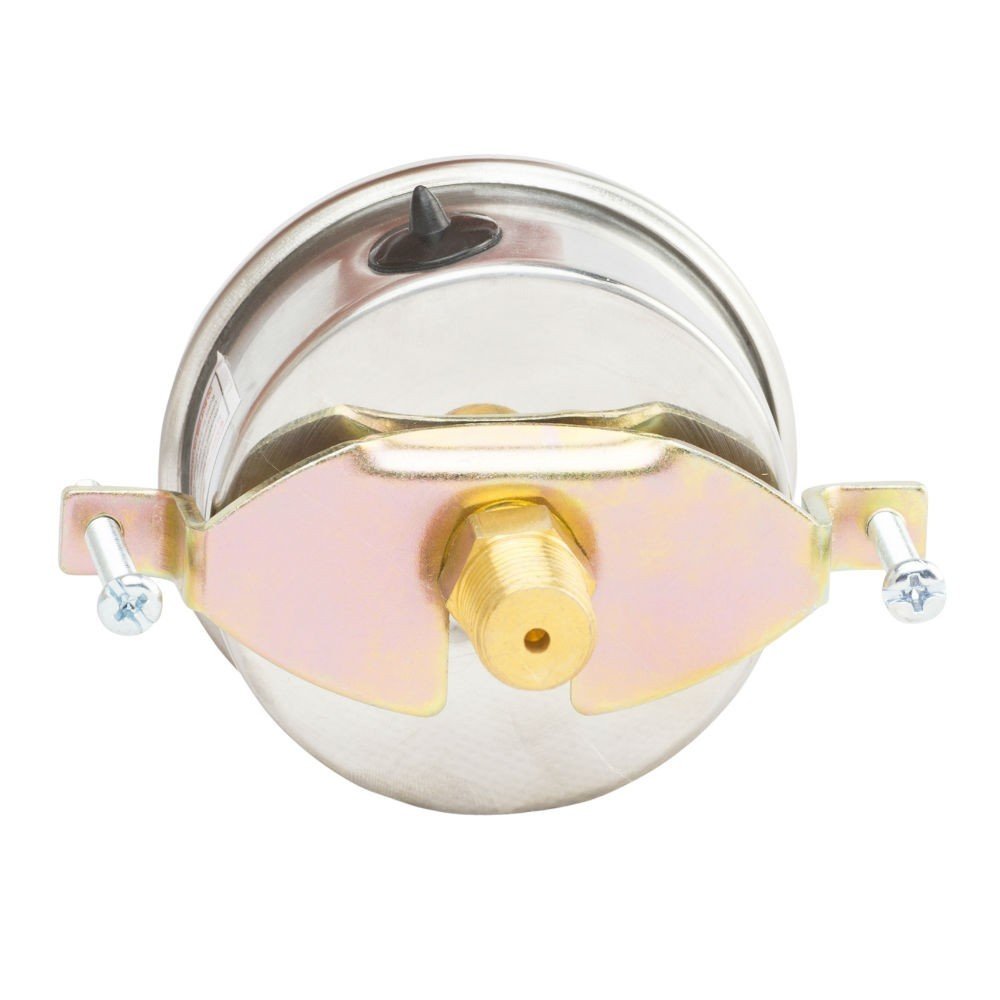

- Connection 1/4" BSPT Rear Entry
- Factory Accredited CE, ISO 9001, TUV
| Model | Range |
|---|---|
| GAU63R~-100 | -100 to 0 kpa vacuum |
| GAU63R~-100C | -100 to 1600 kpa |
| GAU63R~-100 | 0 to 100 kpa |
| GAU63R~200 | 0 to 200 kpa |
| GAU63R~400 | 0 to 400 kpa |
| GAU63R~600 | 0 to 600 kpa |
| GAU63R~800 | 0 to 800 kpa |
| GAU63R~1000 | 0 to 1000 kpa |
| GAU63R~1600 | 0 to 1600 kpa |
| GAU63R~2500 | 0 to 2500 kpa |
| GAU63R~4000 | 0 to 4000 kpa |
| Size | 63mm (2 1/2") |
| Accuracy | +/- 1.6% |
| Range | Depends upon model |
| Work Pressure | 3/4 of full scale |
| Fluctuating pressure | 2/3 of full scale |
| Short Time Pressure | Full Scale |
| Operating Temperature | -10°C to 60°C |
| Media | Compatible gases and liquids |
| Housing | 304 Stainless Steel Case and crimped ring |
| Window | Polycarbonate |
| Liquid Filled | Glycerine |
| Bourdon Tube | Copper alloy |
| Movement | Copper alloy |
| Connection | Brass |
| Thread | BSPT |
| Scale | Dual Scale Kpa/Psi |
