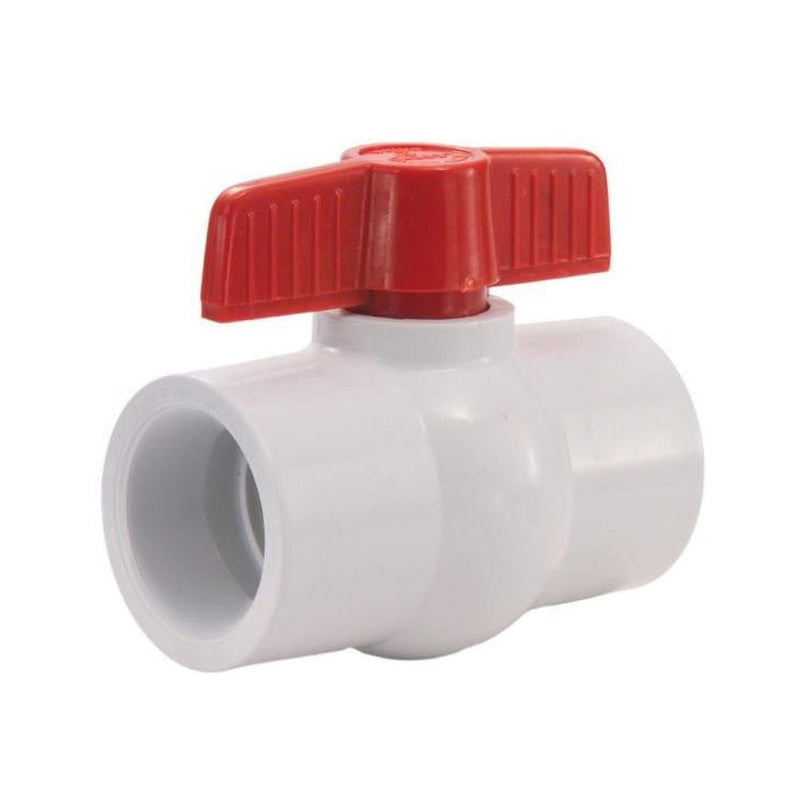

GO PVC Ball Valve Range Socket Weld

SKU: VPVC15S

$6

GO PVC Ball Valve Range Socket Weld

  • Size Range - 15mm-100mm
  • Body - ABS
  • Seal Seat - ABS
  • Ball Stem - NBR
  • O Ring - PVC, CPVP, ABS
  • Handle - EPDM
  • Cap - PVC, CPVP, ABS

  • Maximum Working Temperature - 120 deg C
  • Cold Working Pressure - 800 kpa
  • Typical Applications - Agriculture, turf and home watering

  • A ball valve is a form of quarter-turn valve which uses a hollow, perforated and pivoting ball to control flow through it. It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle.  The handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

    Ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These qualities make them an excellent choice for shutoff and control applications, where they are often preferred to gate and globe valves, but they lack their fine control in throttling applications.
