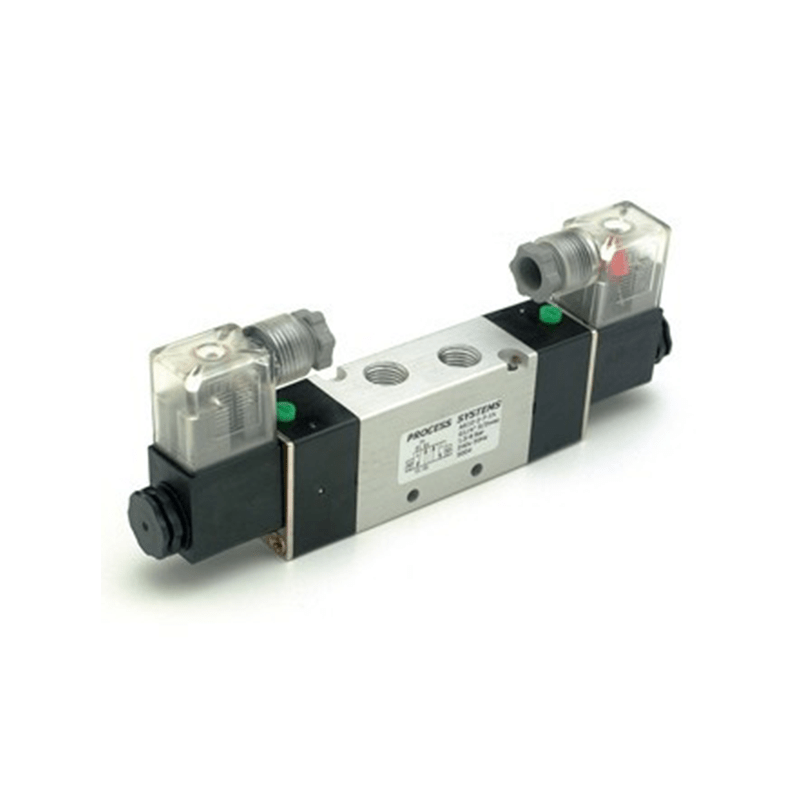

GO A610 5 Way 2 Position Double Solenoid Valves
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
5 way 2 position solenoid valve (solenoid both ends) suitable for use in controlling air actuators or cylinders. Standard features include manual override, led indicator plug (IP65), fully encapsulated low wattage coil. Can be mounted on manifolds of up to 12 stations.
Specifications
Aluminium 5 way 2 position differential solenoid/solenoid valve.G1/8", 5mm orifice, 304 SS operator, copper shading ring, NBR seat, man o/ride.1.5-8 BAR pressure range, media temp 5°C to 80°C.Coil Class F insulation, 4.8 Watts, IP65 protection.
| Model | Port Size (BSP) | Orifice ømm | CV | Pressure | Media Temperature | Weight Kg | Coil Specifications |
|---|---|---|---|---|---|---|---|
| A610-1-5-*NM | 1/8 | 5 | 0.67 | 1.5 to 8 Bar | 5°C to 80°C | 0.3 | SC-A1 5 Watts 6 Volt Amps Class H Insulation 100% Ed |
| A610-2-7-*NM | 1/4 | 7 | 2 | 1.5 to 8 Bar | 5°C to 80°C | 0.35 | |
| A610-3-7-*NM | 3/8 | 7 | 2 | 1.5 to 8 Bar | 5°C to 80°C | 0.35 | |
| A610-4-8-*NM | 1/2 | 8 | 2.8 | 1.5 to 8 Bar | 5°C to 80°C | 0.6 |
